Starter Motor Noise Diagnosis
Starter Motor Noise Diagnosis
DIAGNOSTIC AIDS
Inspect the flywheel ring gear for damage or unusual wear.

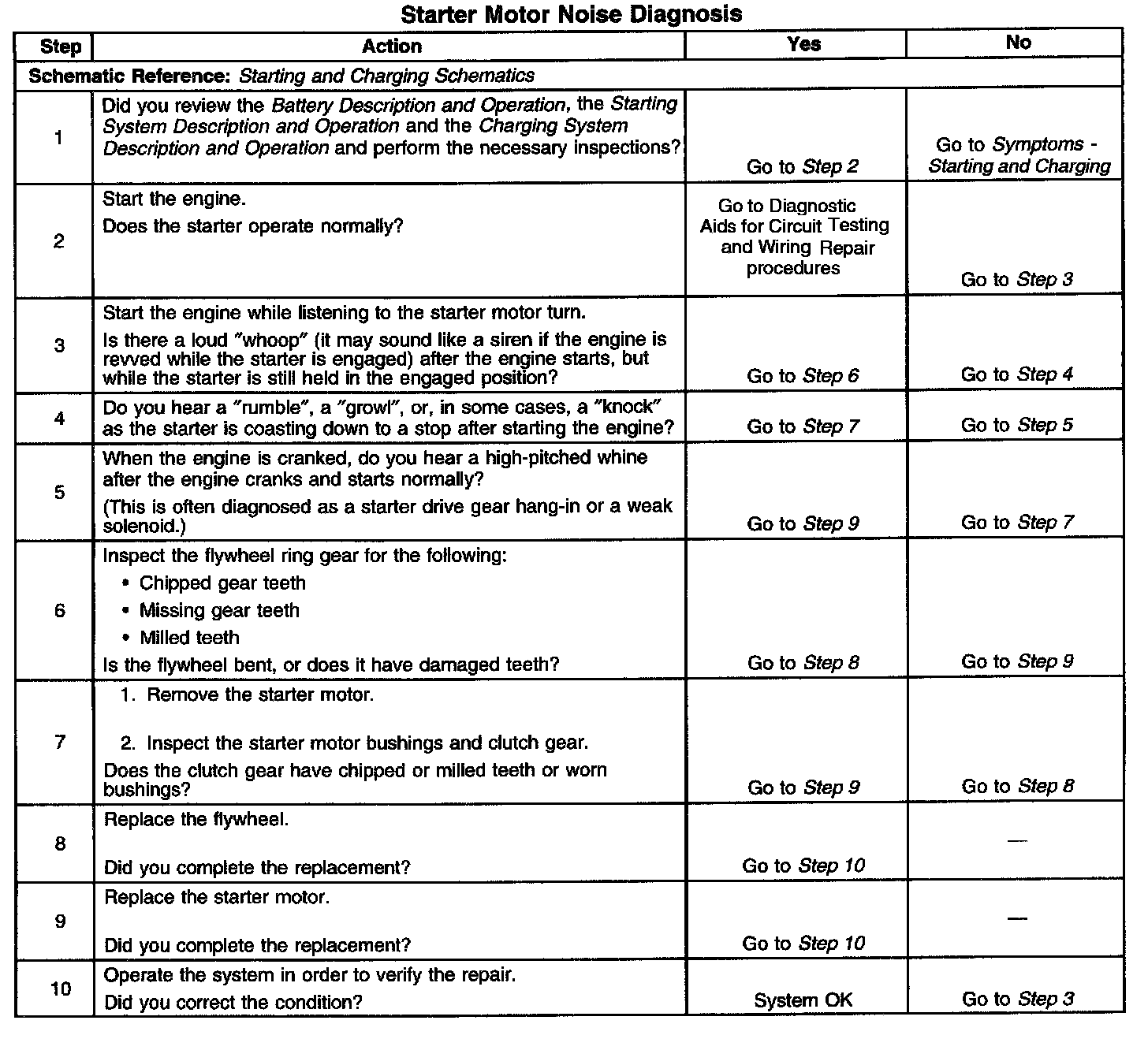

TEST
Steps 1-10:
