Home >> Chevrolet >> 2003 >> Cavalier L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Map Light >> Reading/Courtesy Lamp Switch

Reading/Courtesy Lamp Switch

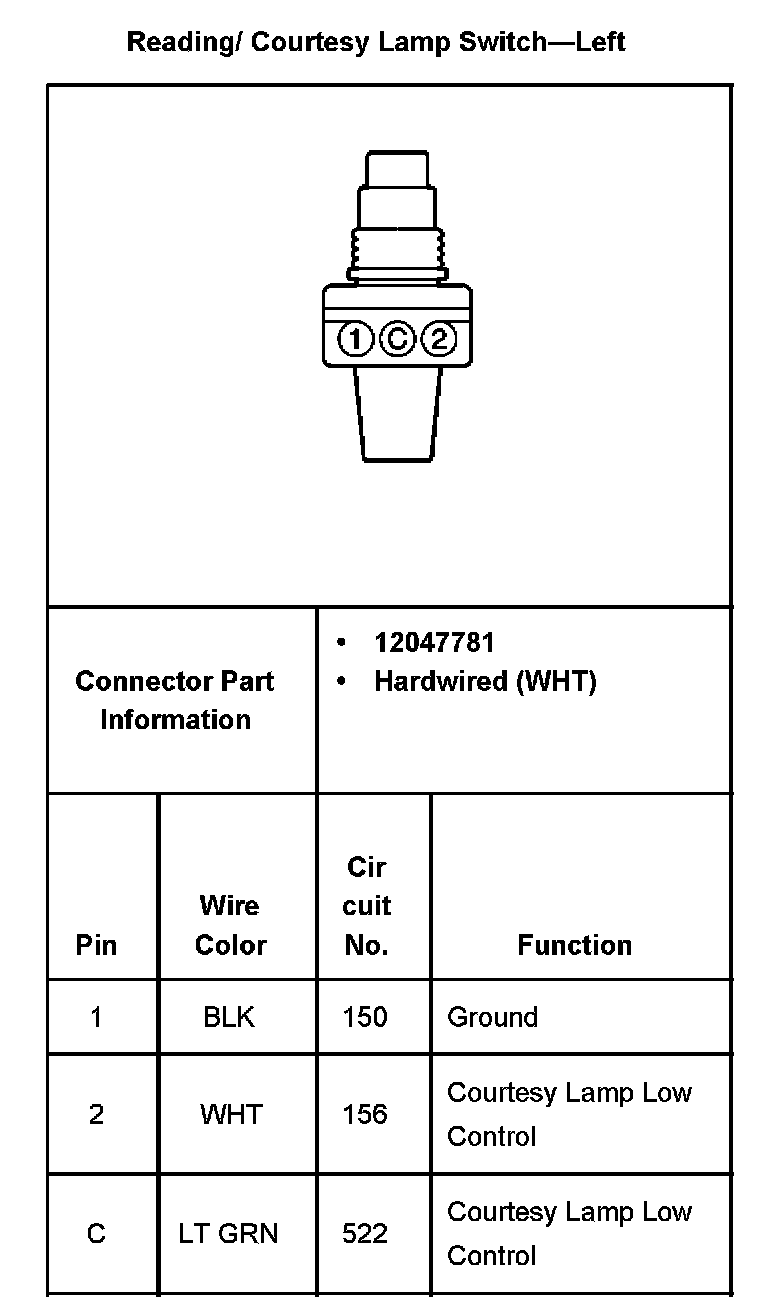

Reading/Courtesy Lamp Switch - Left:

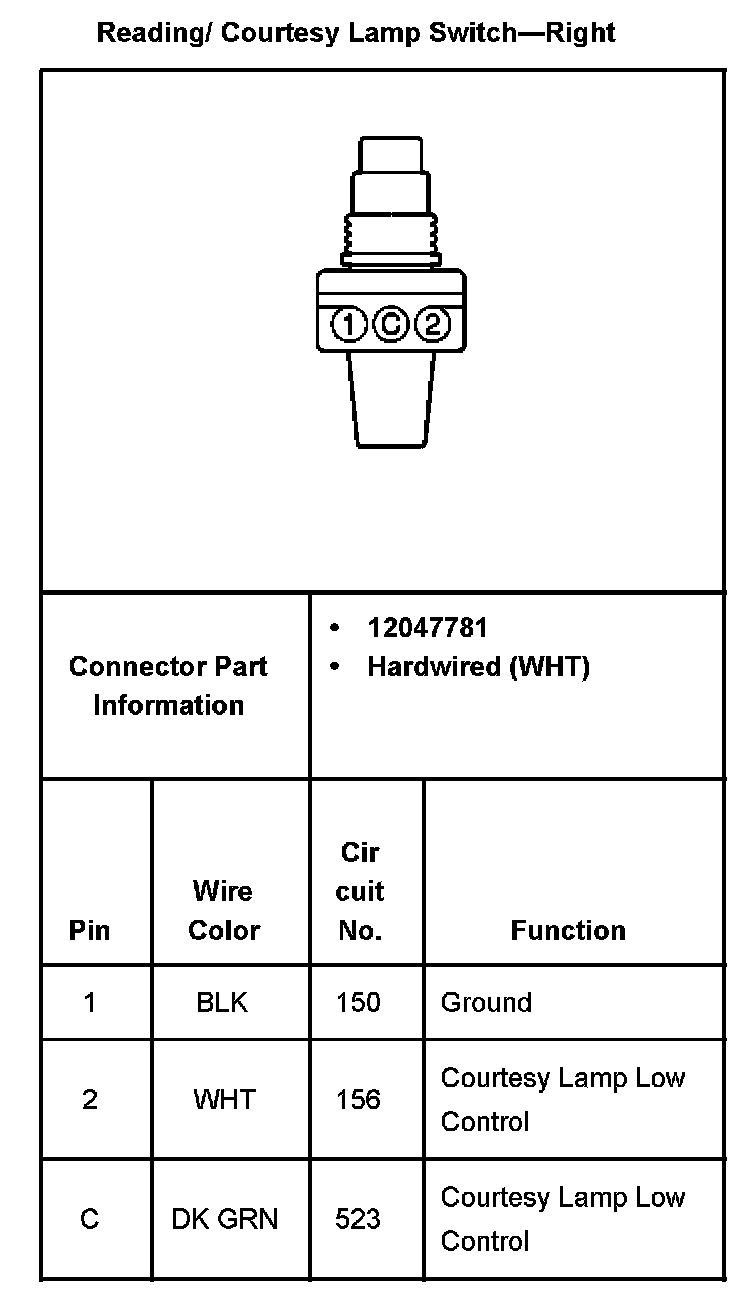

Reading/Courtesy Lamp Switch - Right:
