Instrument Panel (IP) - Trim Pad Replacement - Upper

TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P)

REMOVAL PROCEDURE
1. Disable the SIR system.

CAUTION: Refer to SIR Caution in Service Precautions.

2. Remove the defroster grille screw.




3. With a flat-bladed tool disengage the defroster grille from the instrument panel (I/P) trim pad.
4. With a flat-bladed tool disengage the outer trim covers from the I/P carrier.

Pull the cover rearward to disengage the locating tabs from I/P carrier.
5. Open the I/P compartment.

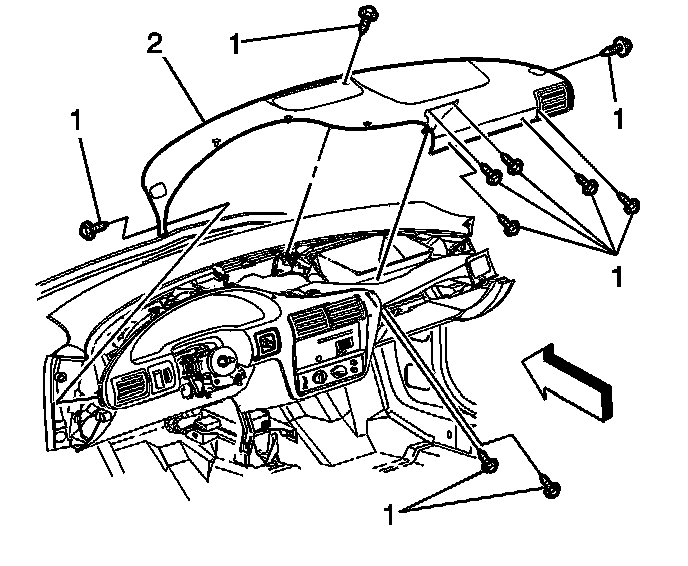

6. Remove the I/P trim pad screws (1).
7. Remove the I/P trim pad (2) from the I/P carrier.

INSTALLATION PROCEDURE




1. Install the I/P trim pad (2) to the I/P carrier.
2. Install the I/P trim pad screws (1).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 2.3 N.m (20 lb in).

3. Close the I/P compartment door.
4. Align the outer trim covers locating tabs into the I/P carrier.

Press the cover into the I/P carrier until fully engaged.
5. Install the defroster grille to the I/P trim pad.
6. Install the defroster grille screw.

Tighten
Tighten the screw to 2.3 N.m (20 lb in).

7. Enable the SIR system.
