High Mounted Stop Lamp Replacement (Rear Spoiler)

HIGH MOUNTED STOP LAMP REPLACEMENT (REAR SPOILER)

REMOVAL PROCEDURE

IMPORTANT: The high mounted stop lamp bulbs are not serviceable. The high mounted stop lamp must be replaced as a unit.




1. Open the rear compartment.
2. Disconnect the electrical connector from the high mounted stop lamp.

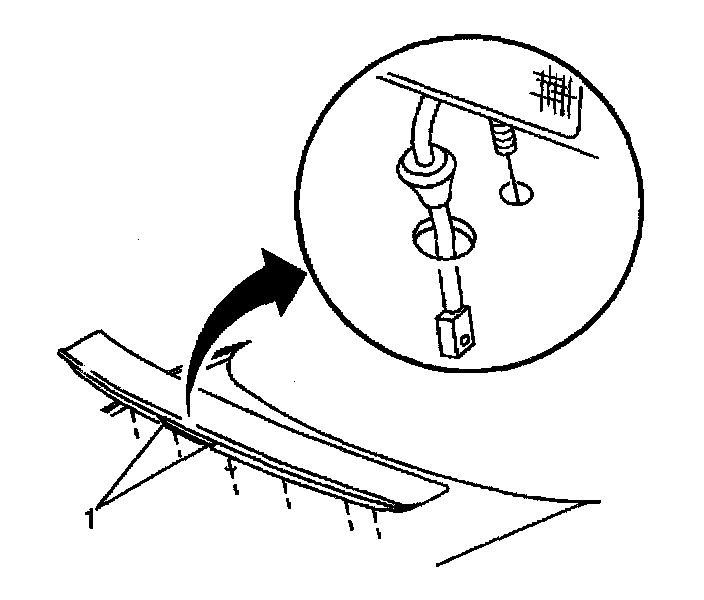

3. Remove the screws (1) from the high mounted stop lamp.
4. Remove the high mounted stop lamp from the rear spoiler, pulling the wiring harness from the rear compartment lid.

INSTALLATION PROCEDURE




1. Install the wiring harness to the rear compartment lid.
2. Install the high mounted stop lamp to the rear spoiler.
3. Install the screws (1) to the high mounted stop lamp.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the high mounted stop lamp screws to 2 N.m (18 lb in).

4. Connect the electrical connector to the high mounted stop lamp.
5. Close the rear compartment.
