Fog Lamp Replacement - Front
FOG LAMP REPLACEMENT - FRONTREMOVAL PROCEDURE
CAUTION: Refer to Halogen Bulb Caution in Service Precautions.
1. Partially remove the front edge of the front fender liner to gain access to the fog lamps.
2. Remove the fog lamp bulb/socket from the fog lamp.

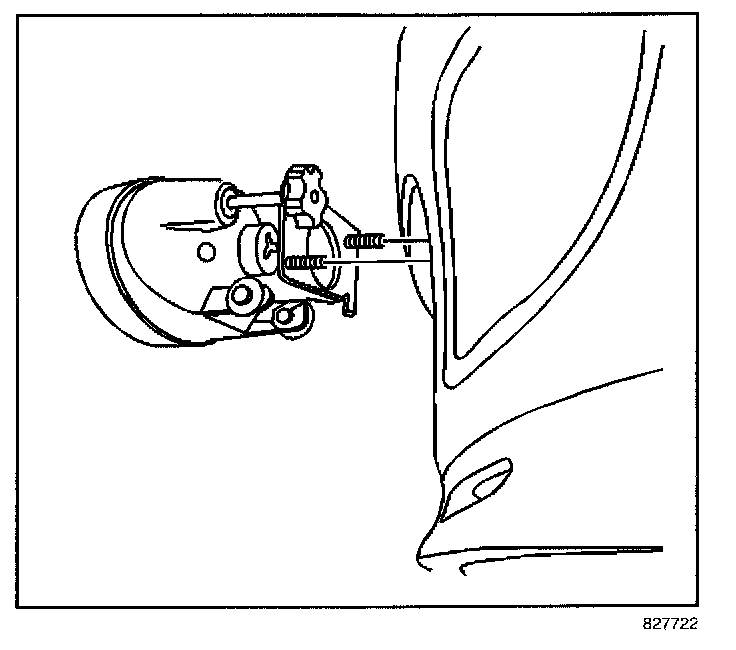

3. Remove the nuts (2) from the fog lamp.
4. Remove the fog lamp from the front bumper fascia.
INSTALLATION PROCEDURE
1. Position the fog lamp to the front bumper fascia.
2. Install the fog lamp nuts (2) to the fog lamp.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the nuts to 6 N.m (53 lb in).
3. Install the fog lamp bulb/socket to the fog lamp.
4. Install the front fender liner.
