Intrument Panel
Intrument Panel

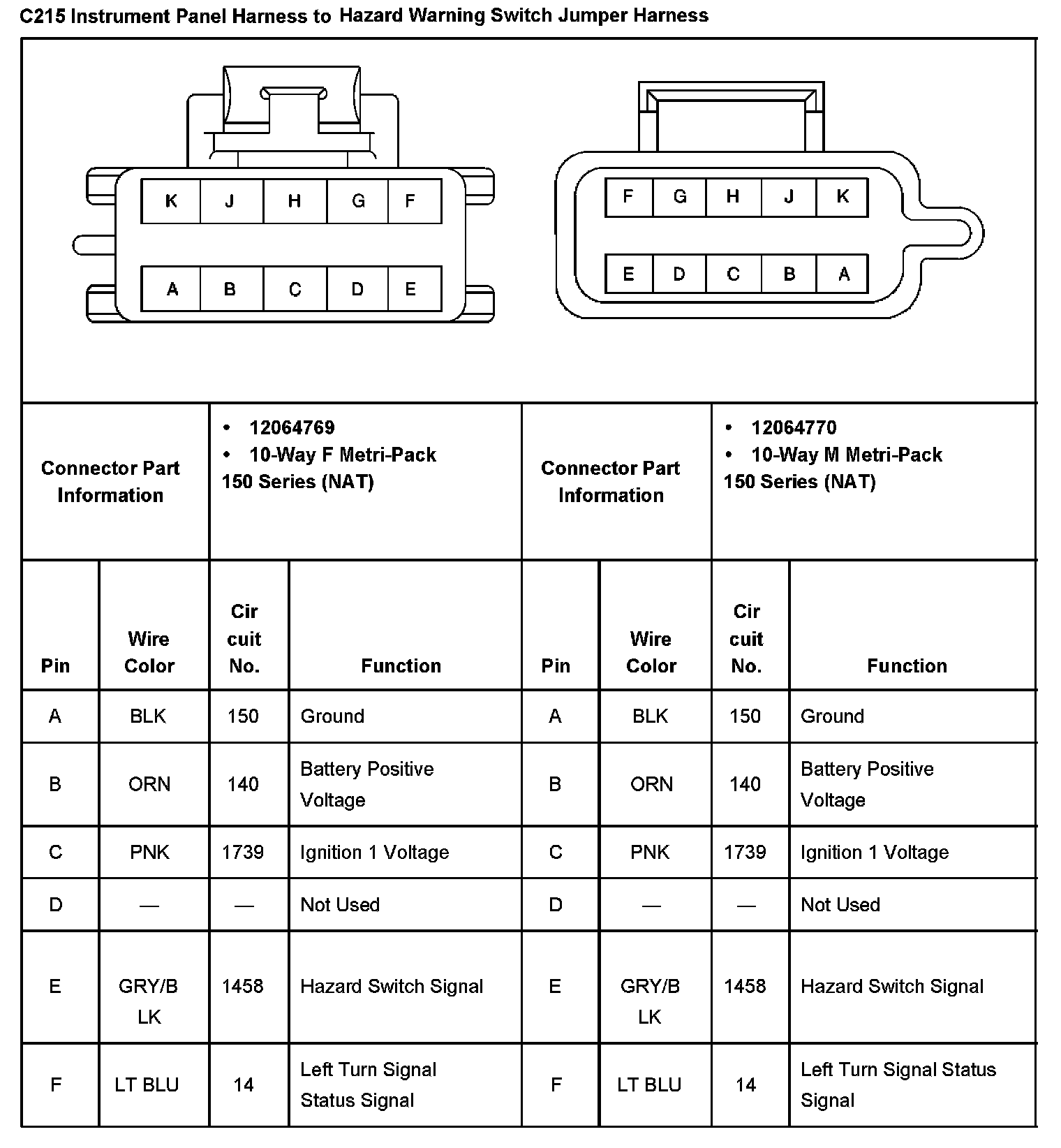

C215 Instrument Panel Harness To Hazard Warning Switch Jumper Harness Part 1:
C215 Instrument Panel Harness To Hazard Warning Switch Jumper Harness Part 2:
