Grille: Service and Repair

Fascia Grille Replacement

Removal Procedure




1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the front brake caliper cooling duct.

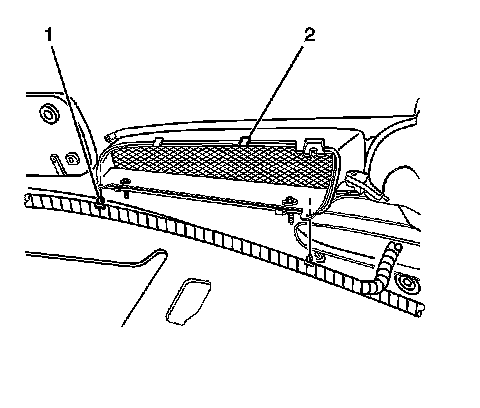

3. Remove the wiring harness' retainer clips (1).
4. Remove the clips at the top of the fascia grille (2).
5. Remove the fascia grille screws.




6. Remove the fascia grille through the front of the fascia opening.

Installation Procedure




1. Install the fascia grille through the front of the fascia opening.






Notice: Refer to Fastener Notice in Service Precautions.

2. Install the fascia grille screws.

Tighten the fascia grille screws to 2 N.m (18 lb in).

3. Install the clips at the top of the fascia grille (2).
4. Install the wiring harness' retaining clips (1).
5. Install the front brake caliper cooling duct.
6. Lower the vehicle.
