Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2003
>>
Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Accelerator Pedal Position Sensor
Accelerator Pedal Position Sensor

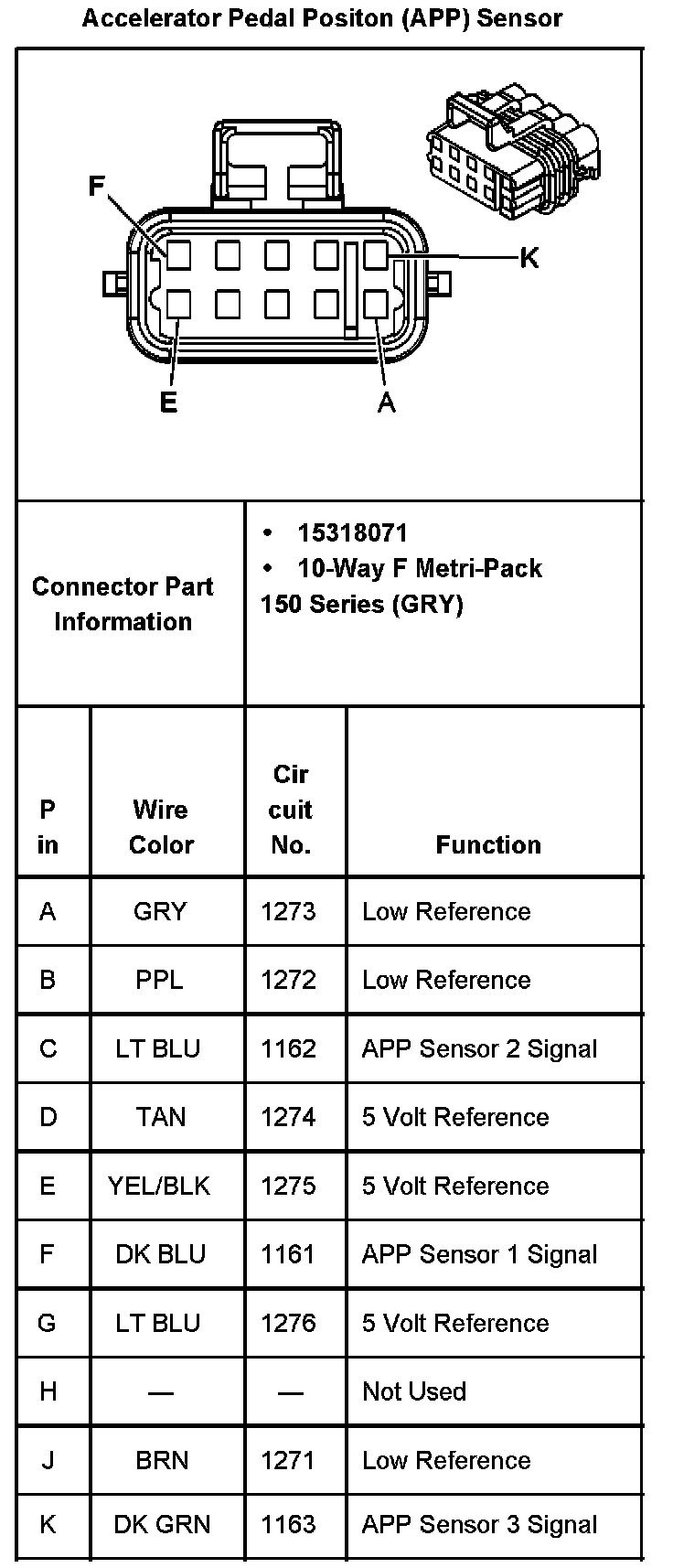

Accelerator Pedal Positon (APP) Sensor:
