C102 Instrument Panel Harness to Forward Lamp Harness
C102 Instrument Panel Harness to Forward Lamp Harness

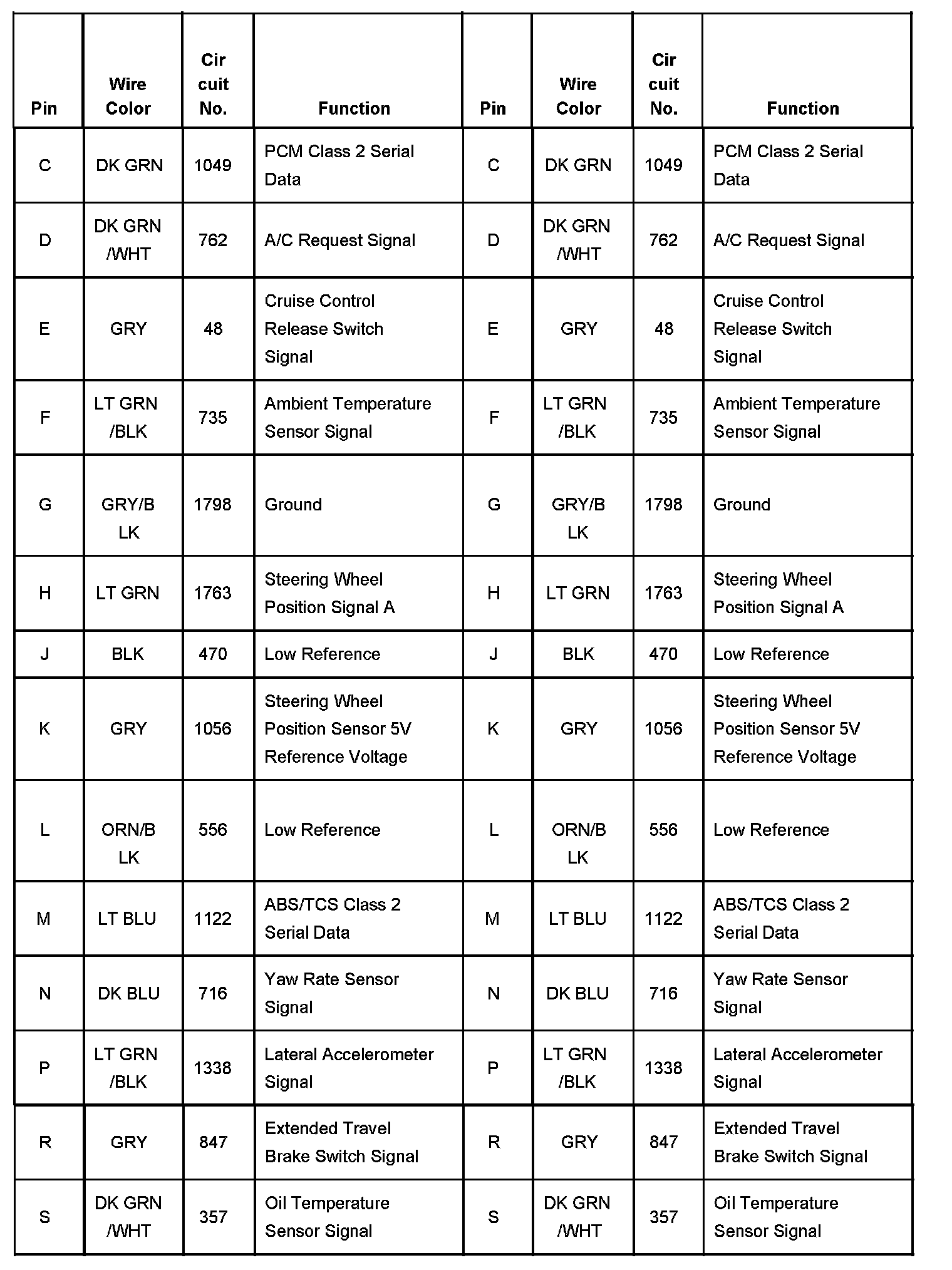

C102 Instrument Panel Harness To Forward Lamp Harness, Part 1:
C102 Instrument Panel Harness To Forward Lamp Harness, Part 2:
