C140 With RPO Code F55 Trans Harness to Forward Lamp Harness
C140 With RPO Code F55 Trans Harness to Forward Lamp Harness

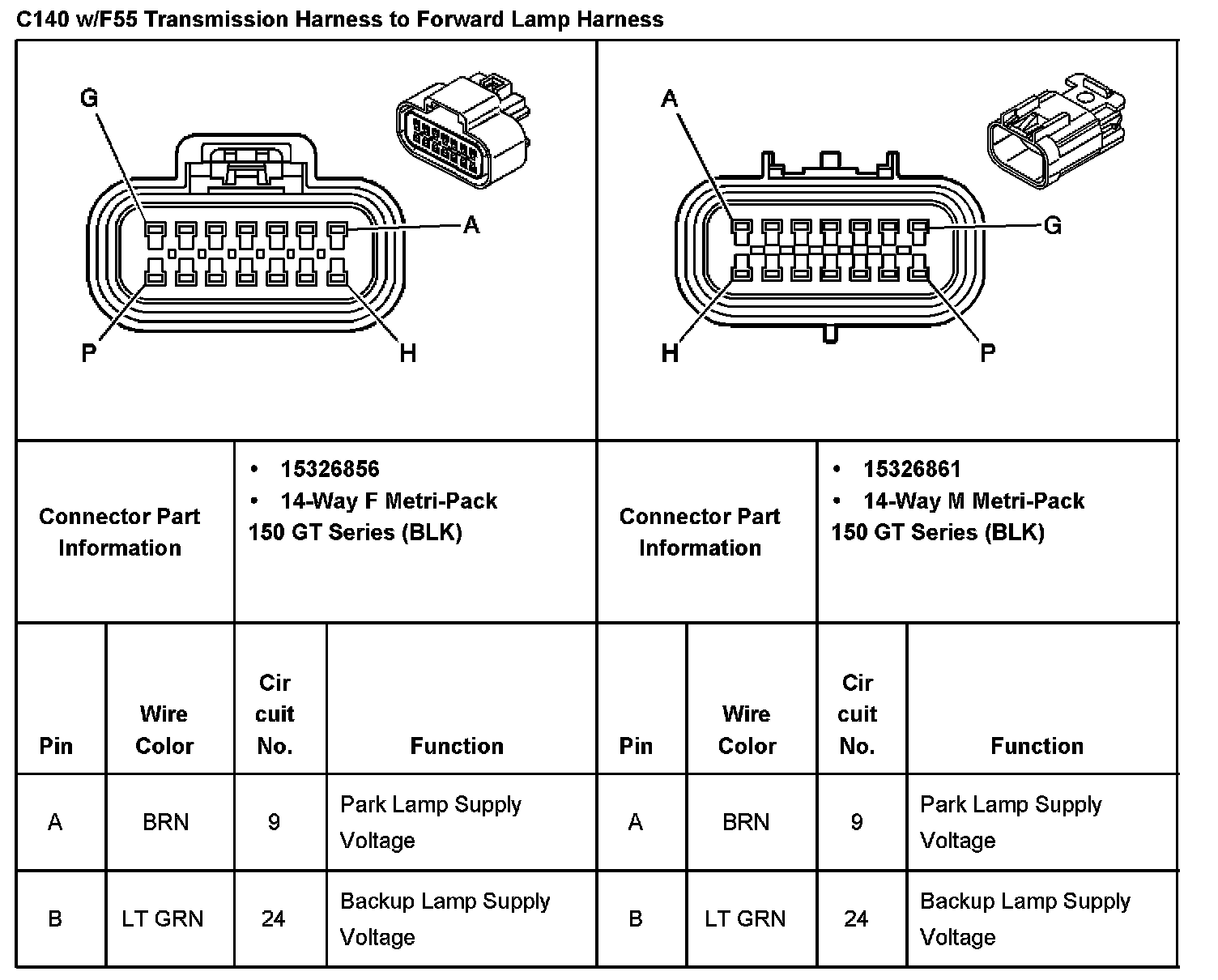

C140 With RPO Code F55 Transmission Harness To Forward Lamp Harness Part 1:

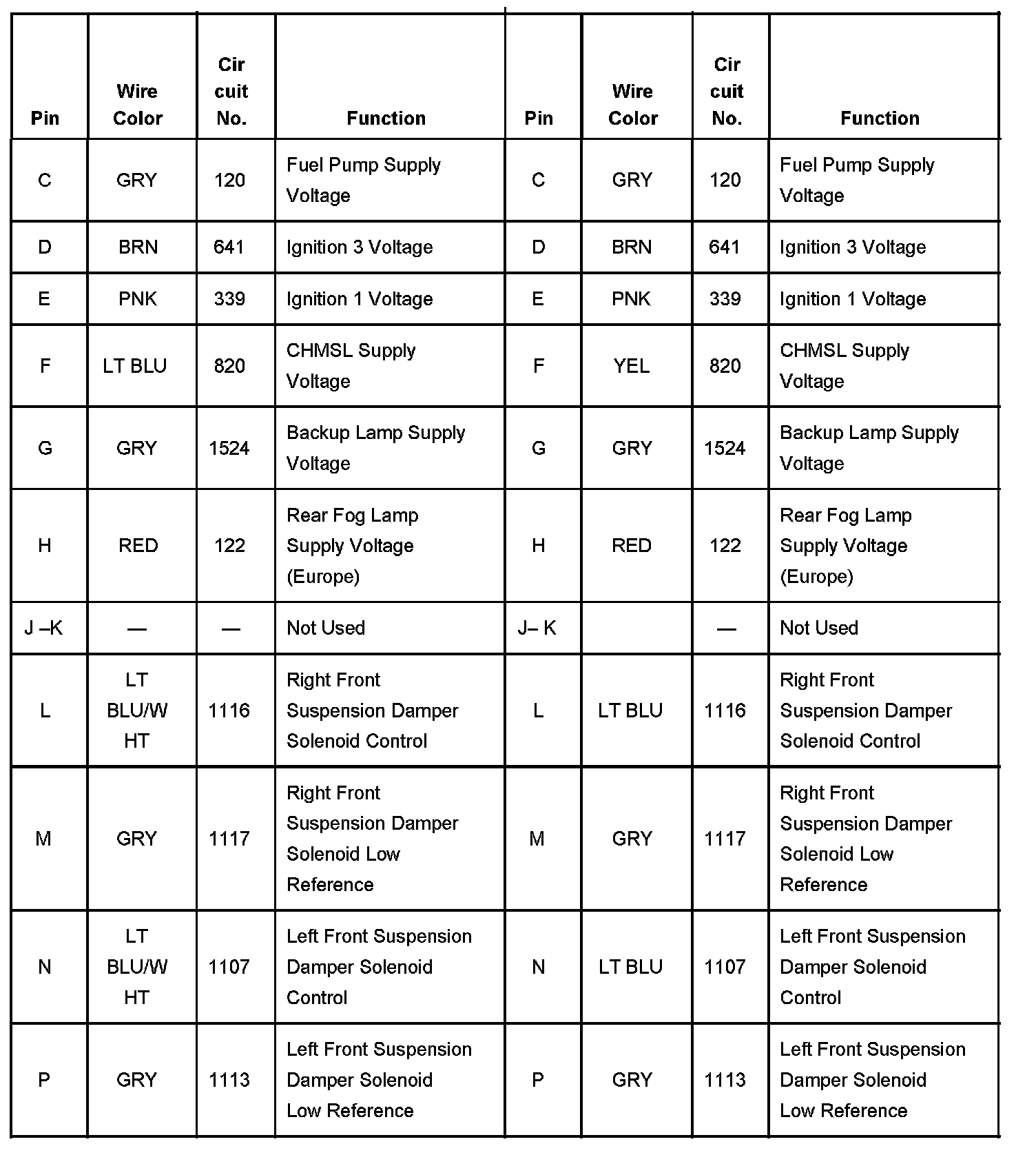

C140 W/F55 Transmission Harness To Forward Lamp Harness Part 2:
