C301 Instrument Panel Harness to Drivers Seat Harness
C301 Instrument Panel Harness to Drivers Seat Harness

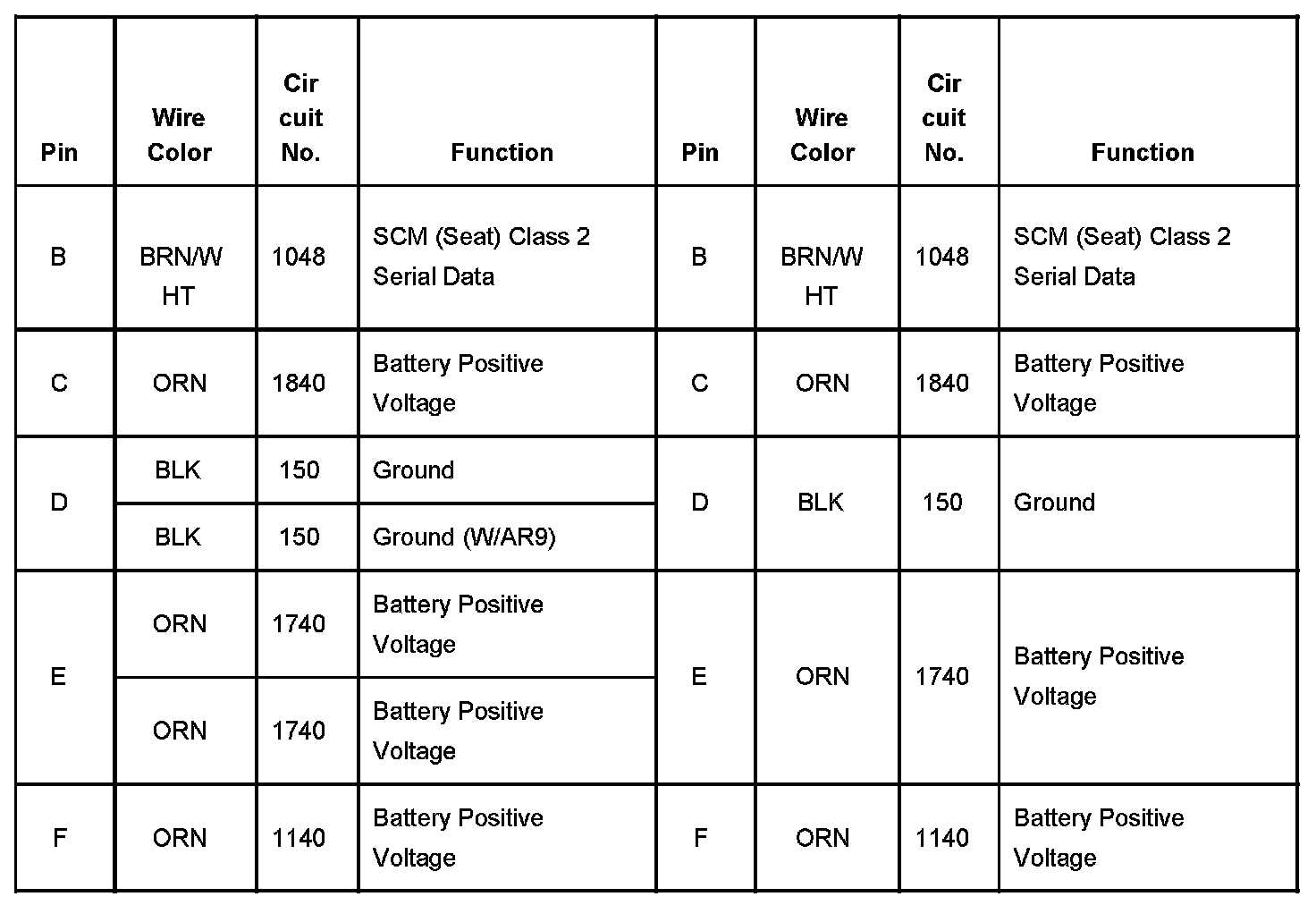

C301 Instrument Panel Harness To Drivers Seat Harness Part 1:
C301 Instrument Panel Harness To Drivers Seat Harness Part 2:
