C303 Instrument Panel Harness to Drivers Seat Harness
C303 Instrument Panel Harness to Drivers Seat Harness

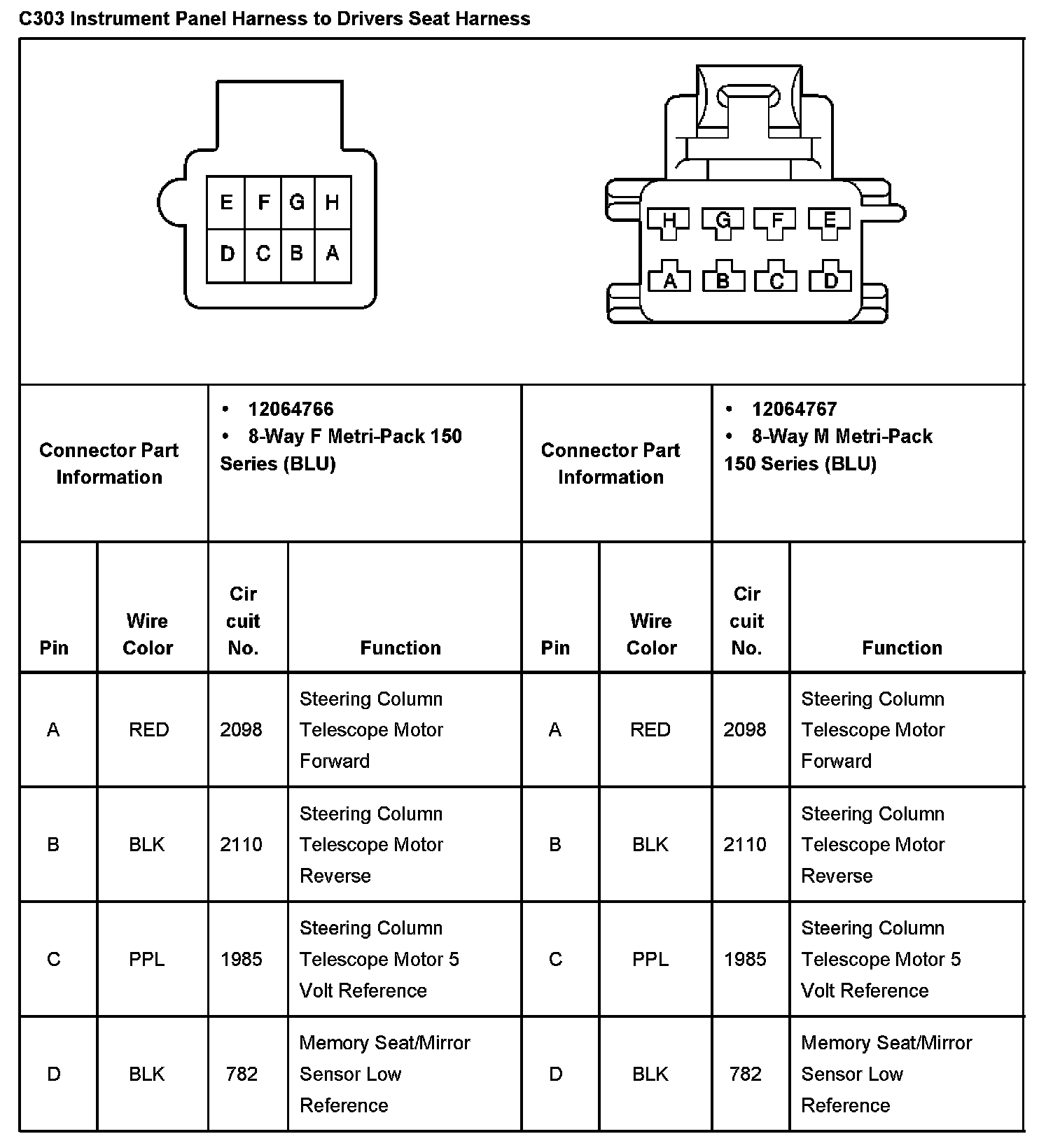

C303 Instrument Panel Harness To Drivers Seat Harness Part 1:

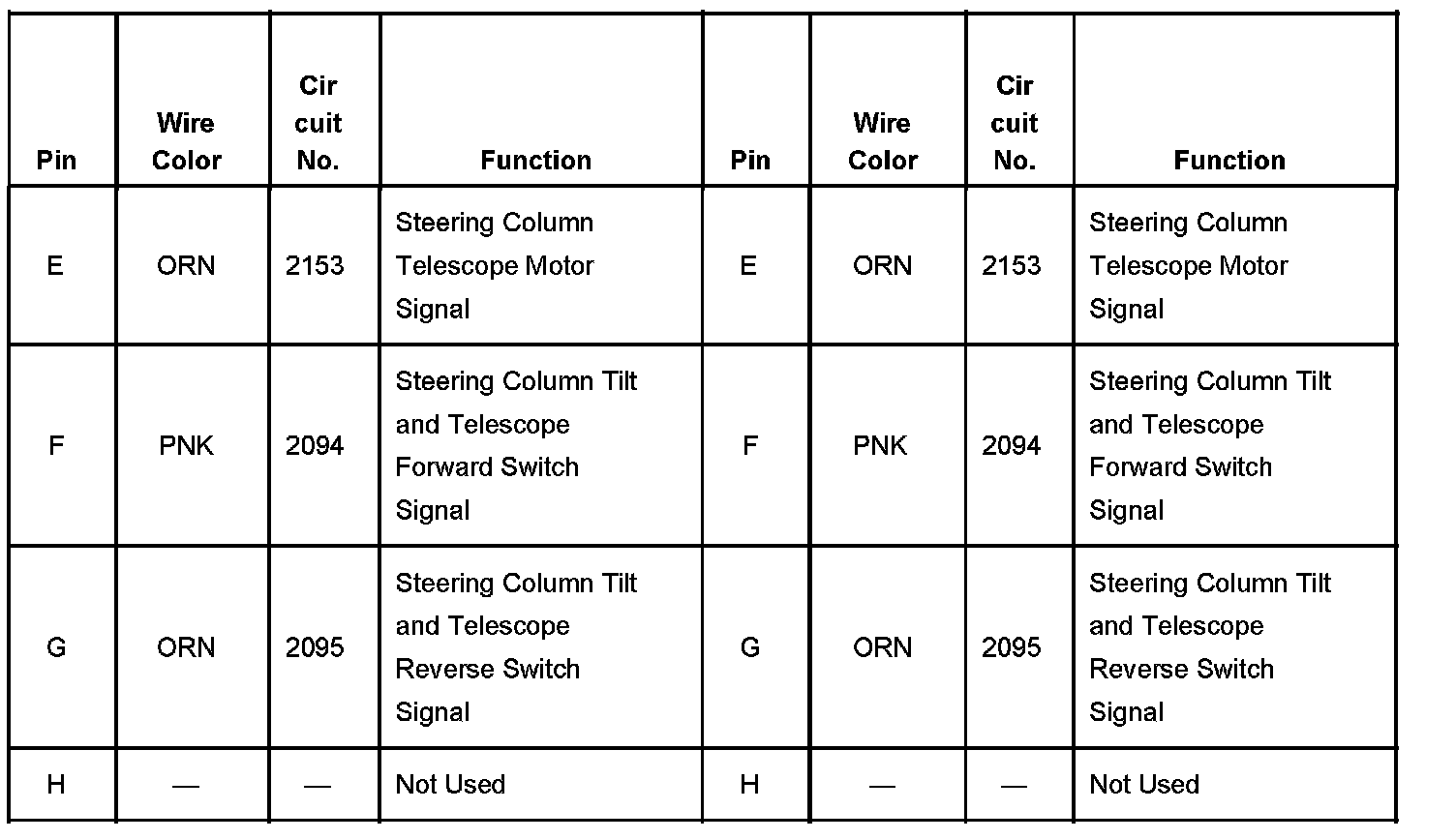

C303 Instrument Panel Harness To Drivers Seat Harness Part 2:
