HVAC System - Automatic
HVAC System - Automatic

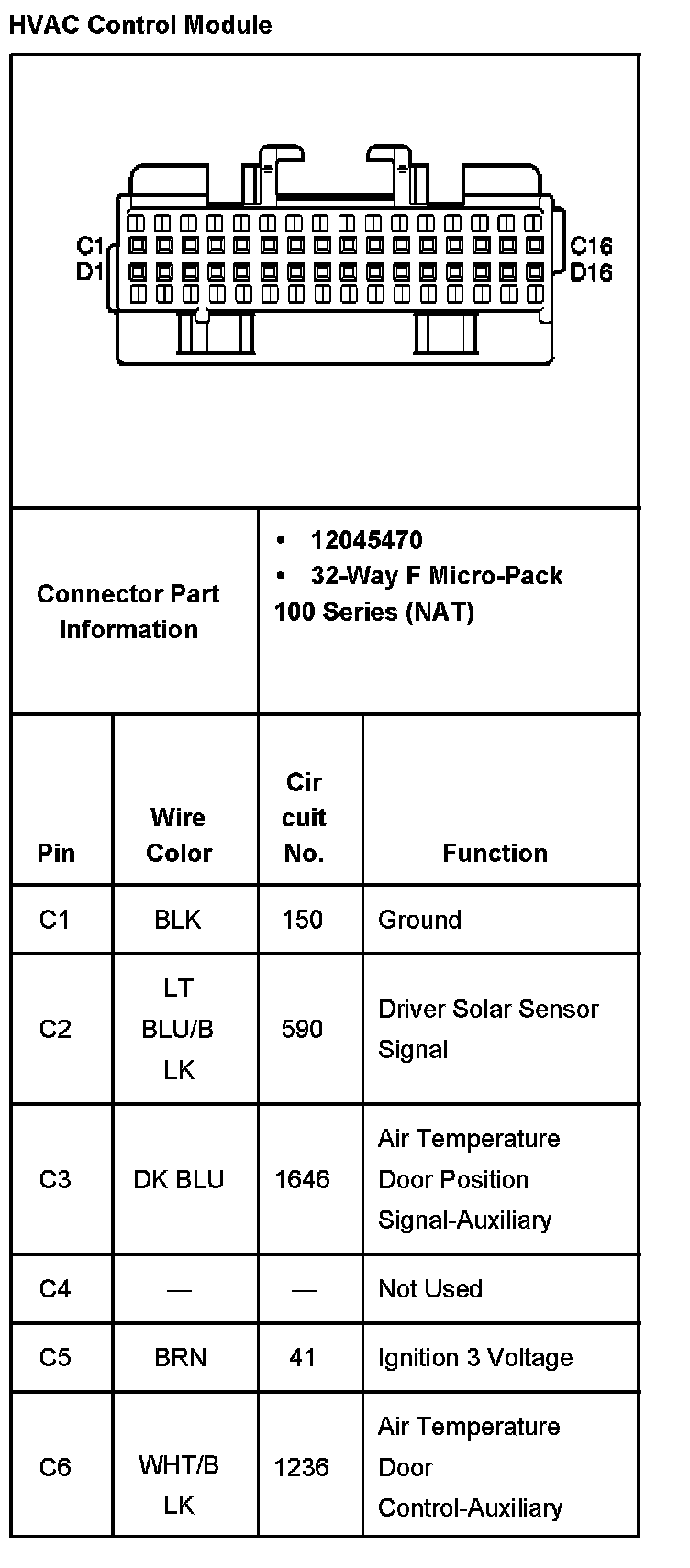

HVAC Control Module Part 1 (w/Automatic - HVAC System):

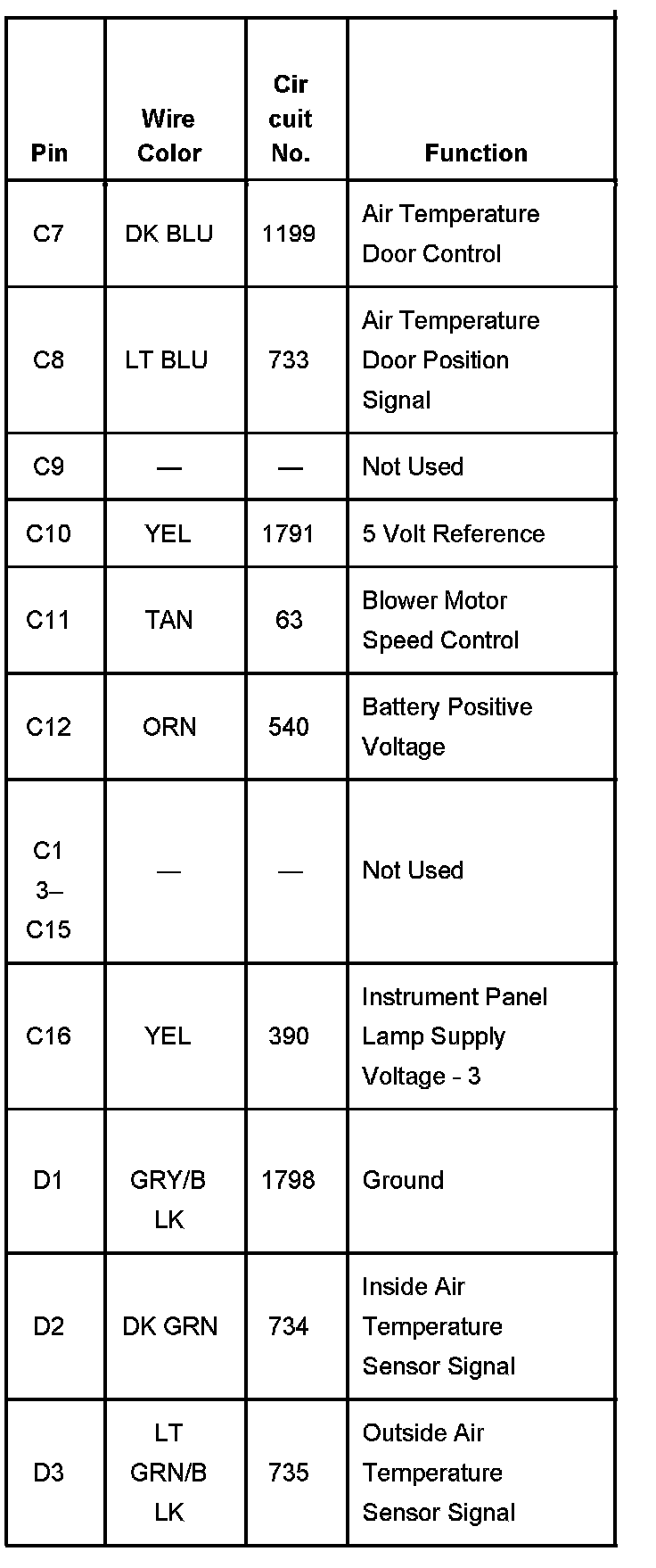

HVAC Control Module Part 2 (w/Automatic - HVAC System):
HVAC Control Module Part 3 (w/Automatic - HVAC System):
