Power Seat Motor

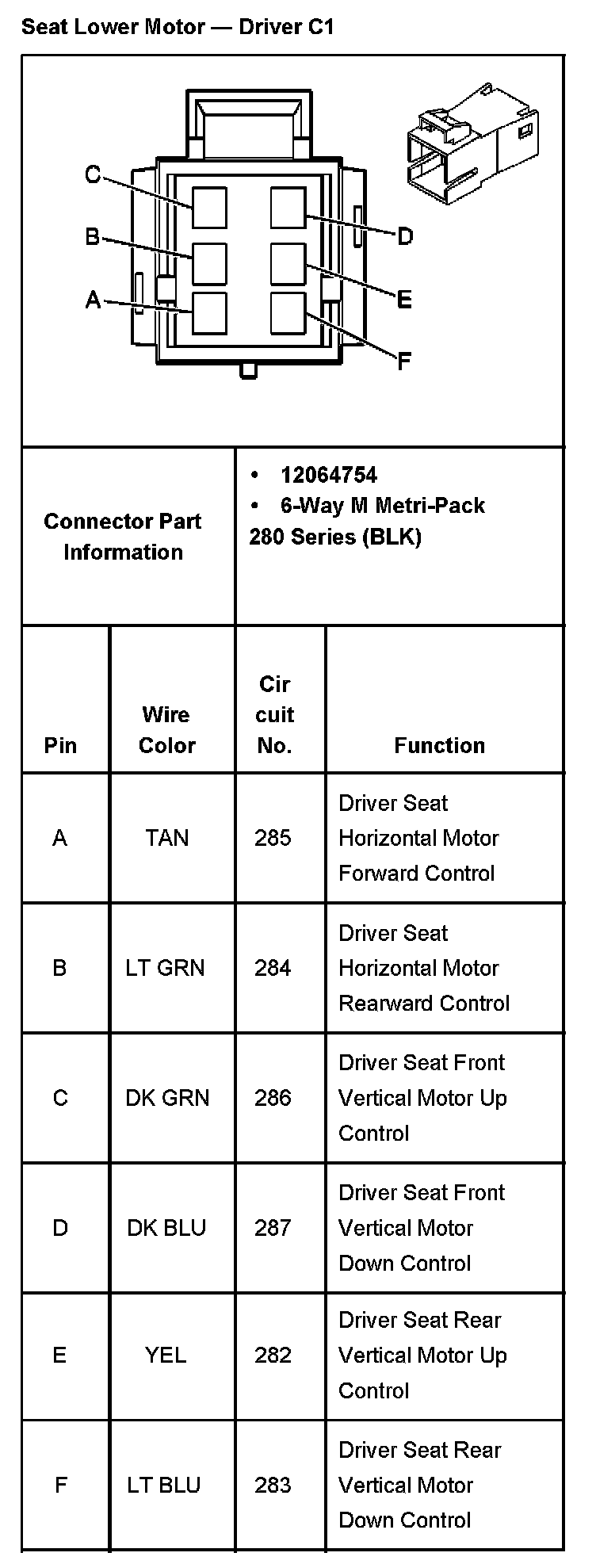

Seat Lower Motor-Driver C1:

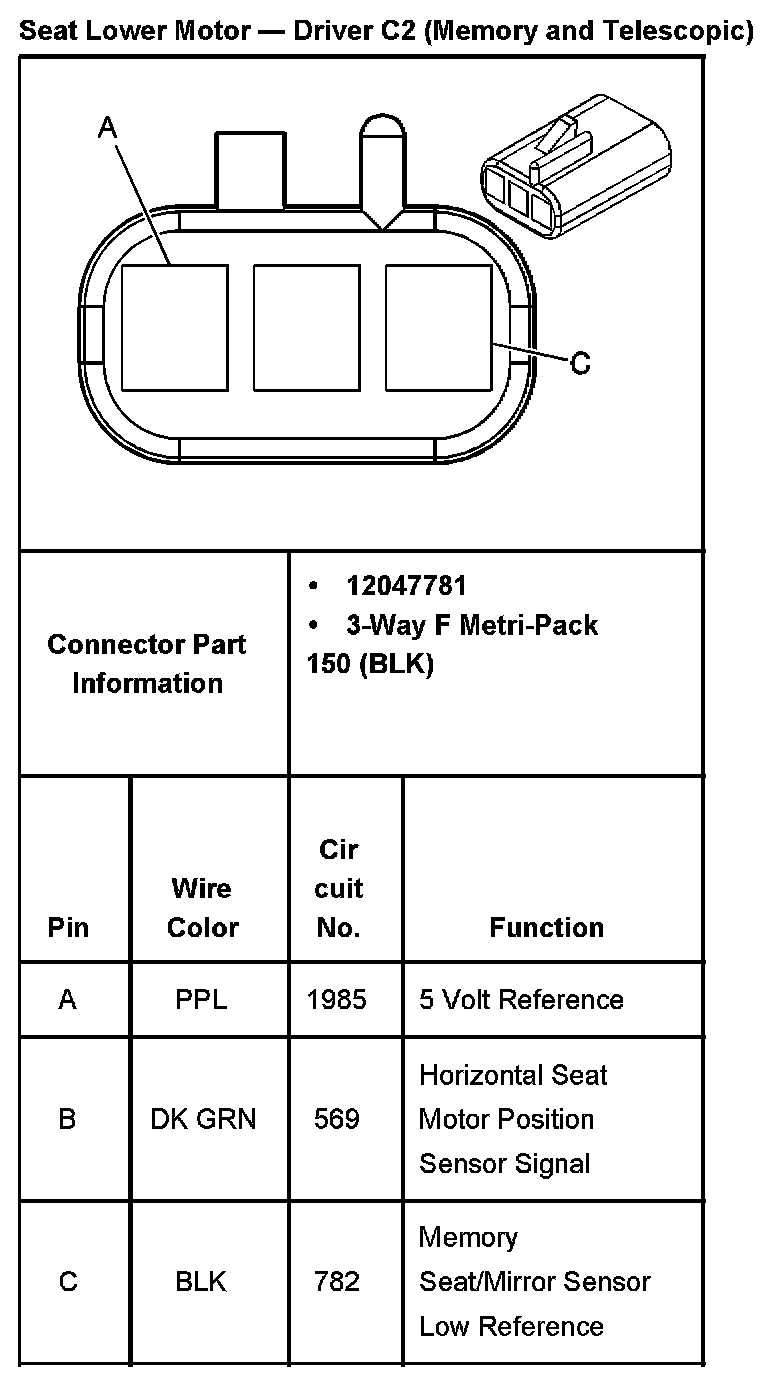

Seat Lower Motor-Driver C2 (Memory And Telescopic):

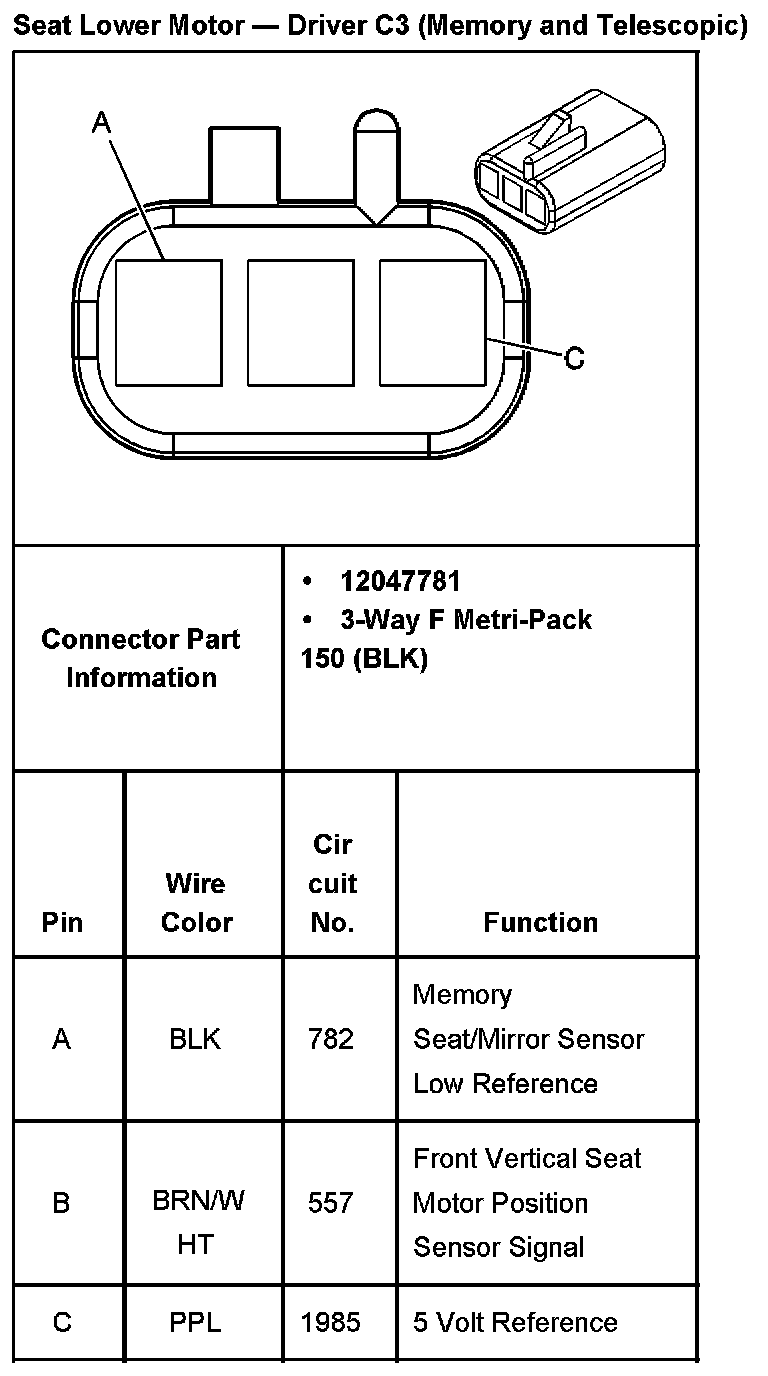

Seat Lower Motor-Driver C3 (Memory And Telescopic):

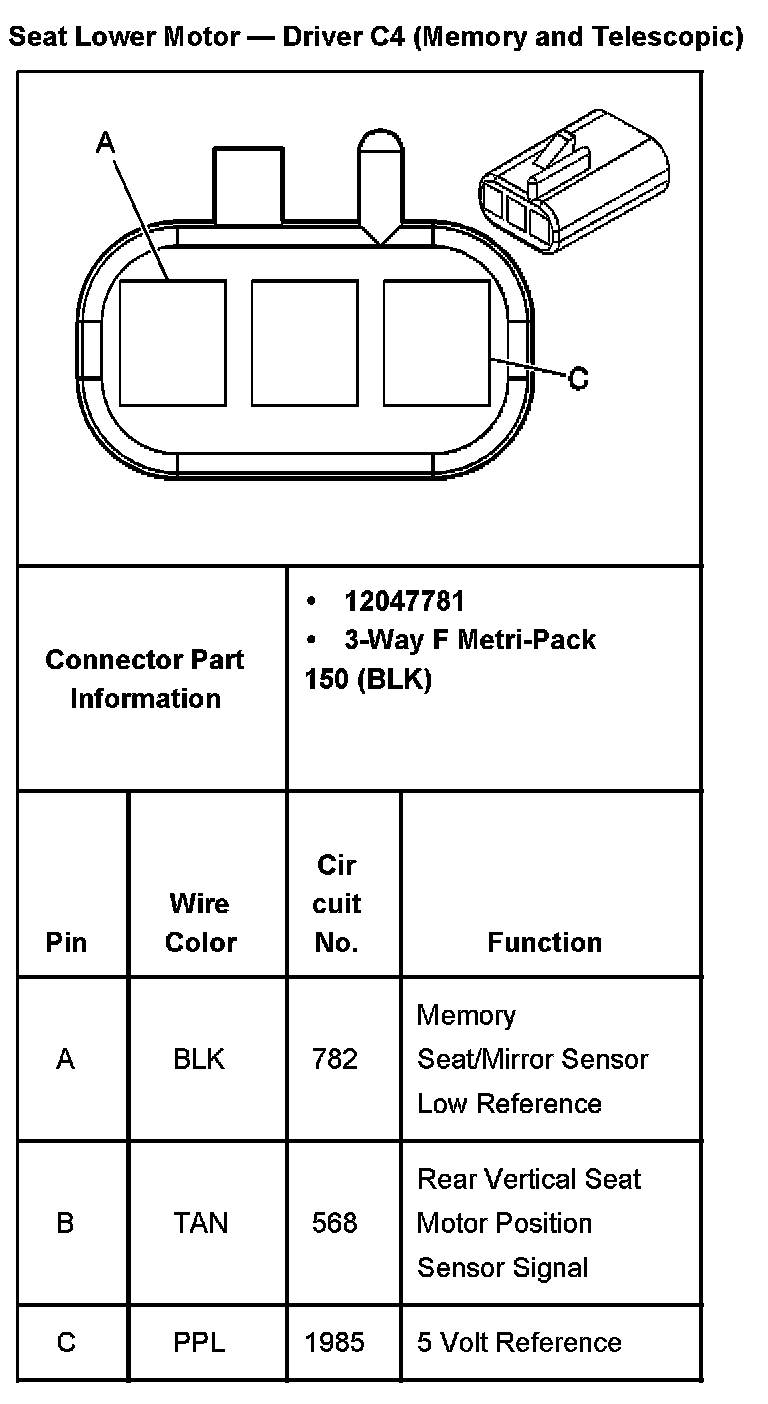

Seat Lower Motor-Driver C4 (Memory And Telescopic):

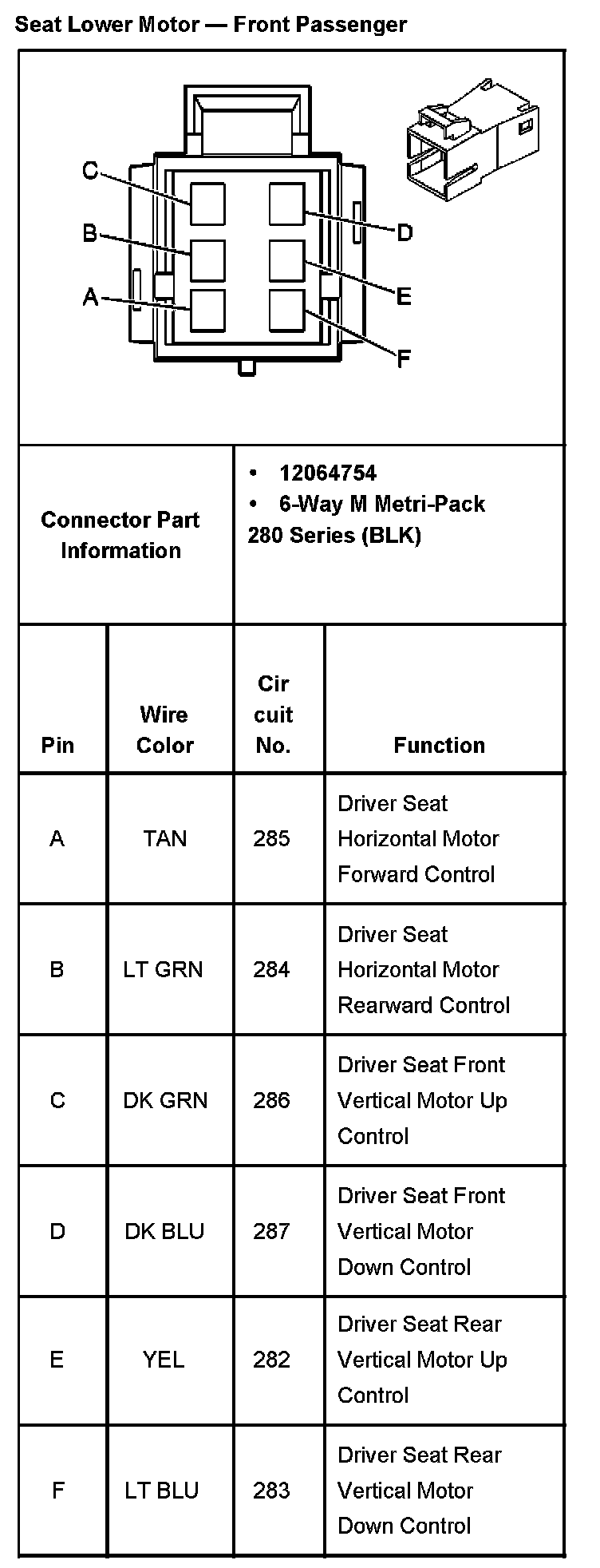

Seat Lower Motor-Front Passenger:
