Steering Mounted Controls Transmitter

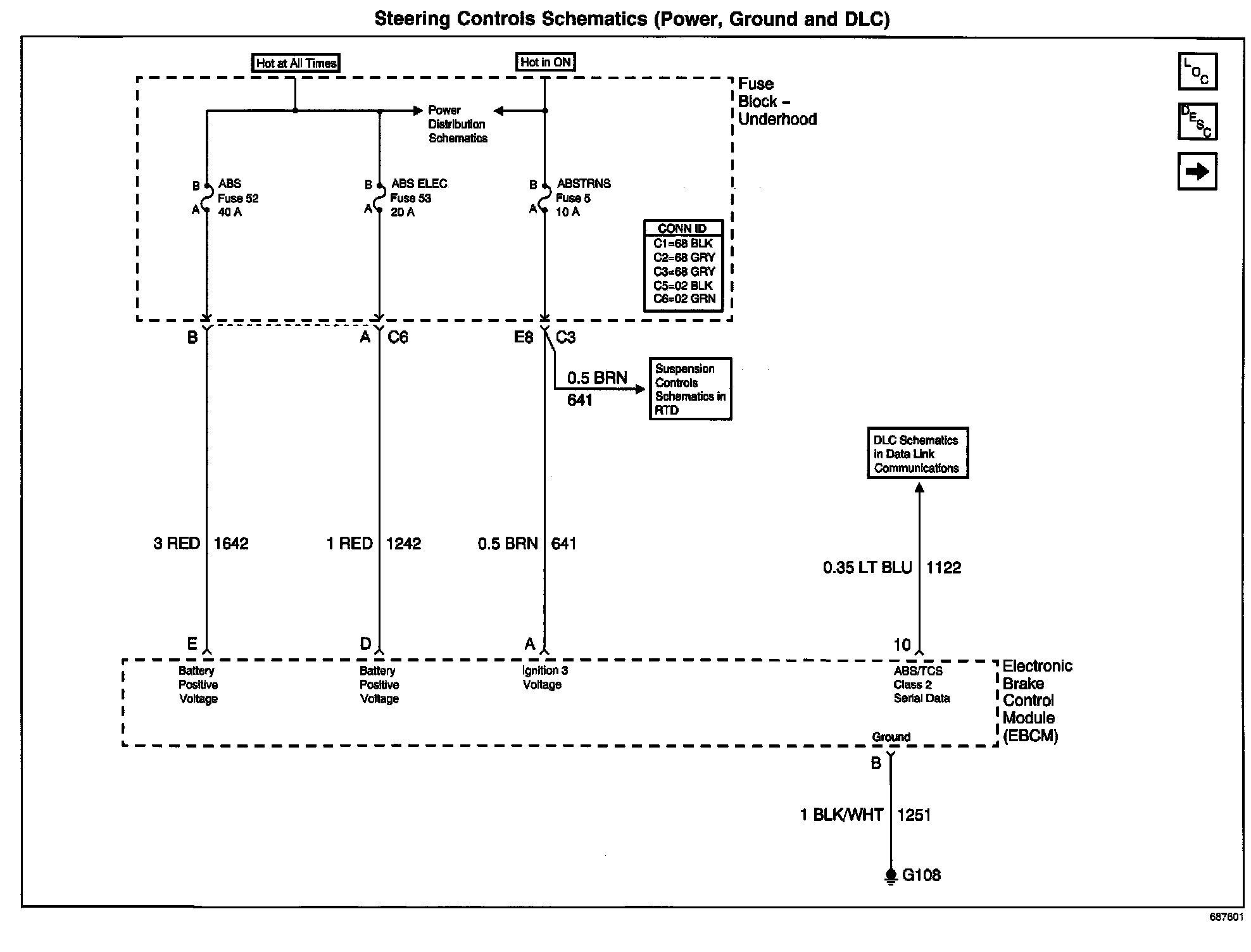

Steering Controls Schematics: Power, Ground And DLC:

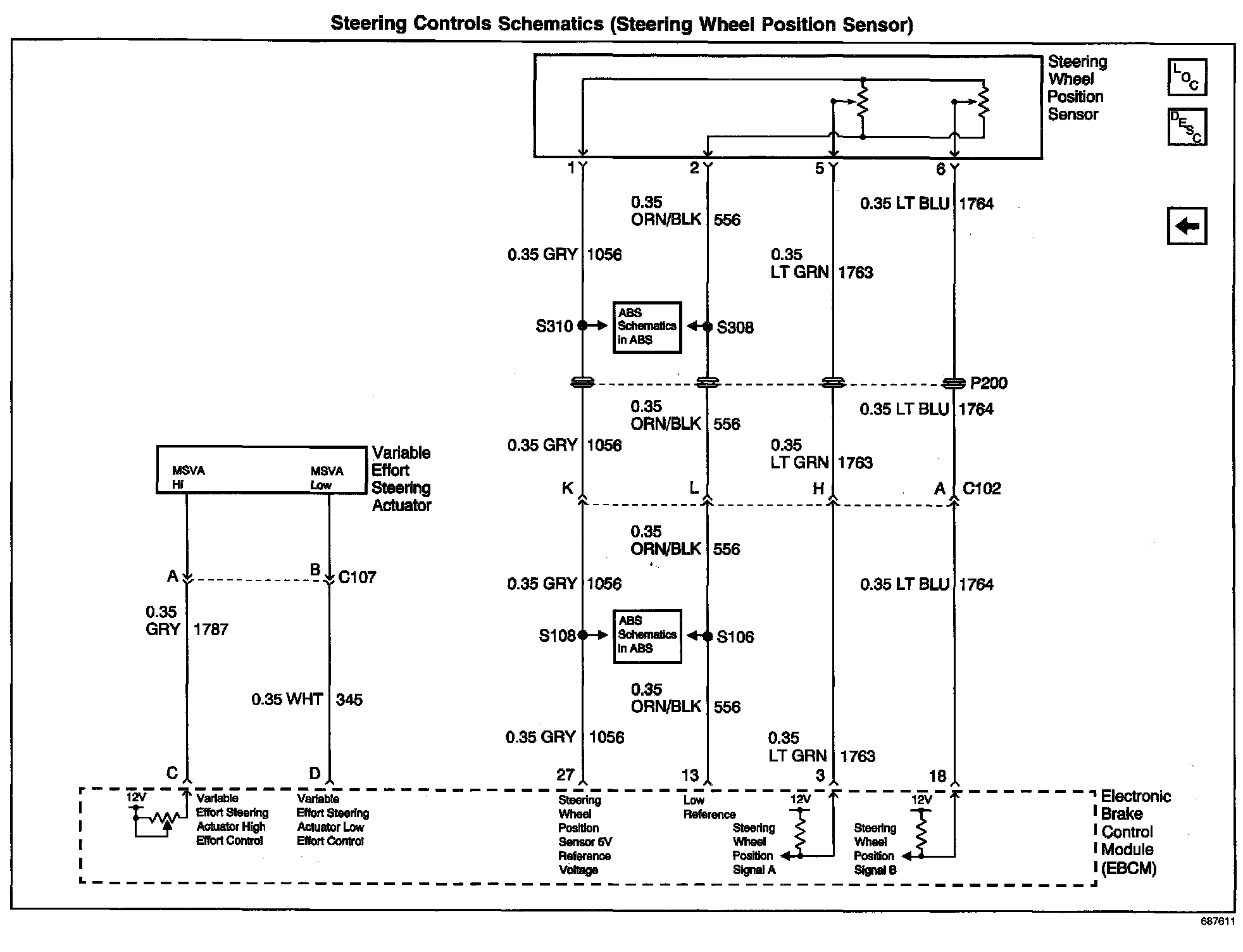

Steering Controls Schematics: Steering Wheel Position Sensor:
