Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2003
>>
Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Case and Associated Parts
Case and Associated Parts

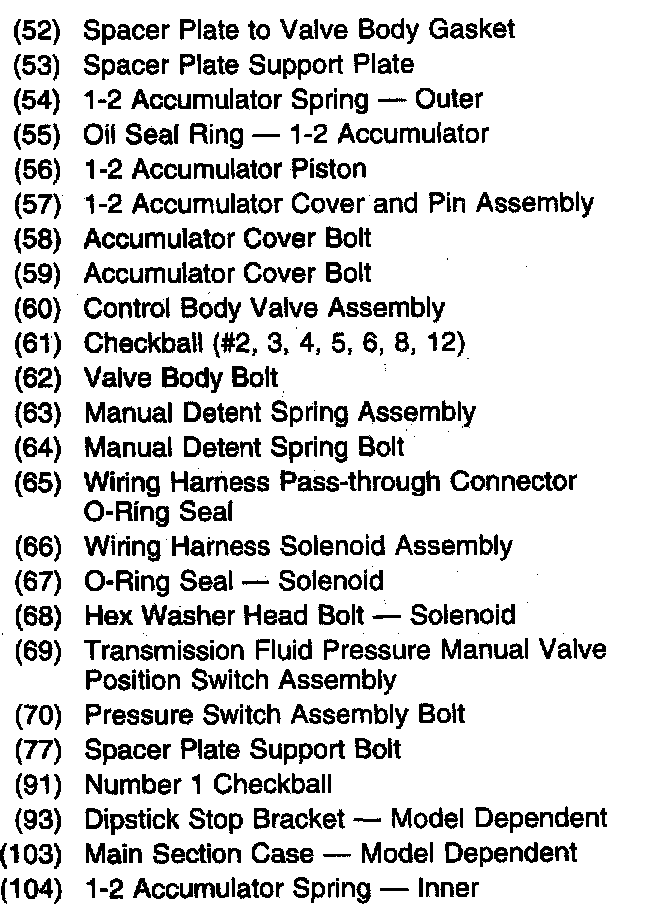

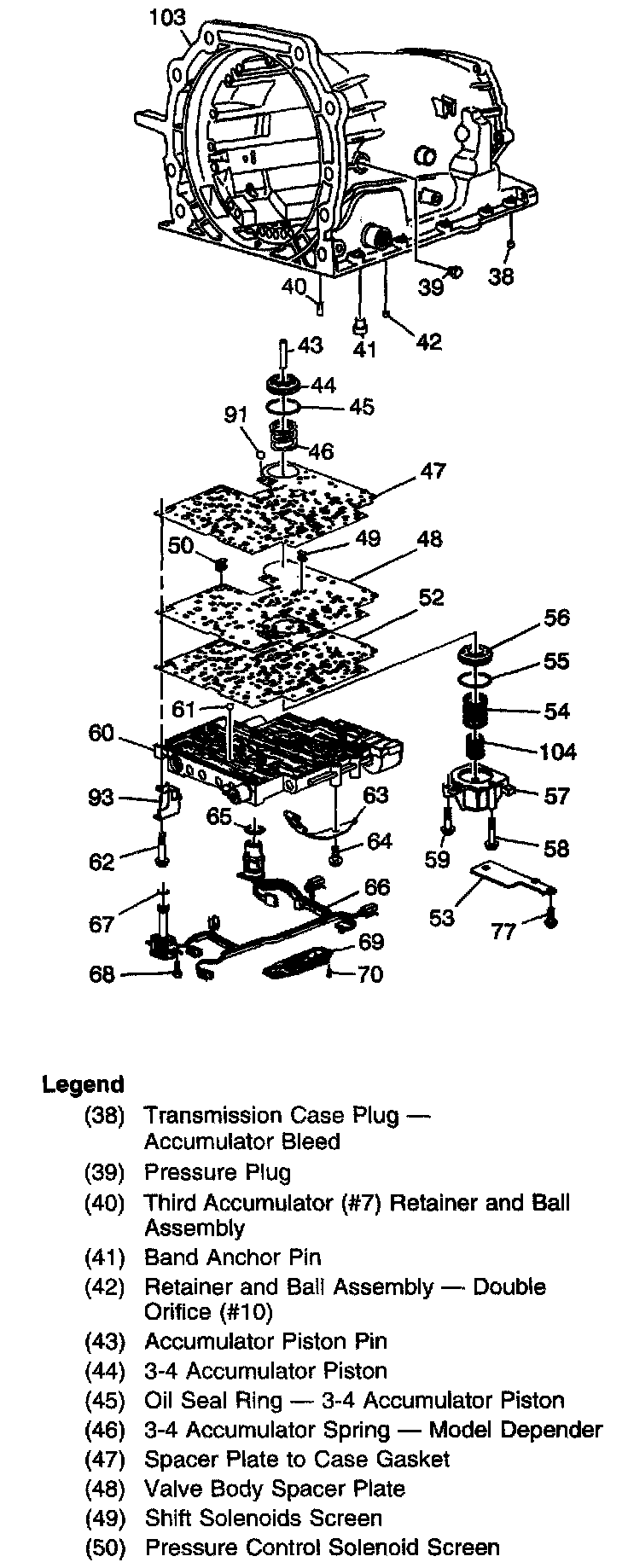

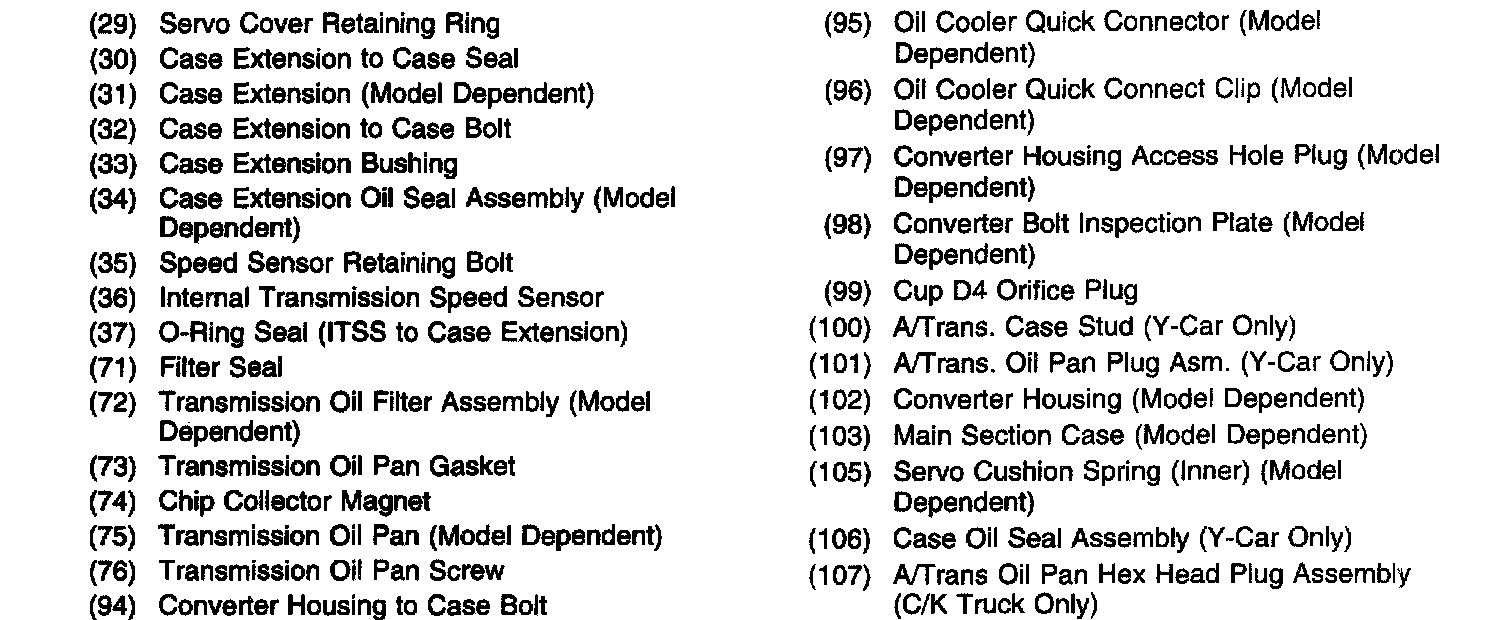

Case and Associated Parts (1 of 4):
Case and Associated Parts (2 of 4):
Case and Associated Parts (3 of 4):
Case and Associated Parts (4 of 4):
