Chevrolet
>>
2003
>>
Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Drive/Propeller Shaft
>>

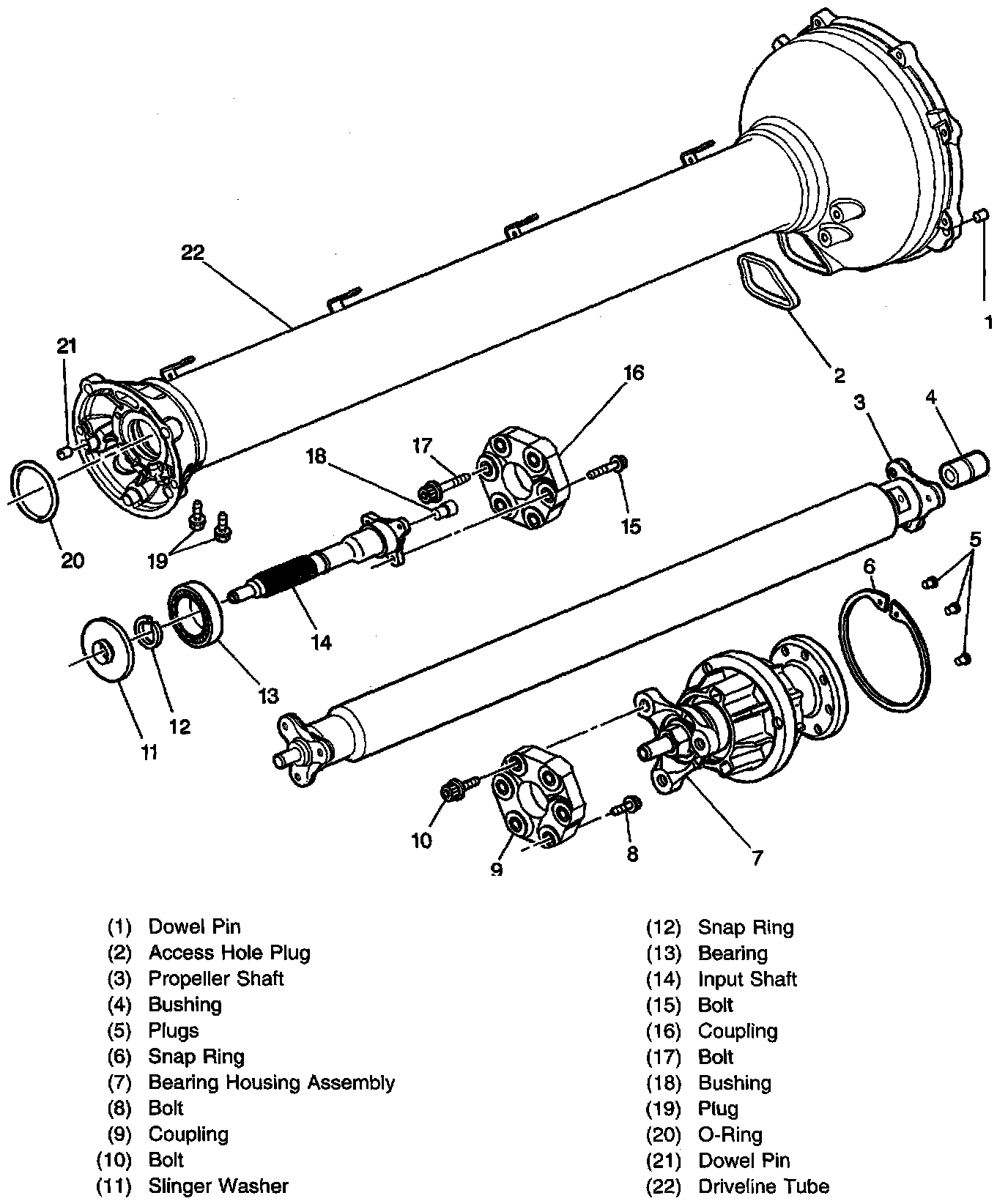

Driveline Assembly (Automatic Transmission)
Driveline Assembly (Automatic Transmission)
