Defroster Door Replacement

DEFROSTER DOOR REPLACEMENT

REMOVAL PROCEDURE
1. Remove the IP trim pad.
2. Remove the defroster door vacuum actuator.

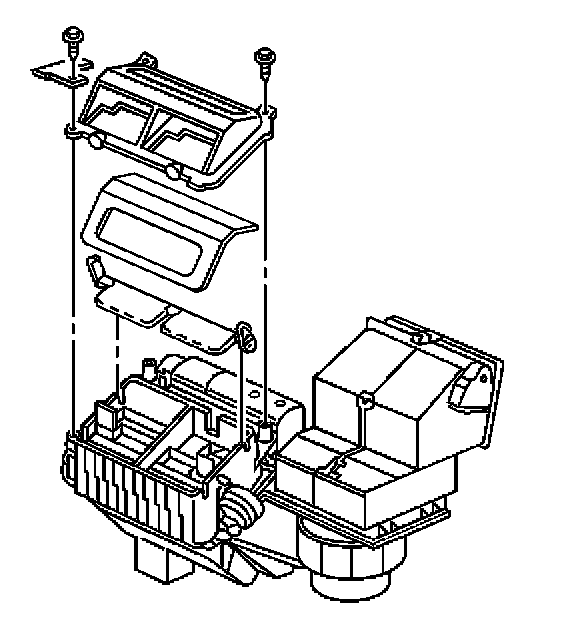

3. Remove the air distribution case cover retaining screws.
4. Remove the air distribution case cover.
5. Remove and discard the air distribution case seal.
6. Remove the linkage between the air temperature door and the heater door on the left side of the HVAC module assembly.
7. Remove the defroster door.

INSTALLATION PROCEDURE




1. Install the defroster door.
2. Connect the linkage between the air temperature door and the heater door.
3. Install a new air distribution case seal
4. Install the air distribution case cover.
5. Install the air distributor case cover retaining screws.

NOTE: Refer to Fastener Notice in Service Precautions. Vehicle Damage Warnings

Tighten
Tighten the screws to............1.6 N.m (14 lb in).

6. Install the defroster door vacuum actuator.
7. Install the IP trim pad.
