Instrument Panel Cluster (IPC) - Replacement
INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENTREMOVAL PROCEDURE
NOTE: Refer to IPC Servicing Notice in Service Precautions.
If the instrument panel cluster (IPC) that is being removed is to be sent to an authorized Delco Service Center, prior to shipping the unit, refer to Instrument Cluster Service Precautions.
1. Disconnect the negative battery cable.
CAUTION: Refer to Battery Disconnect Caution in Service Precautions.
2. Remove the I/P upper trim pad.
3. Carefully lift the head-up display (HUD) electrical harness from between the instrument panel cluster (IPC) and the HUD, if equipped.
4. Disconnect the HUD electrical connector from the IPC, if equipped.

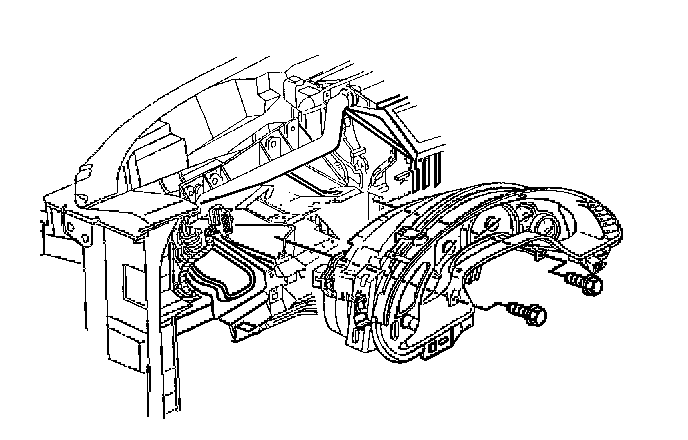

5. Remove the IPC to steering column bracket retaining screws.
6. Raise the rear of the IPC slightly to release the locator tab, then lift the IPC to access the electrical connector.

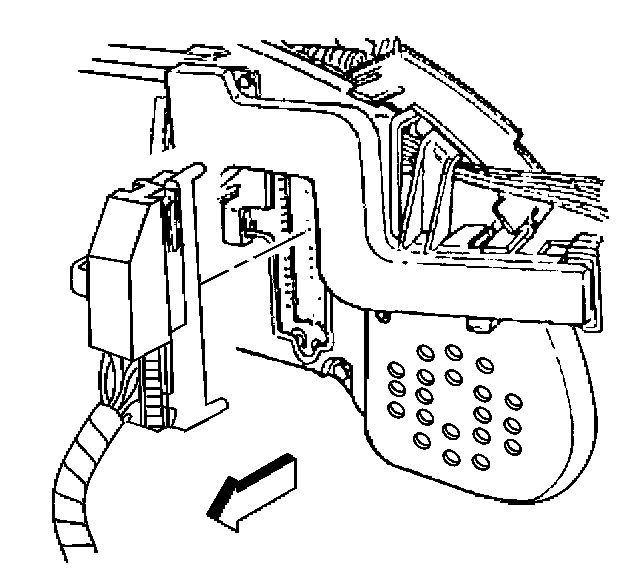

7. Disconnect the IPC electrical connector.
8. Remove the IPC.
INSTALLATION PROCEDURE

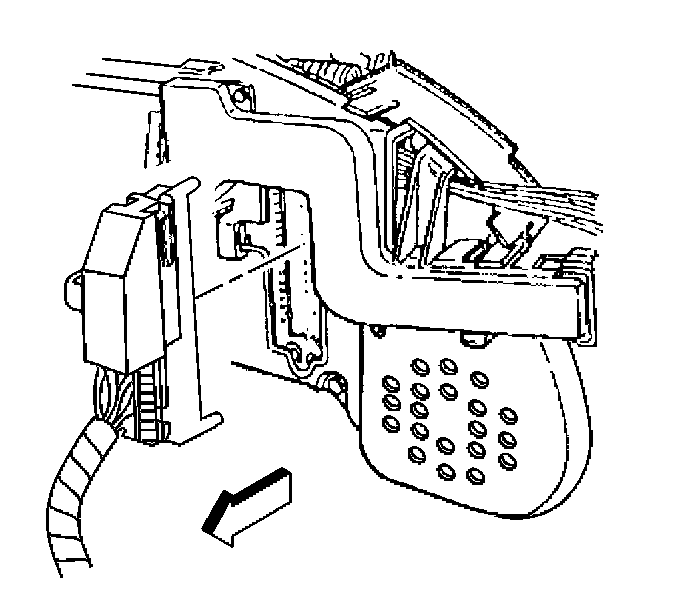

1. Connect the instrument panel cluster (IPC) electrical connector.
2. Position the IPC to the steering column bracket.
3. Check that the IPC retaining tab (1) is positioned correctly to the steering column bracket (2).
4. Install the IPC to steering column bracket retaining screws.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the IPC to steering column bracket retaining screws to 3 N.m (27 lb in).
5. Connect the head-up display (HUD) electrical connector to the IPC, if equipped.

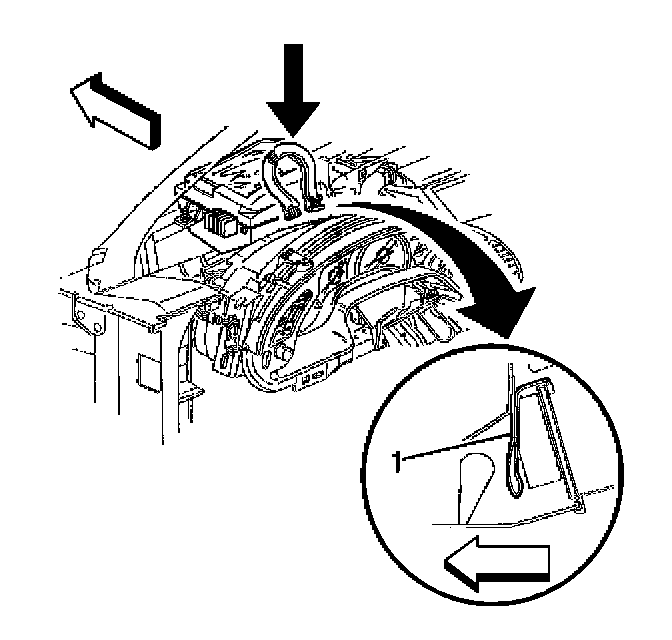

6. Carefully tuck the HUD electrical harness (1) down between the IPC and the HUD as shown, if equipped.
7. Install the I/P upper trim pad.
8. Connect the negative battery cable.
Tighten
Tighten the negative battery cable bolt to 15 N.m (11 lb ft).
9. Program the transmitters. Refer to Transmitter Programming in Keyless Entry.
10. Synchronize the transmitters. Refer to Transmitter Synchronization in Keyless Entry.
