System Specifications

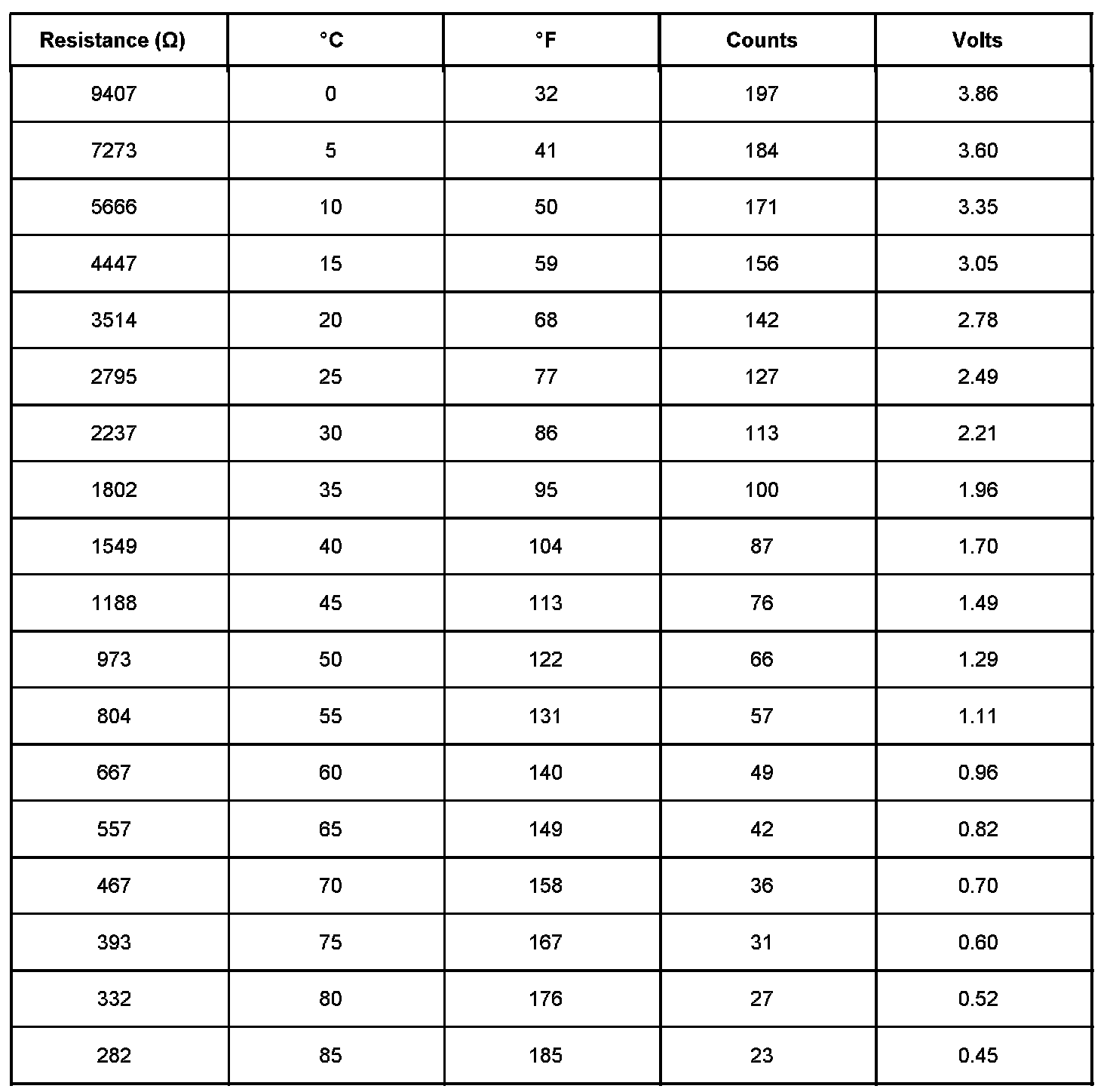

Sensor Resistance Table (Inside Air Temperature - Ohms) Part 1:



Sensor Resistance Table (Inside Air Temperature - Ohms) Part 2:
