Output Shaft Seal Replacement

Output Shaft Seal Replacement

^ Tools Required
- J 36797 Output Shaft Seal Installer

Removal Procedure





1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Remove the appropriate rear tire and wheel assembly.
3. Remove the appropriate drive shaft.

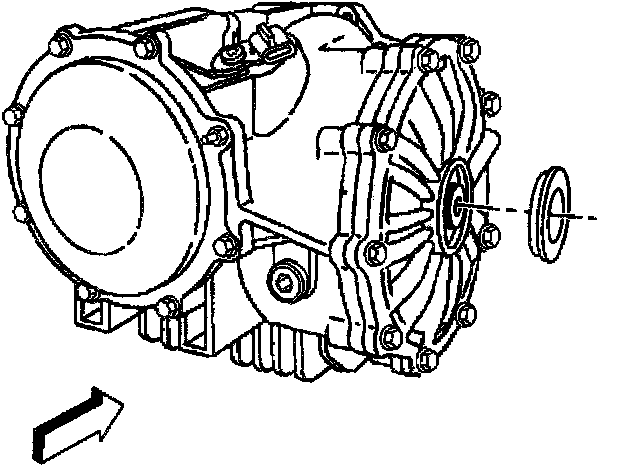

4. Remove the differential output shaft seal.
Take care not to damage any sealing surfaces.

Installation Procedure

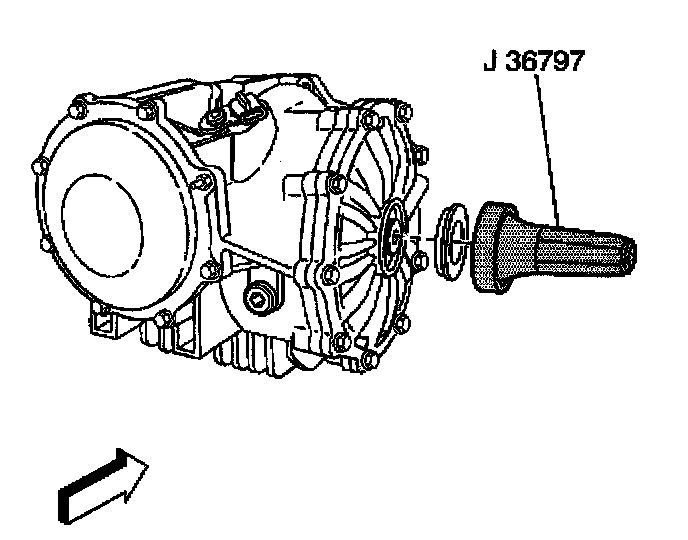

1. Using the J 36797, install the differential output shaft seal.
2. Install the drive shaft.
3. Install the rear tire and wheel assembly.
4. Lower the vehicle.
