Home
>>
Chevrolet
>>
2003
>>
Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
Power Window Switch

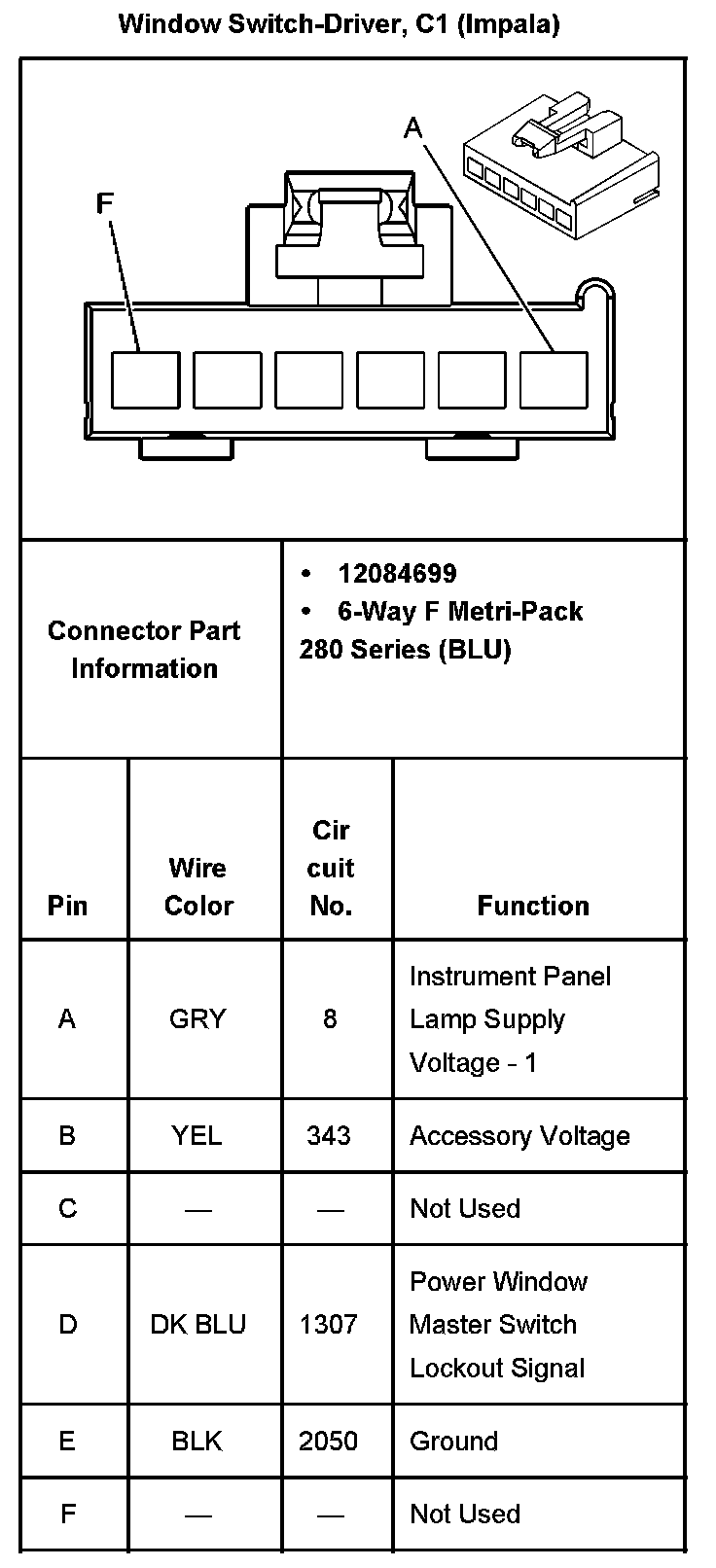

Window Switch-Driver, C1:

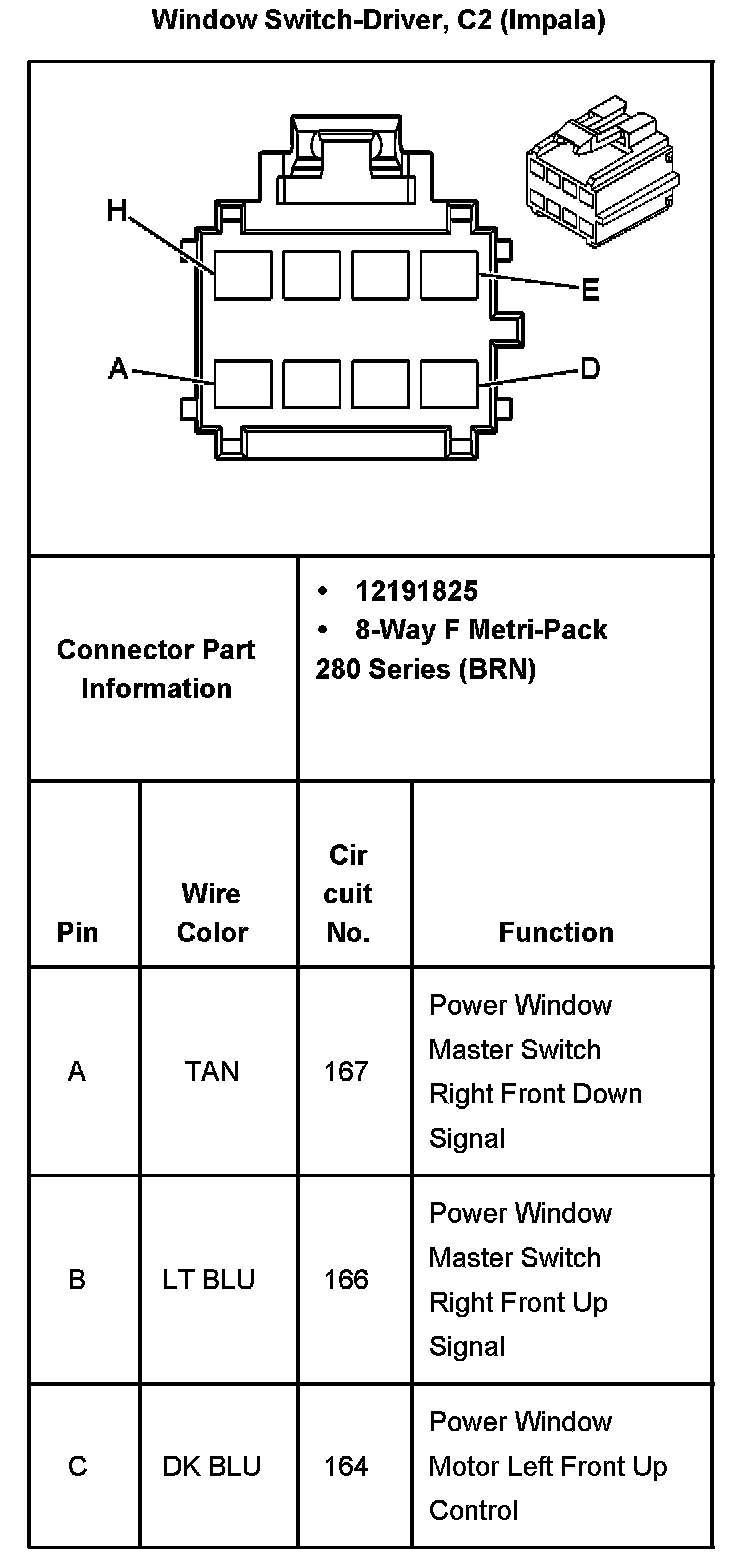

Window Switch-Driver, C2 Part 1:

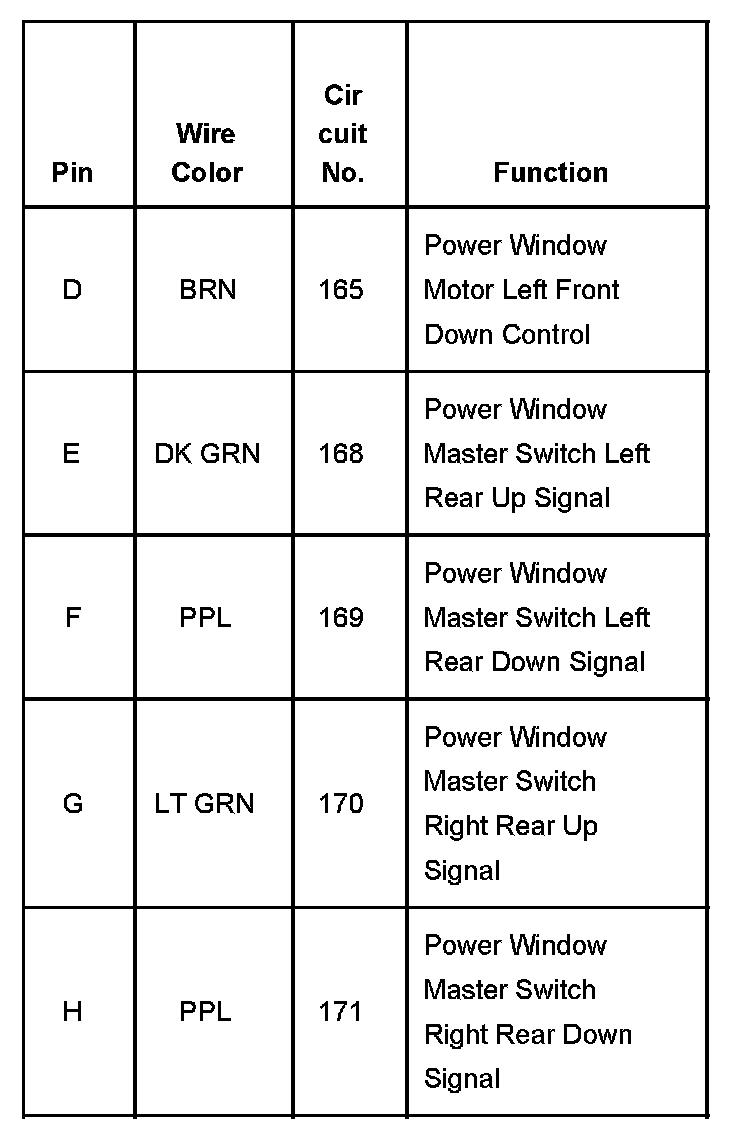

Window Switch-Driver, C2 Part 2:

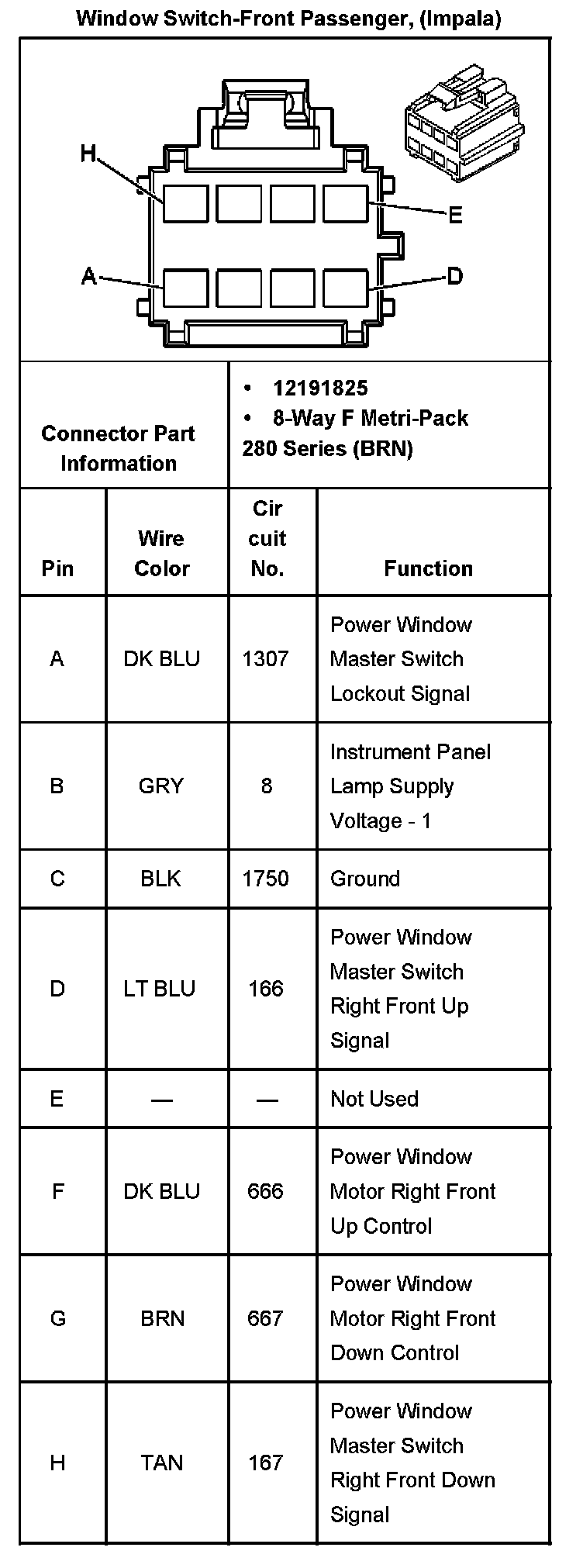

Window Switch-Front Passenger:
Window Switch-LR:
Window Switch-RR:
