Air Bag Control Module: Locations

SIR Subsystem:

Locations View:

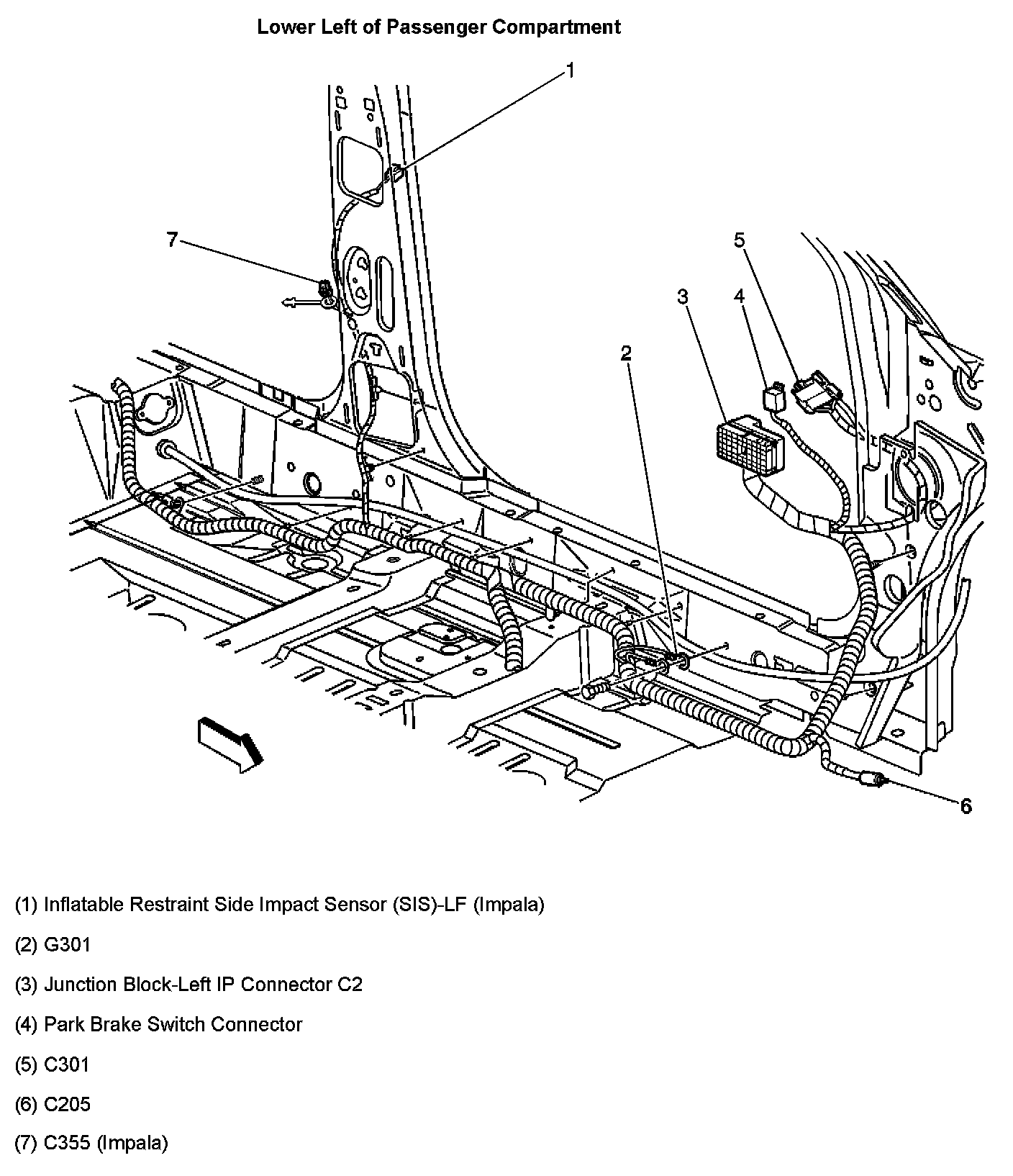

Lower Left Of Passenger Compartment:

Lower Left Of Passenger Compartment:
