Seat Adjuster Handle Replacement - Two-Way Manual

Seat Adjuster Handle Replacement - Two-Way Manual

Removal Procedure




1. Position the front seat to the most rearward position.

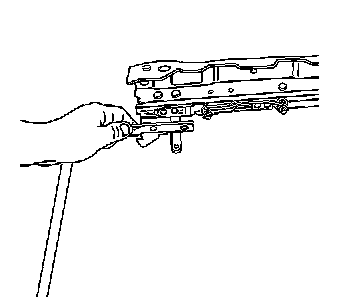

2. Remove the retaining clips from the seat adjuster release handle.




3. Remove the release handle from the seat track studs.

Installation Procedure




1. Install the seat adjuster release handle to the seat track studs.




2. Install the release handle retaining clips, pressing into place until fully seated.
3. Position the front seat to the original position.
