Control Assembly, HVAC

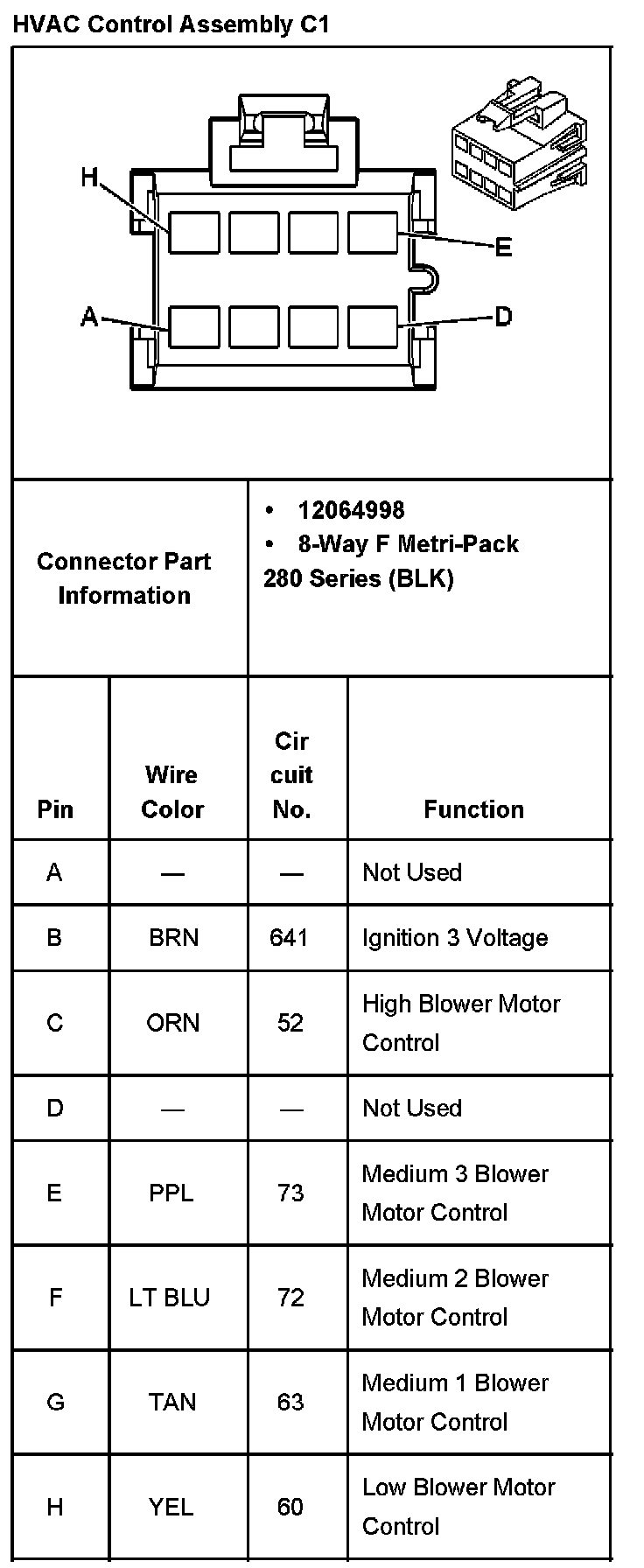

HVAC Control Assembly C1:

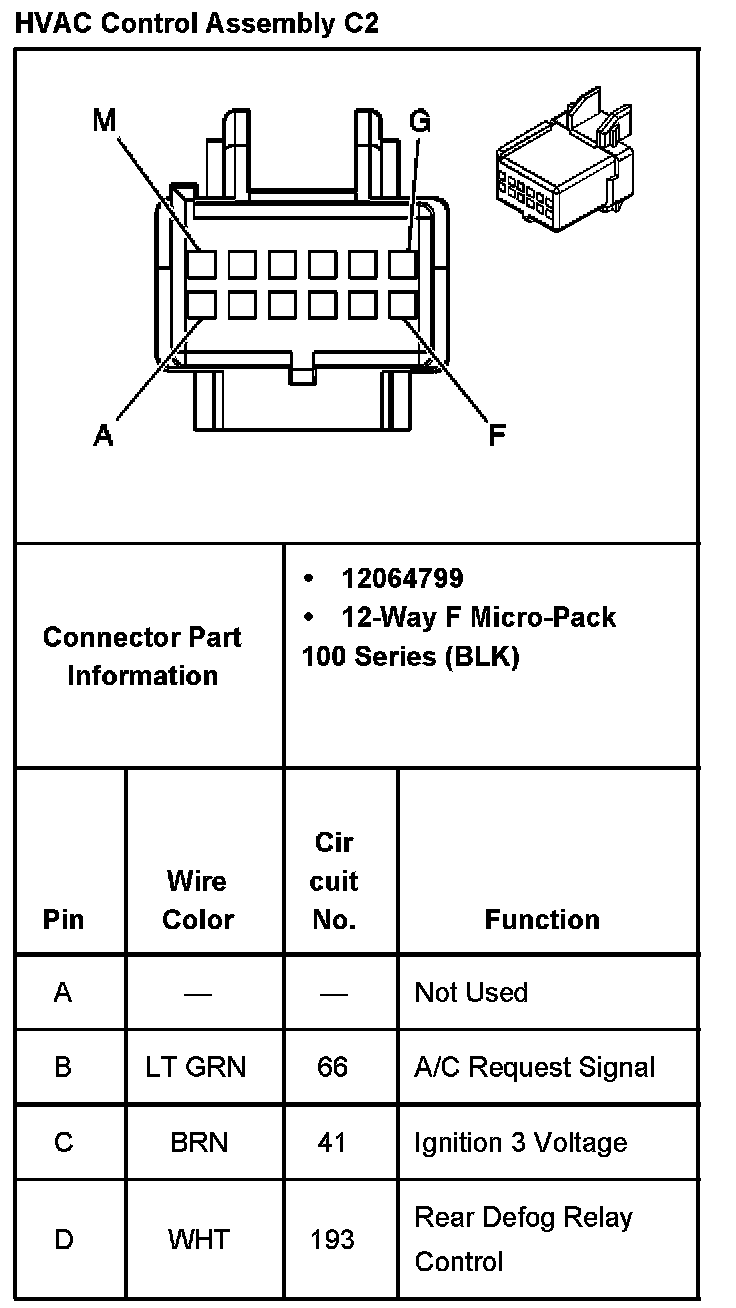

HVAC Control Assembly C2 Part 1:



HVAC Control Assembly C2 Part 2:
