Fuse Block - Left I/P - C2
Fuse Block - Left I/P - C2

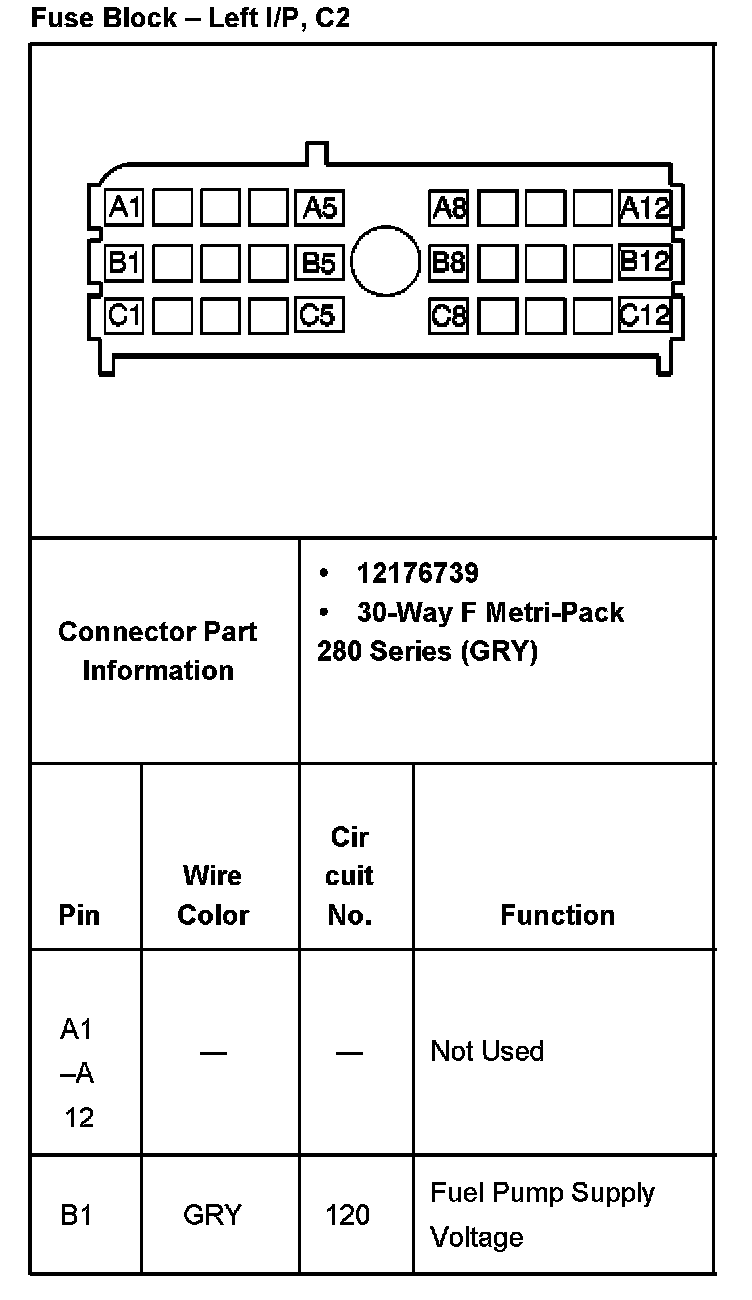

Fuse Block - Left I/P, C2 Part 1:

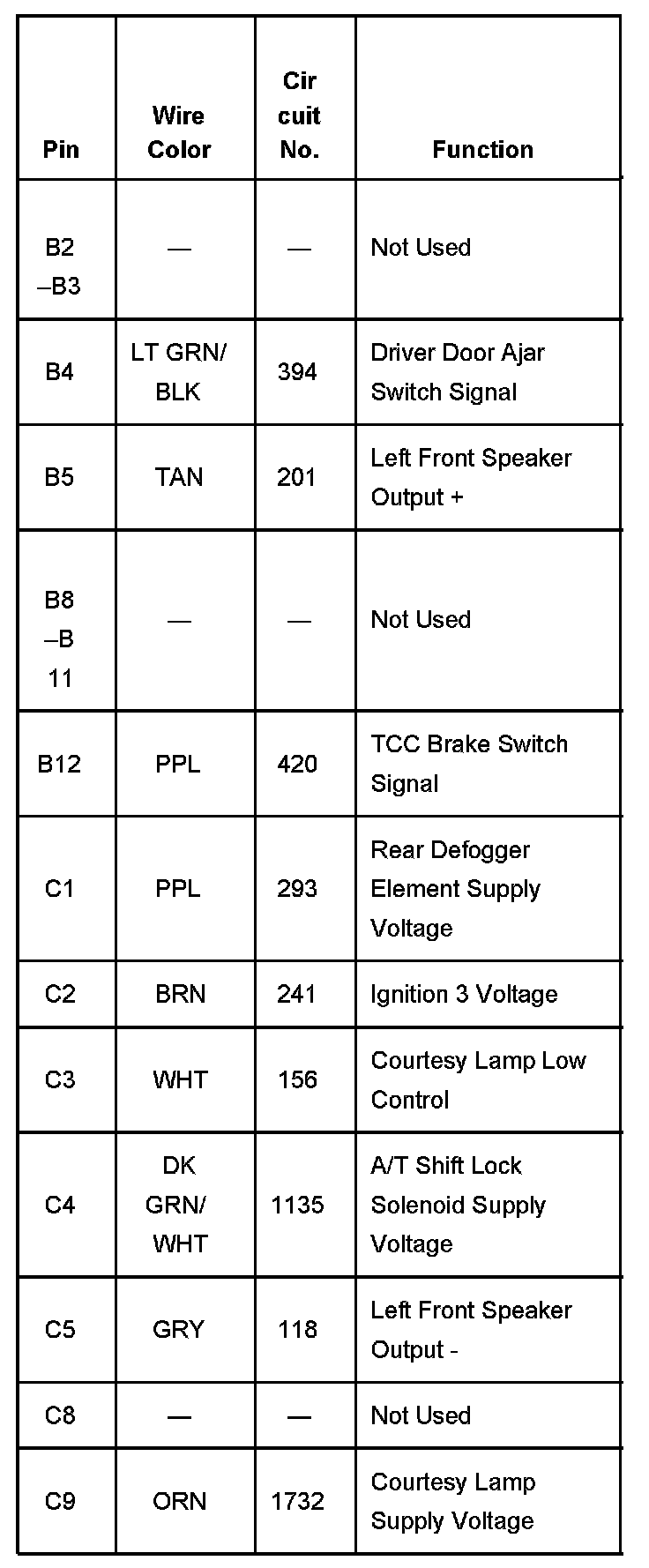

Fuse Block - Left I/P, C2 Part 2:
Fuse Block - Left I/P, C2 Part 3:
