Ignition Control Module

Ignition Control (IC) Module C1:

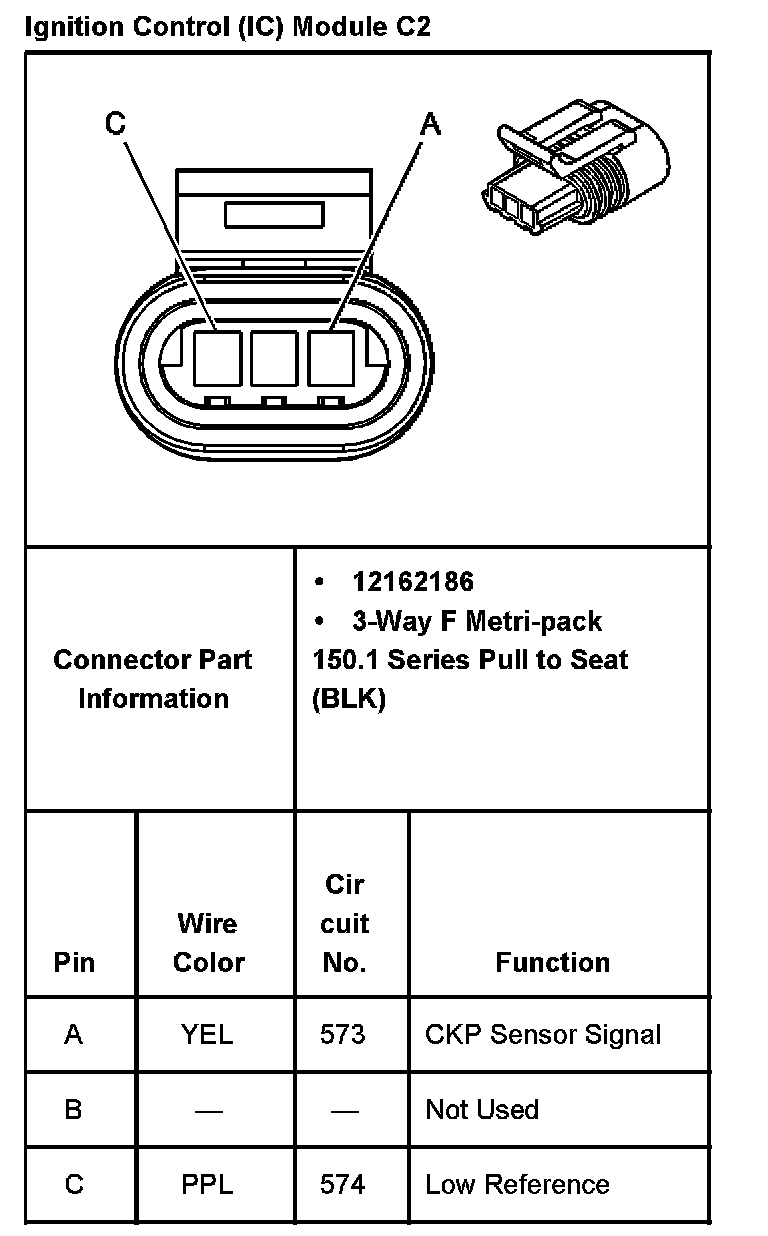

Ignition Control (IC) Module C2:



Ignition Control (IC) Module C3:
