Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2003
>>
Malibu V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C101 - C306
>>
C101 Forward Lamp to I/P
C101 Forward Lamp to I/P

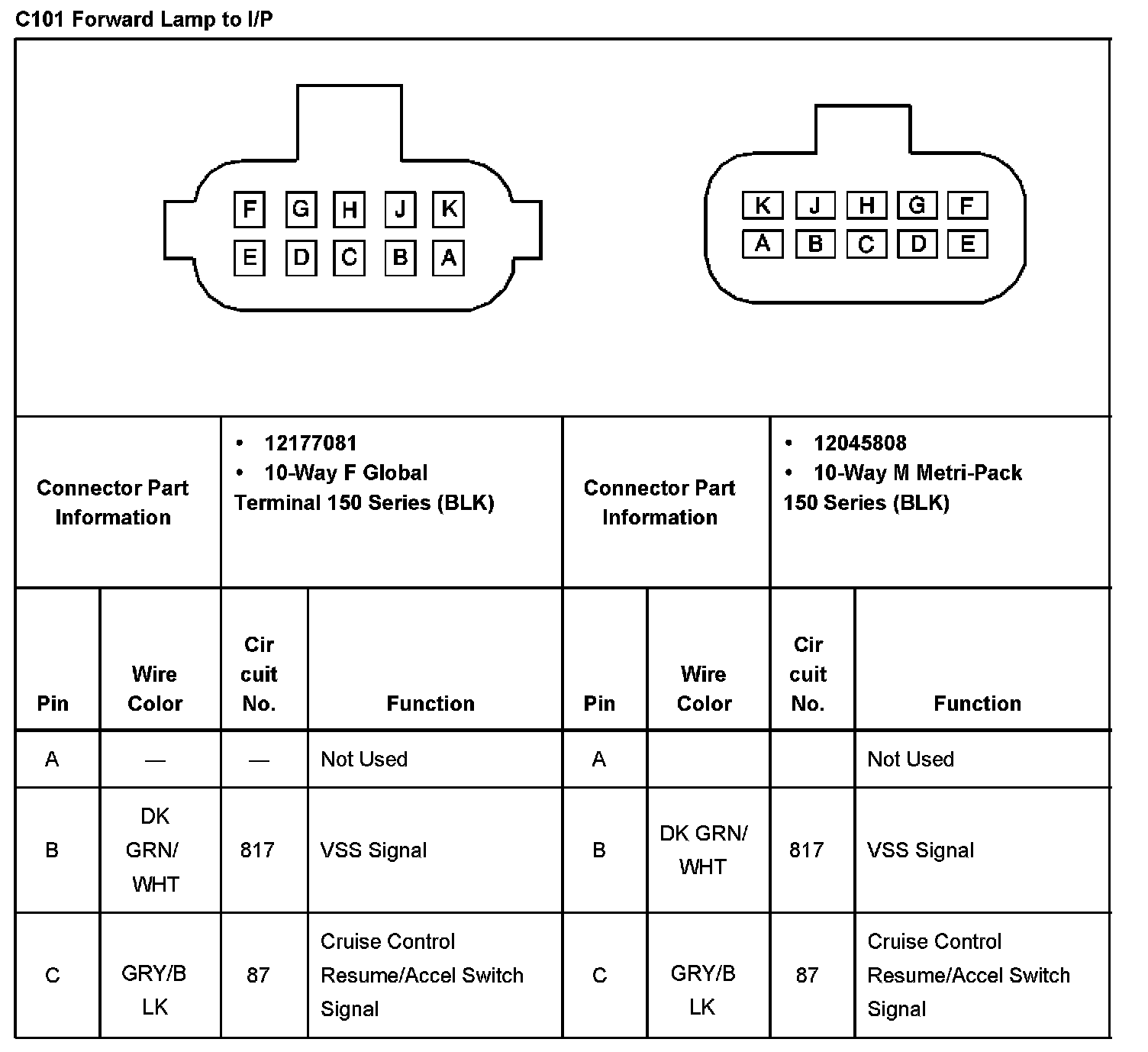

C101 Forward Lamp To I/P Part 1:

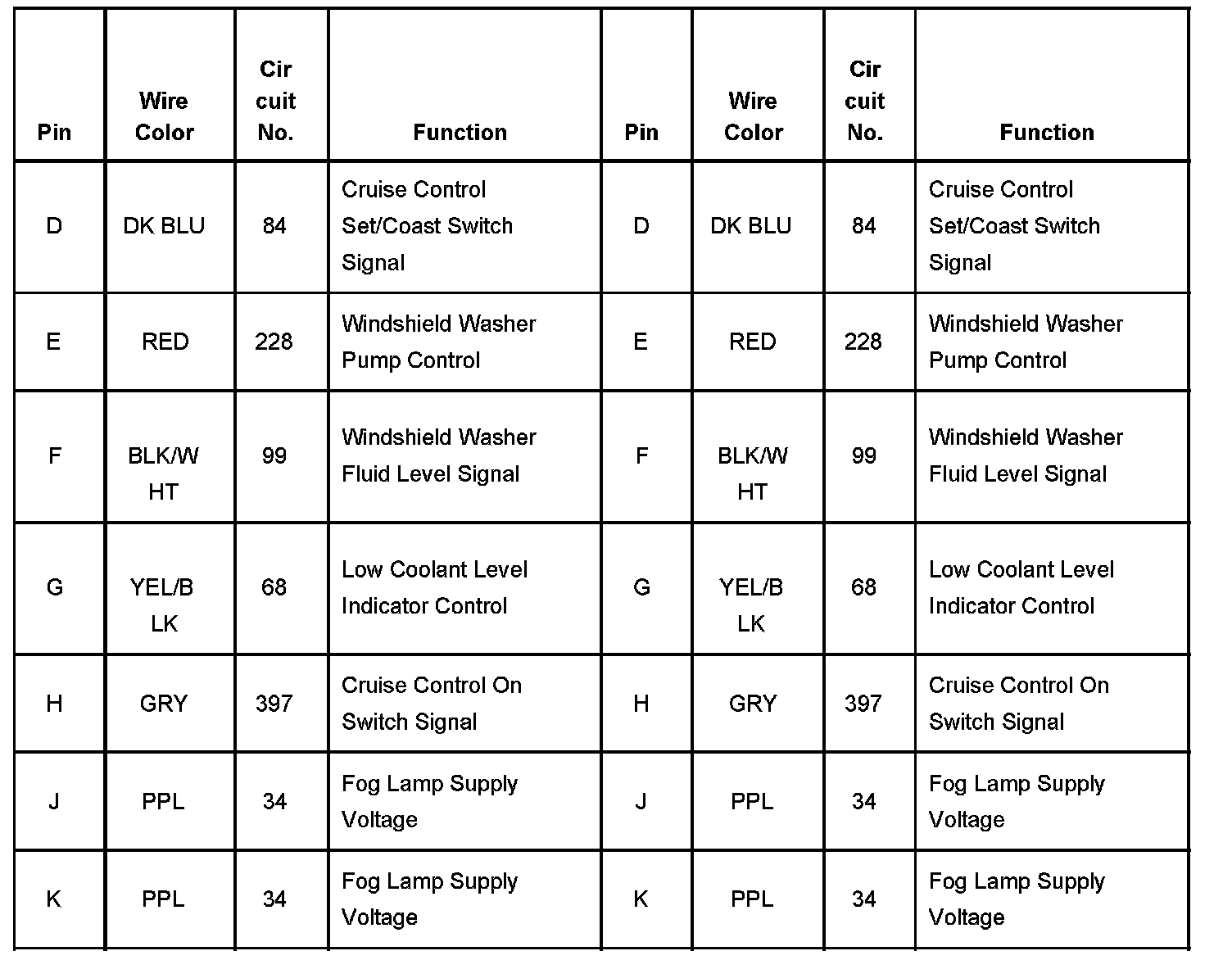

C101 Forward Lamp To I/P Part 2:
