Neutral Safety Switch
Neutral Safety Switch

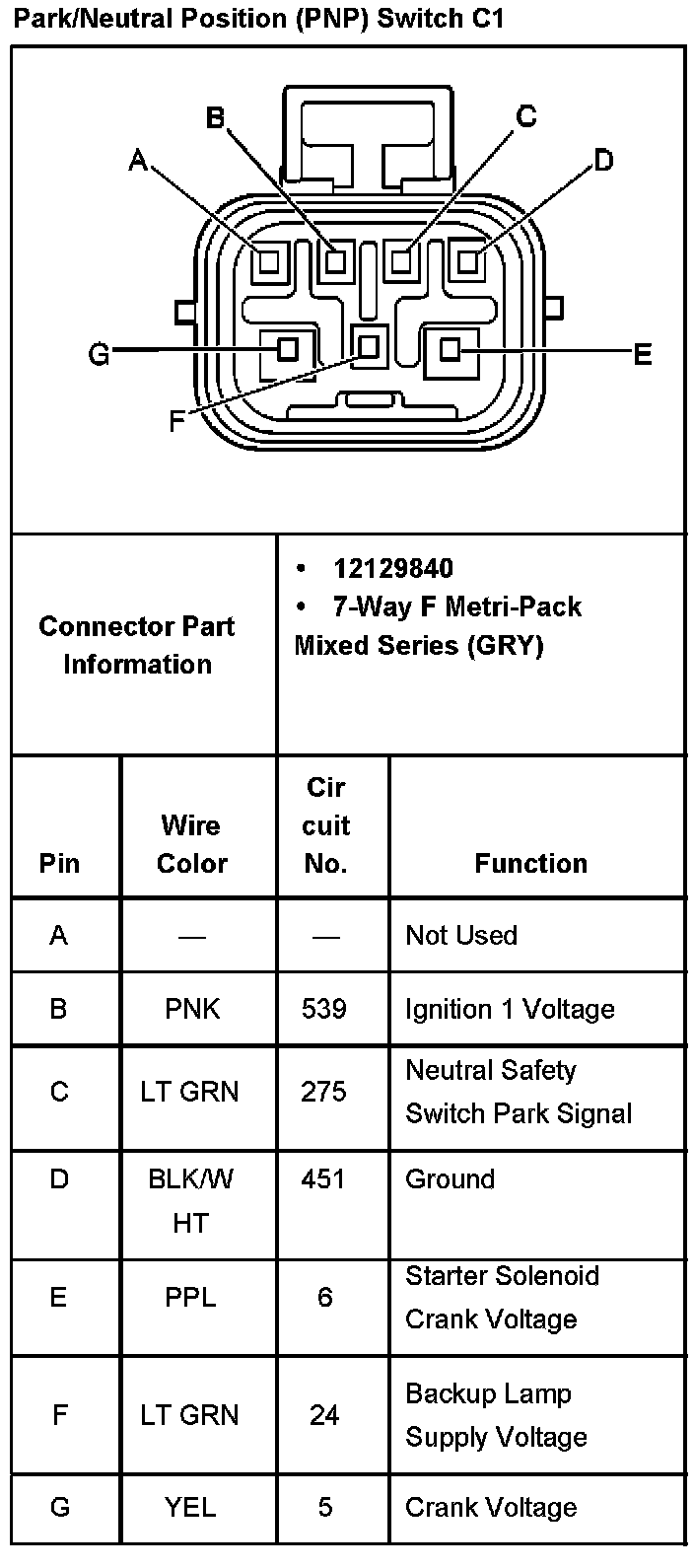

Park/Neutral Position (PNP) Switch C1:
Park/Neutral Position (PNP) Switch C2:
