Oxygen Sensor
Oxygen Sensor

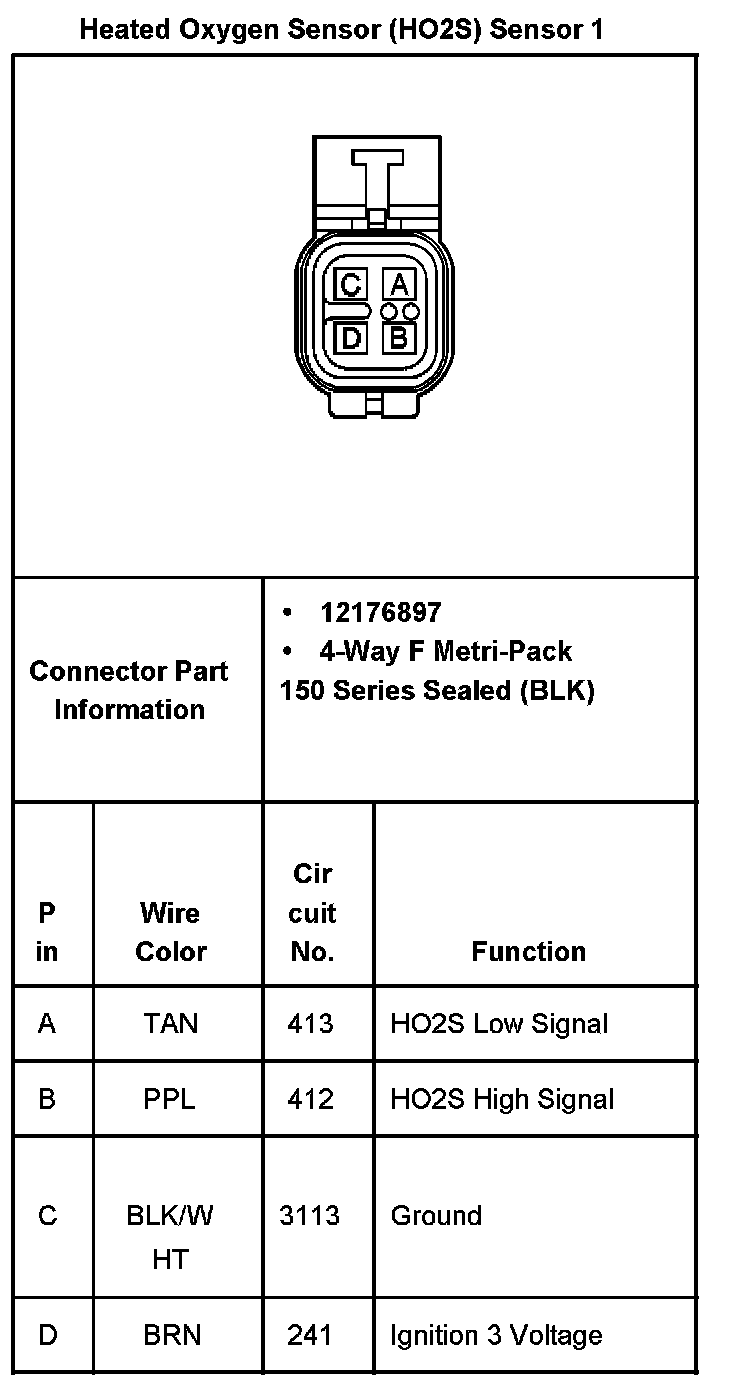

Heated Oxygen Sensor (HO2S) Sensor 1:

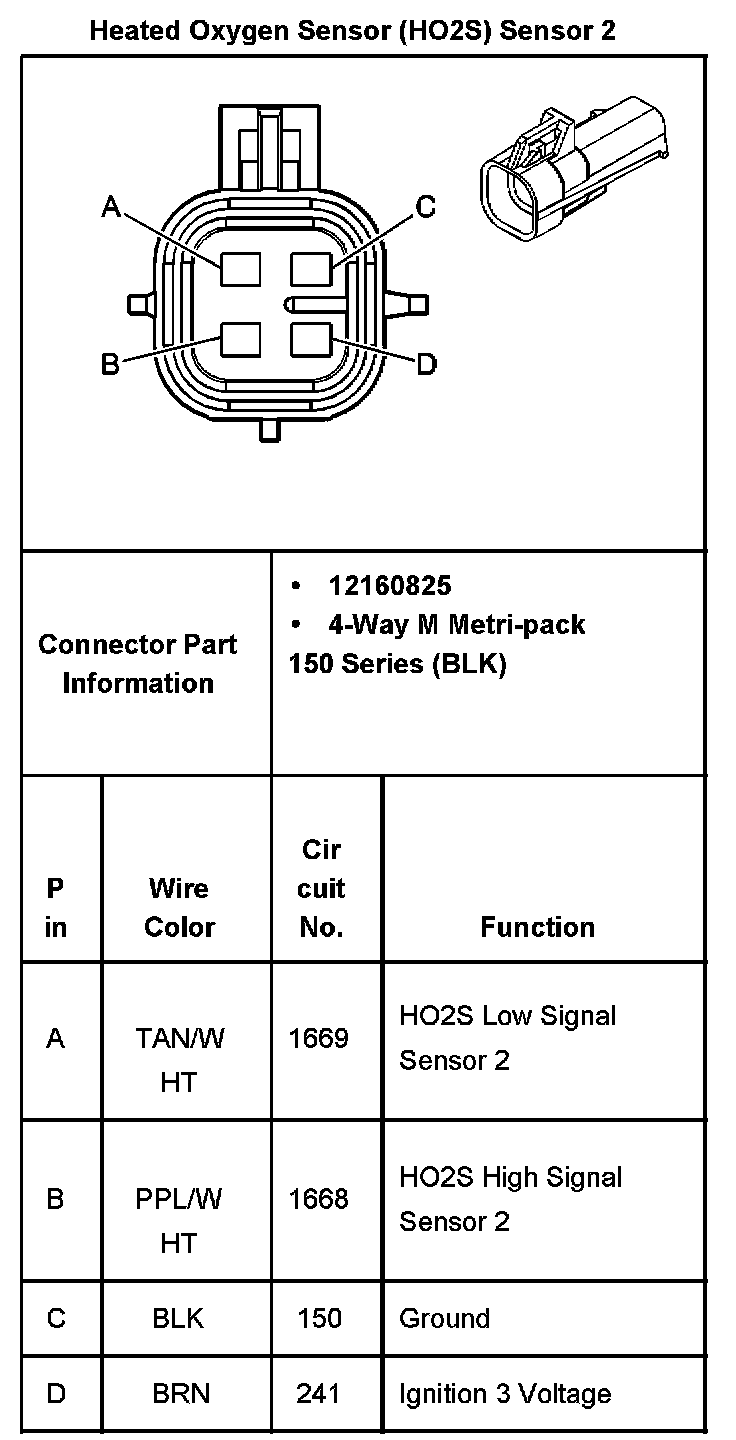

Heated Oxygen Sensor (HO2S) Sensor 2:
