Power Window Switch

Window Switch - Driver, C1 Part 1:




Window Switch - Driver, C1 Part 2:

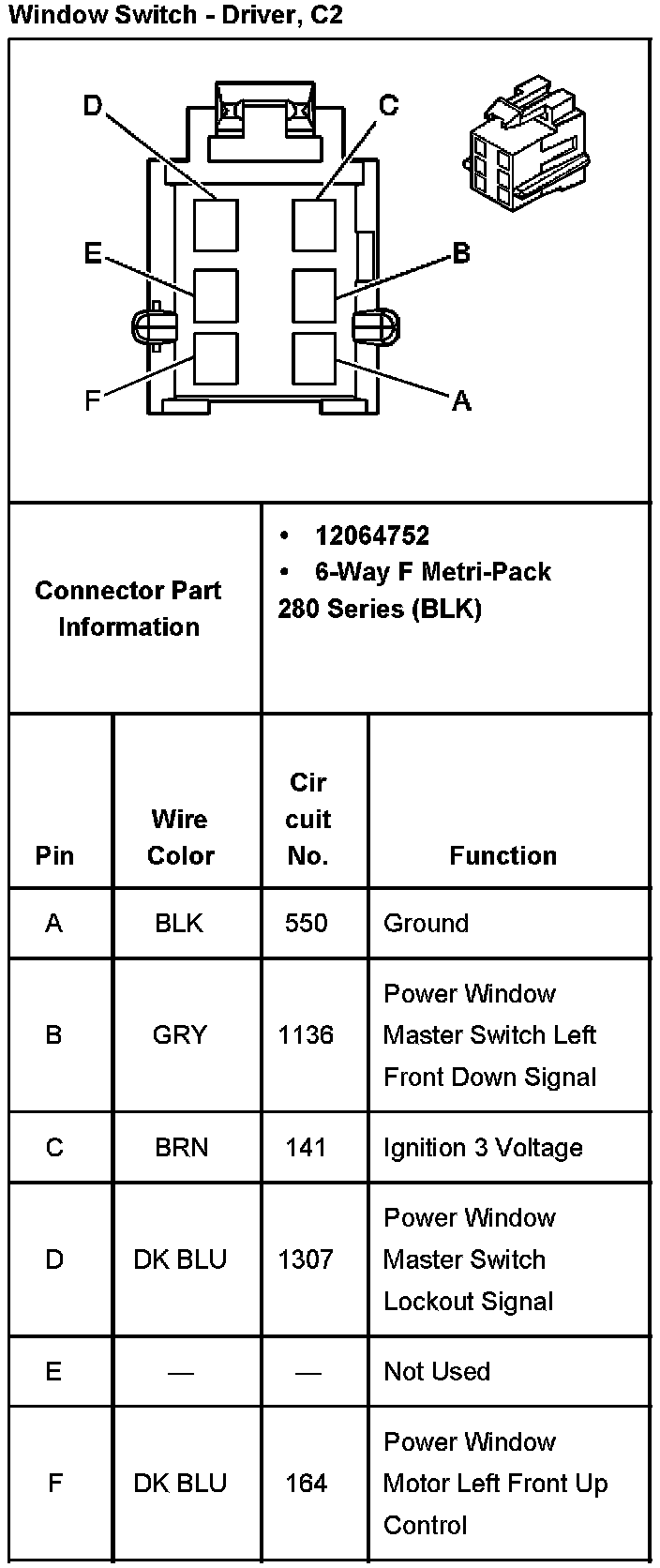

Window Switch - Driver, C2:

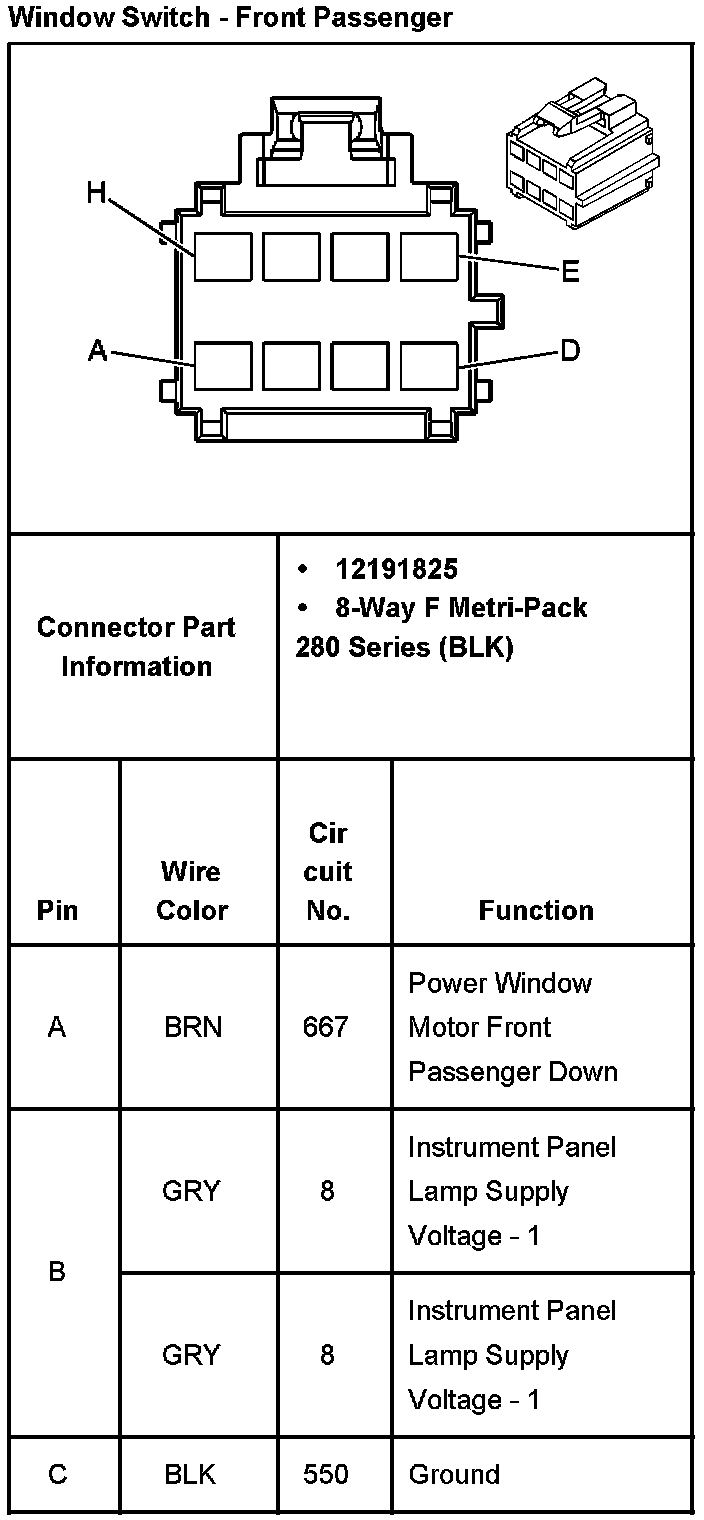

Window Switch - Front Passenger Part 1:

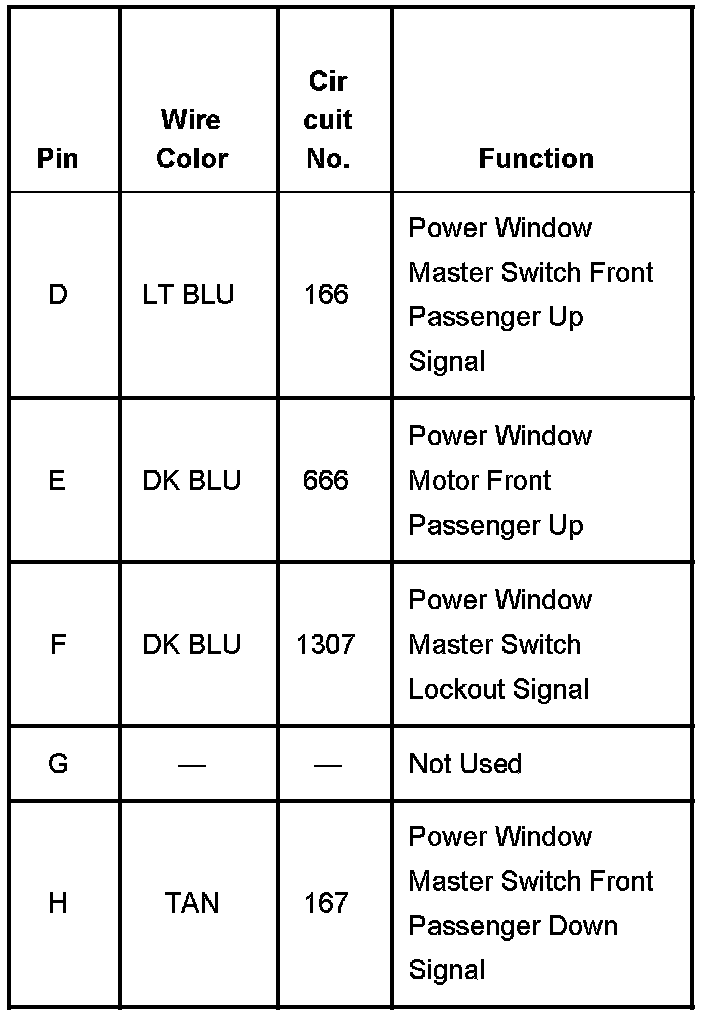

Window Switch - Front Passenger Part 2:

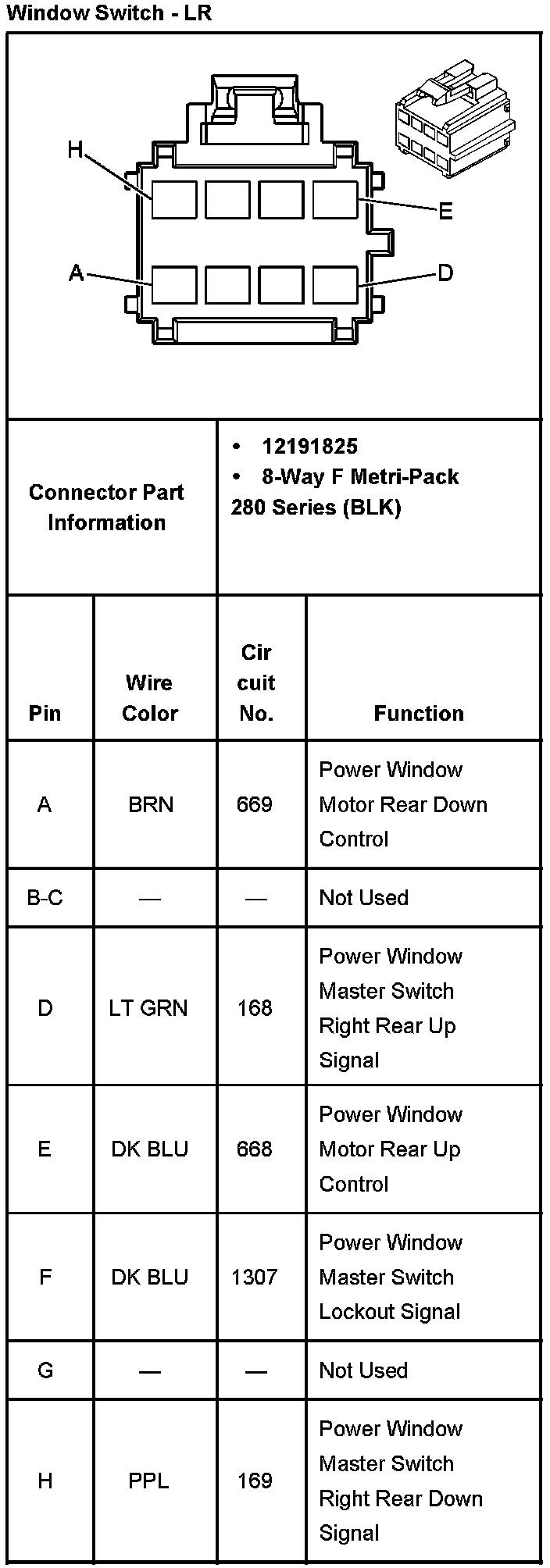

Window Switch - LR:

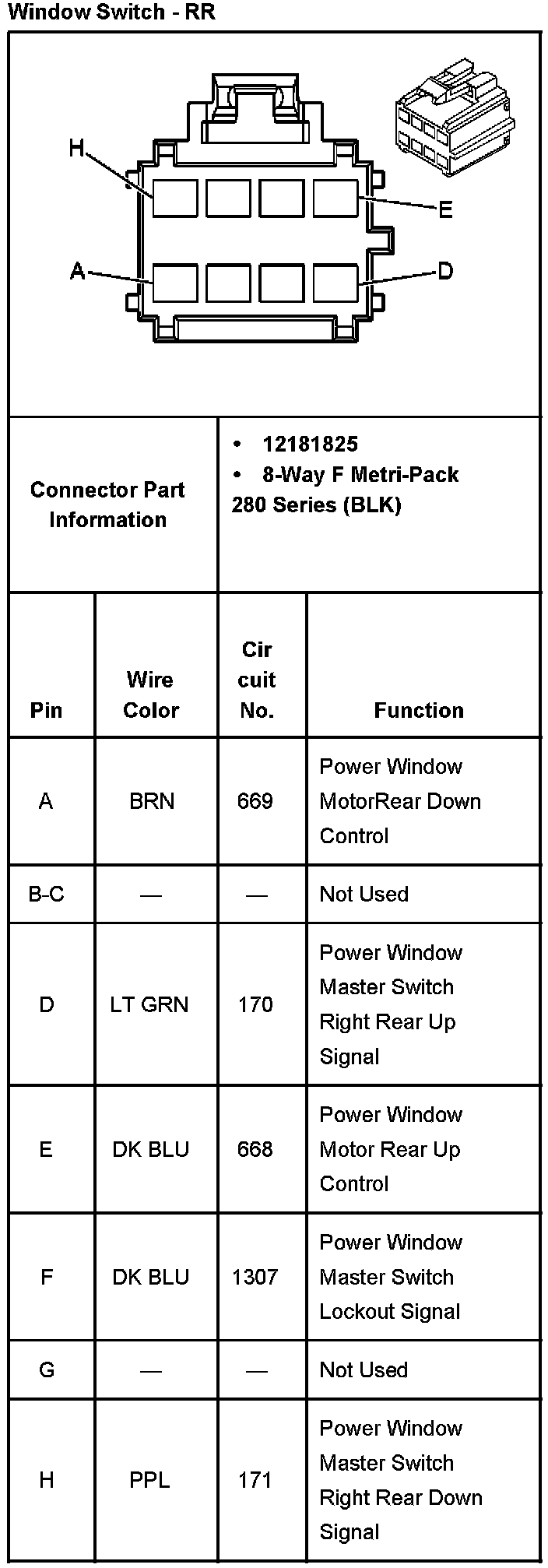

Window Switch - RR:
