Transmission Controls Diagram 1
Transmission Controls Diagram 1

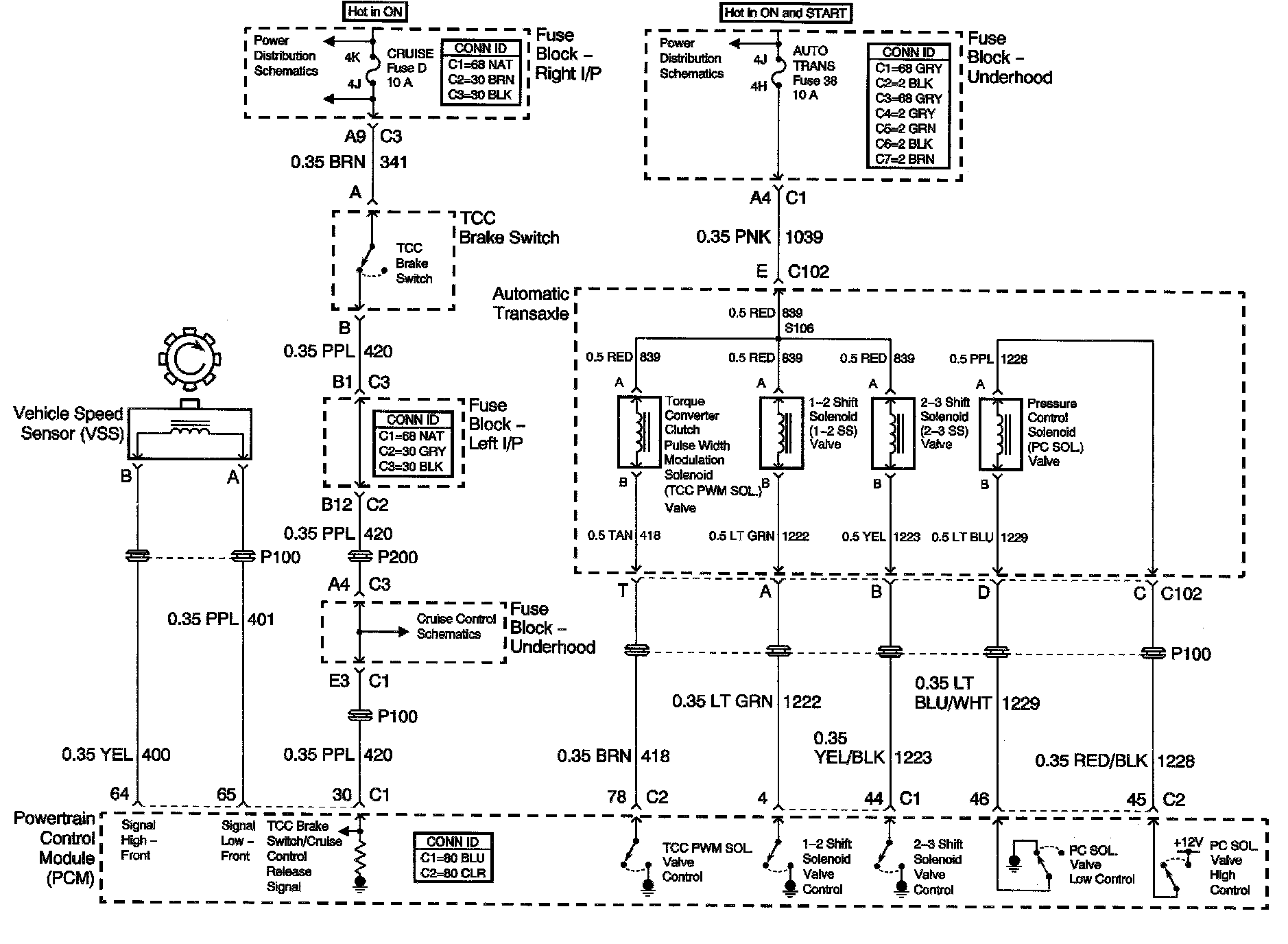

Transmission Controls - Diagram 1:
Next Diagram
Transmission Controls Diagram 2
