Home >> Chevrolet >> 2003 >> Malibu V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Input Carrier Assembly

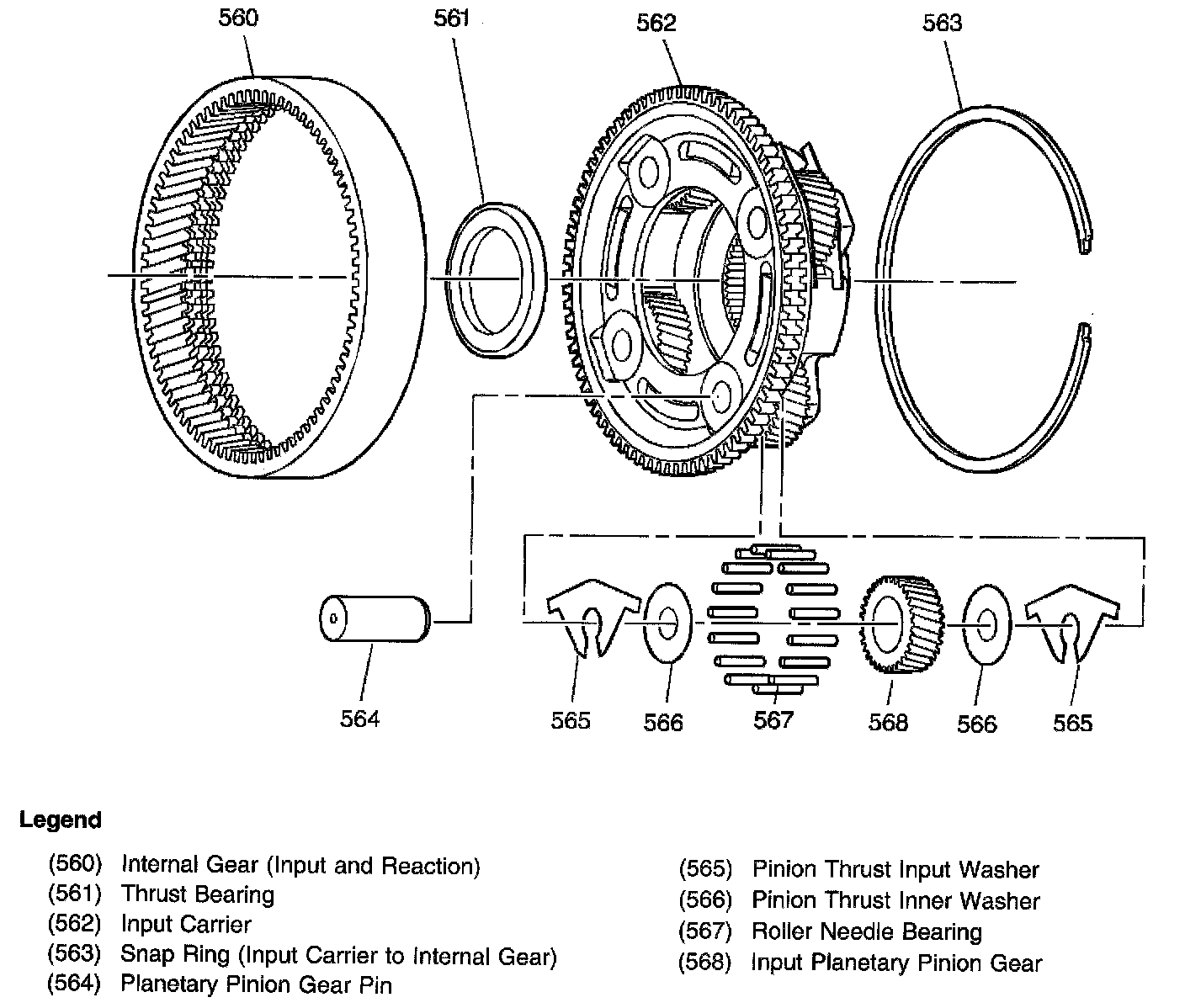

Input Carrier Assembly

Input Carrier Assembly:
