Cylinder Block Assembly: Specifications

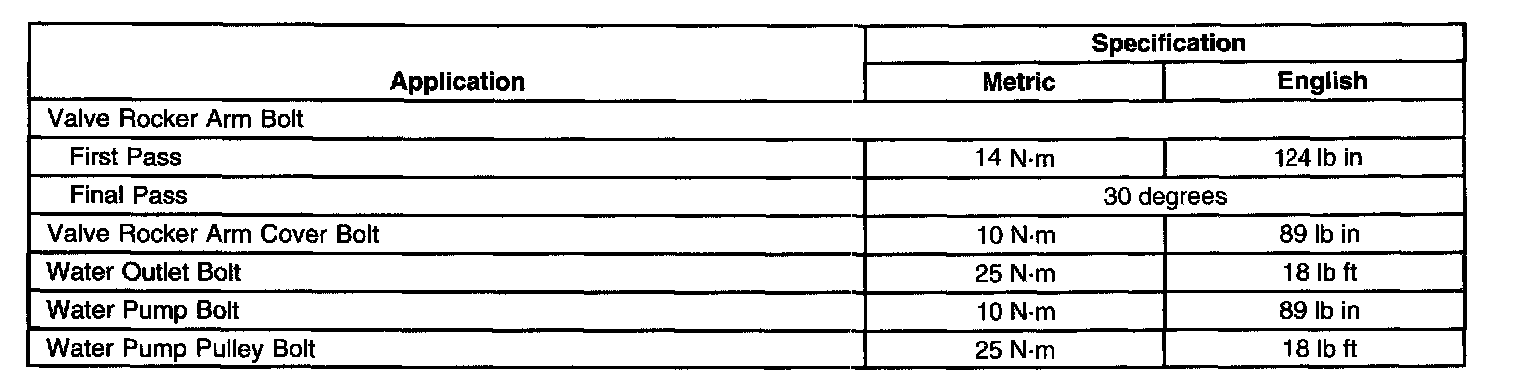

Fastener Tightening Specifications





General











Overhaul

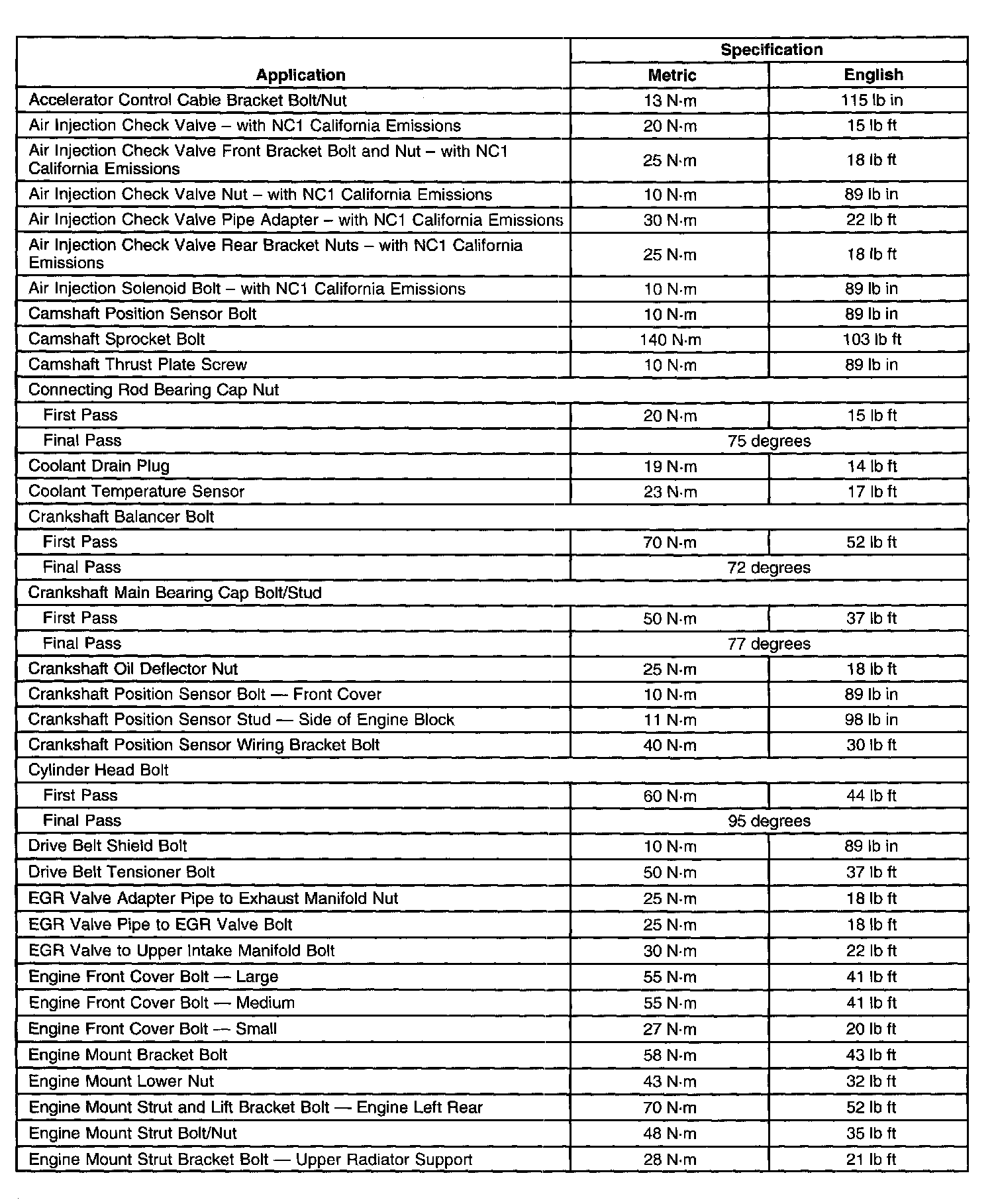

Engine Mechanical Specifications





General








Overhaul

Tightening Sequence

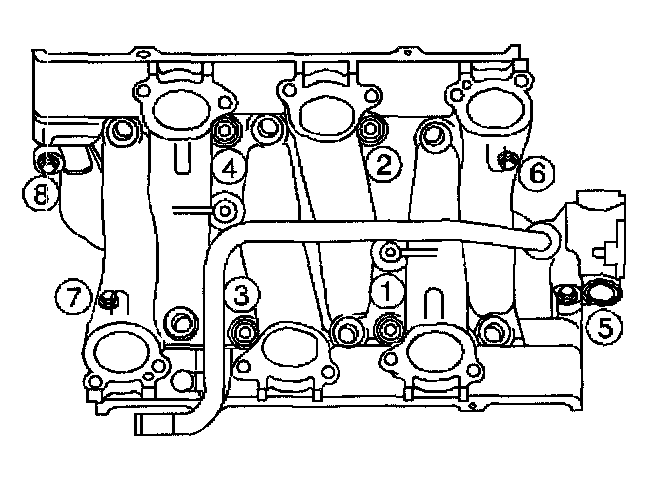

Intake Manifold
Refer to the Intake Manifold Service and Repair





Cylinder Head
Refer to the Cylinder Head Service and Repair
