Blower Motor Resistor: Service and Repair

BLOWER MOTOR RESISTOR ASSEMBLY REPLACEMENT

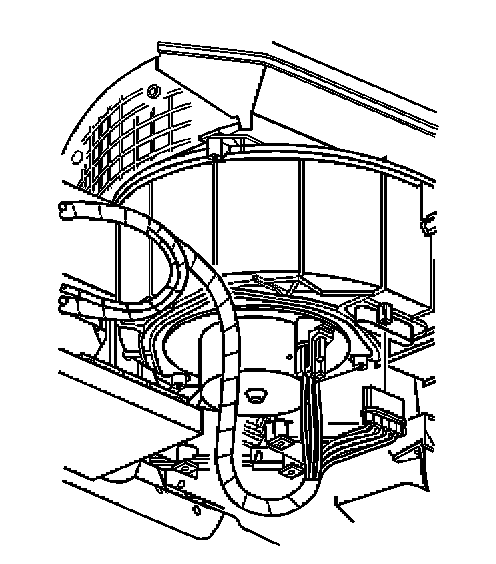

REMOVAL PROCEDURE




1. Remove the right side instrument panel (IP) insulator.
2. Disconnect the blower motor resistor assembly electrical connector from resistor assembly.




3. Remove the blower resistor assembly screws.
4. Remove the blower motor resistor assembly.

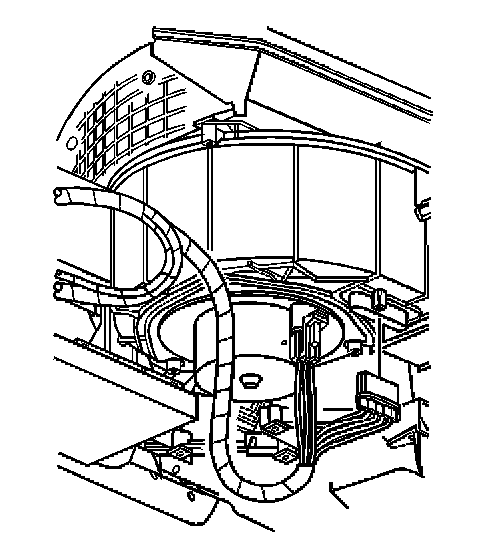

INSTALLATION PROCEDURE




1. Install the blower motor resistor assembly.
2. Install the blower motor resistor assembly screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 1 N.m (9 lb in).




3. Connect the blower motor resistor assembly electrical connector.
4. Install the right side instrument panel (IP) insulator.
