Courtesy Lamp: Service and Repair

COURTESY LAMP REPLACEMENT - INSTRUMENT PANEL

REMOVAL PROCEDURE

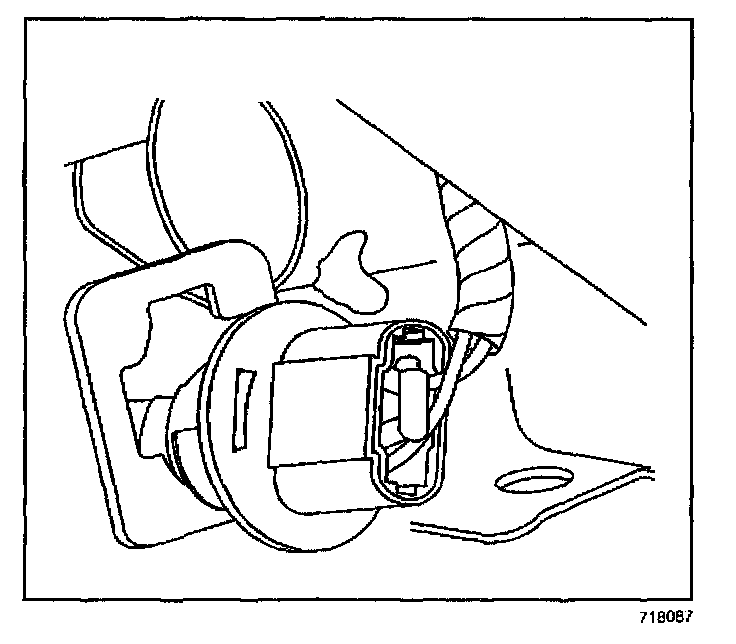

1. Remove the courtesy lamp socket from the IP by rotating counter clockwise.
2. Pull the courtesy lamp bulb from the socket.

INSTALLATION PROCEDURE




1. Push the courtesy lamp bulb into the socket.
2. Install the courtesy lamp socket into the bracket by rotating clockwise.
