Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2003
>>
Malibu V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Diagrams
>>
Connector Views
Connector Views

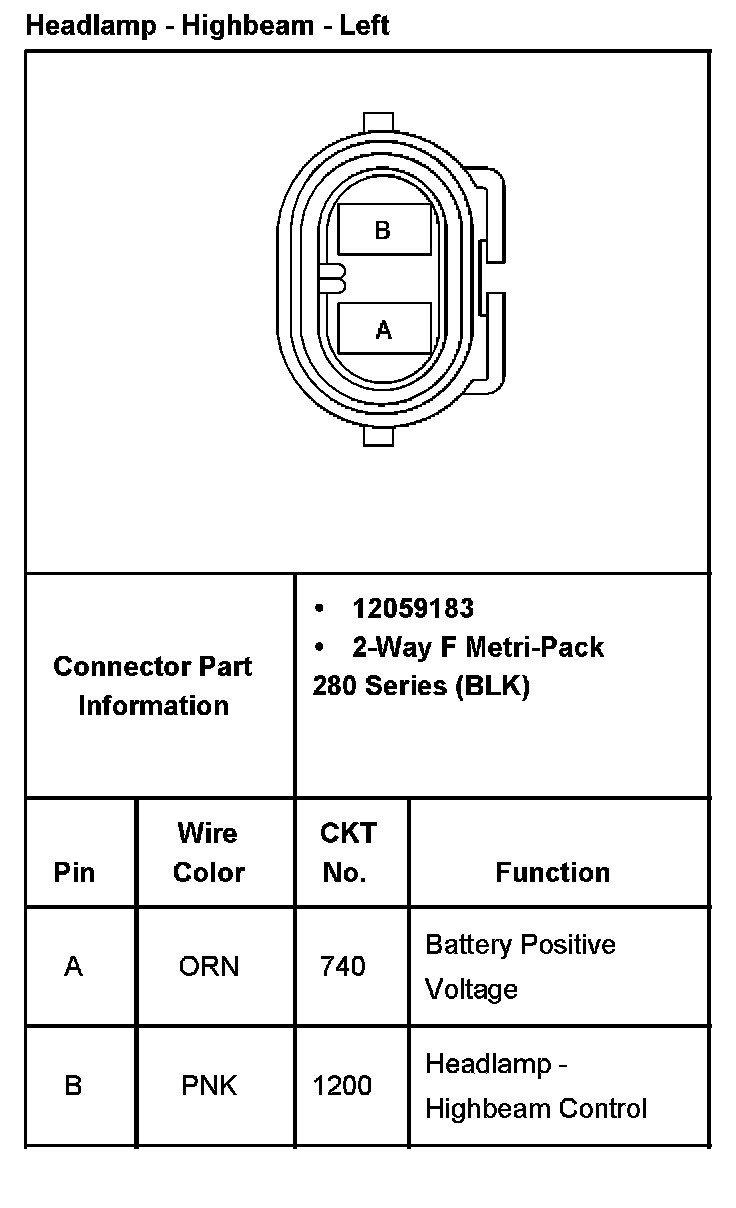

Headlamp - Highbeam - Left:

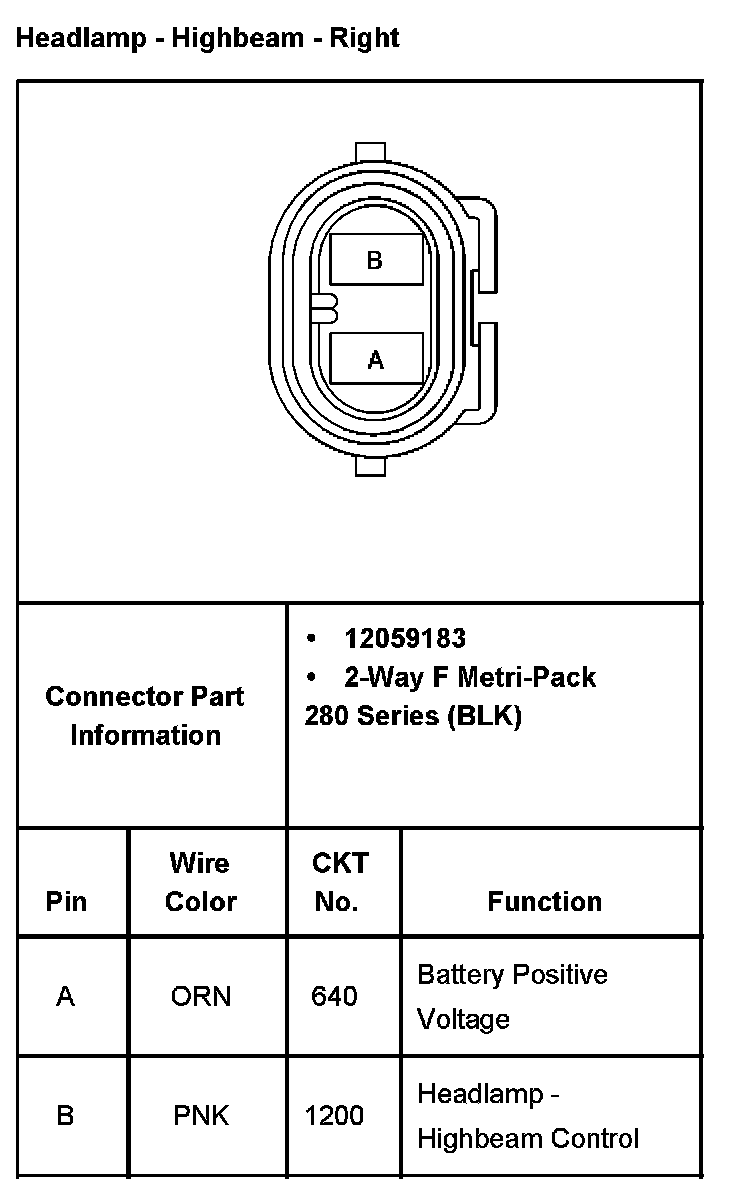

Headlamp - Highbeam - Right:

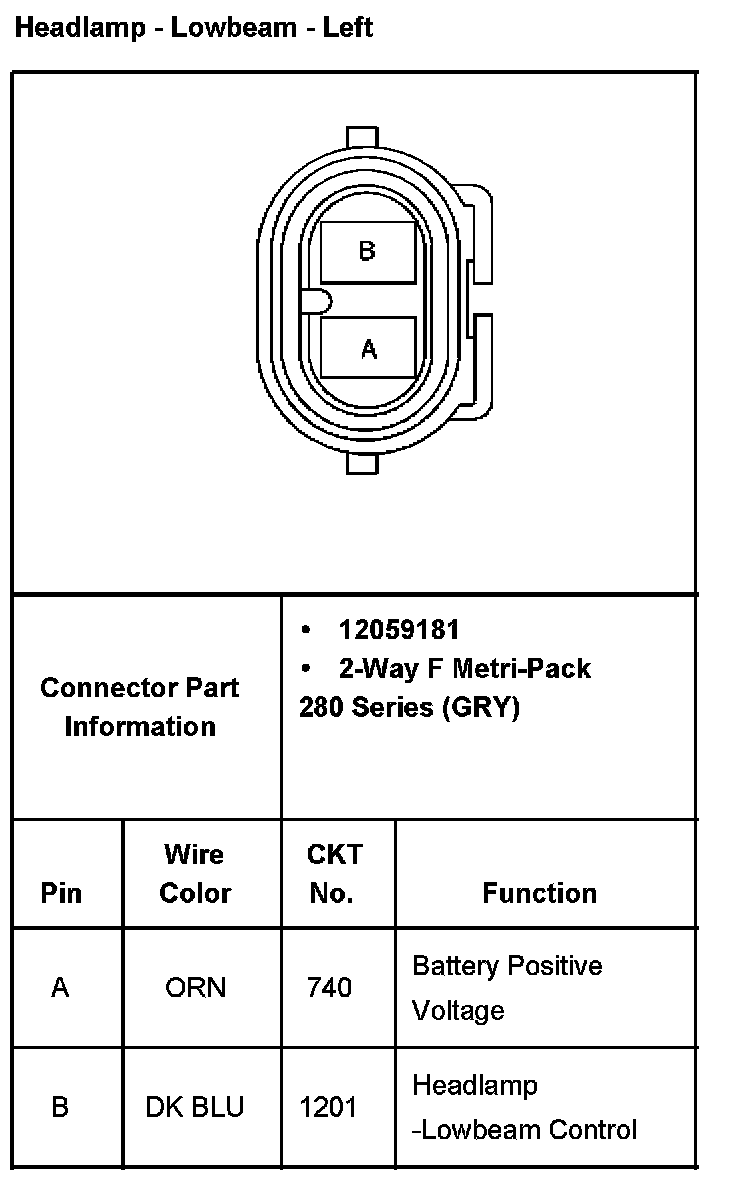

Headlamp - Lowbeam - Left:

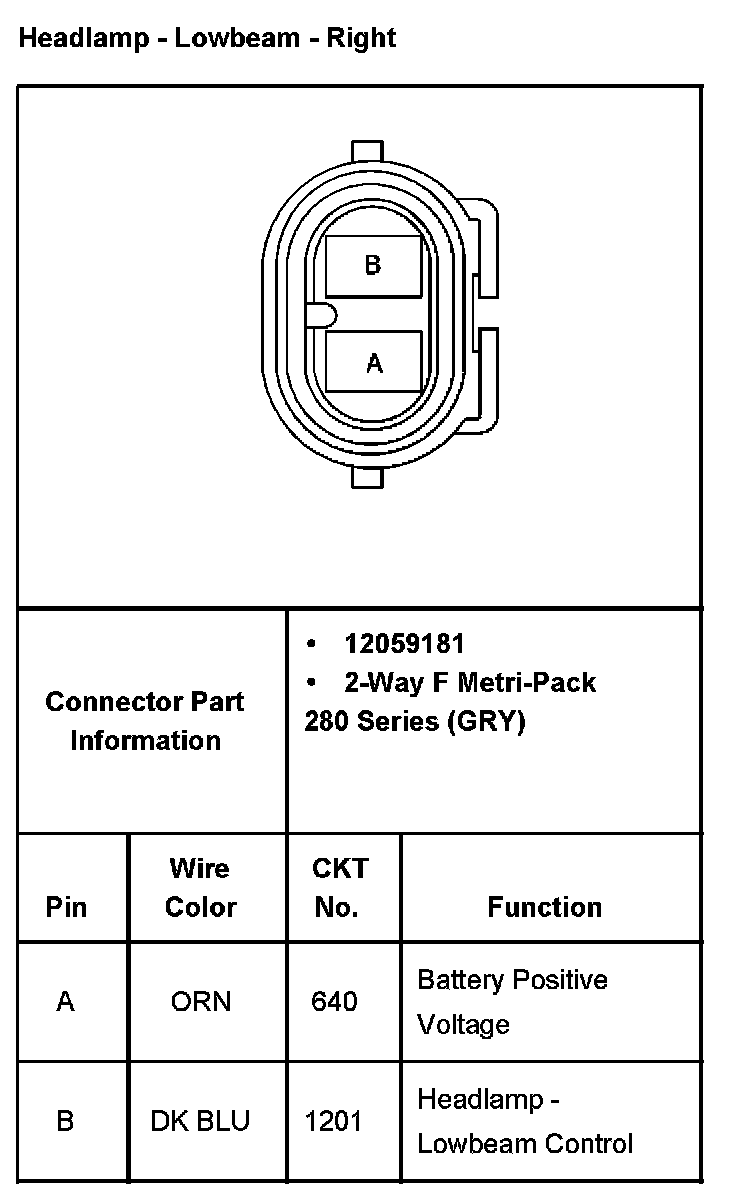

Headlamp - Lowbeam - Right:
