Turn Signal Lamp: Diagrams
Park/Turn Signal Lamp, LF:

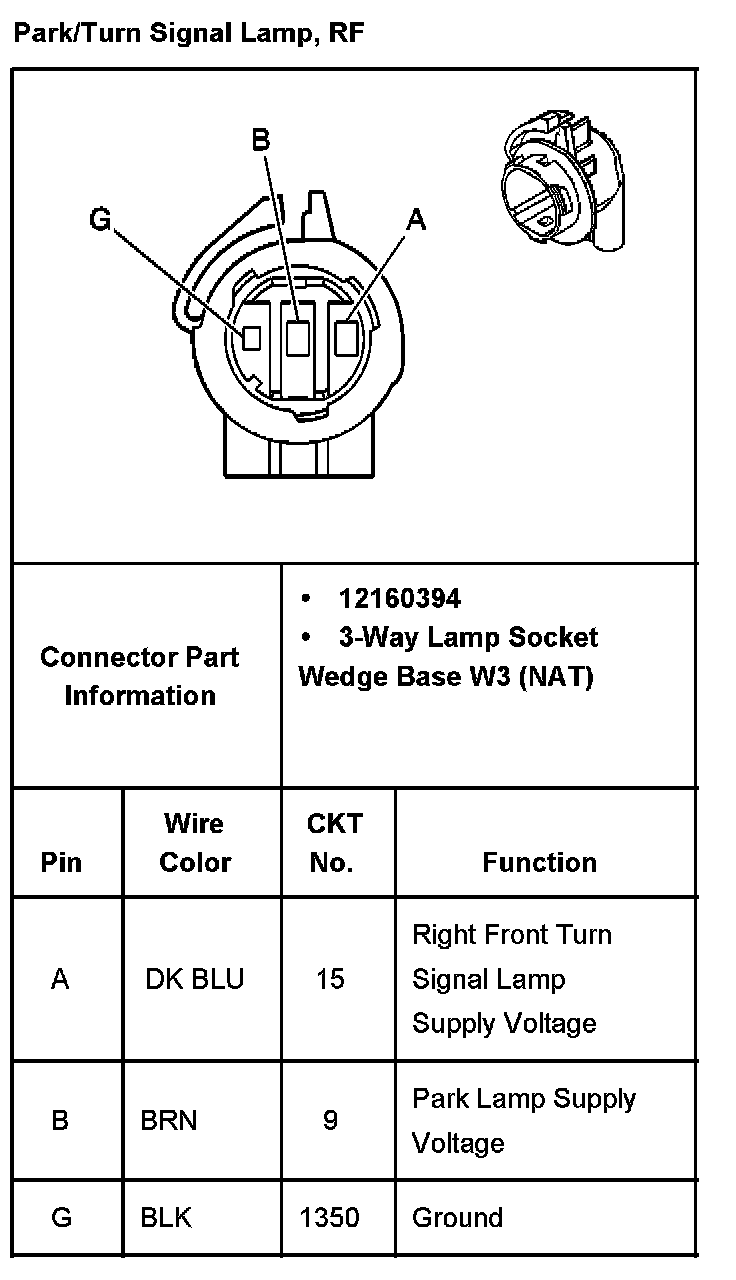

Park/Turn Signal Lamp, RF:

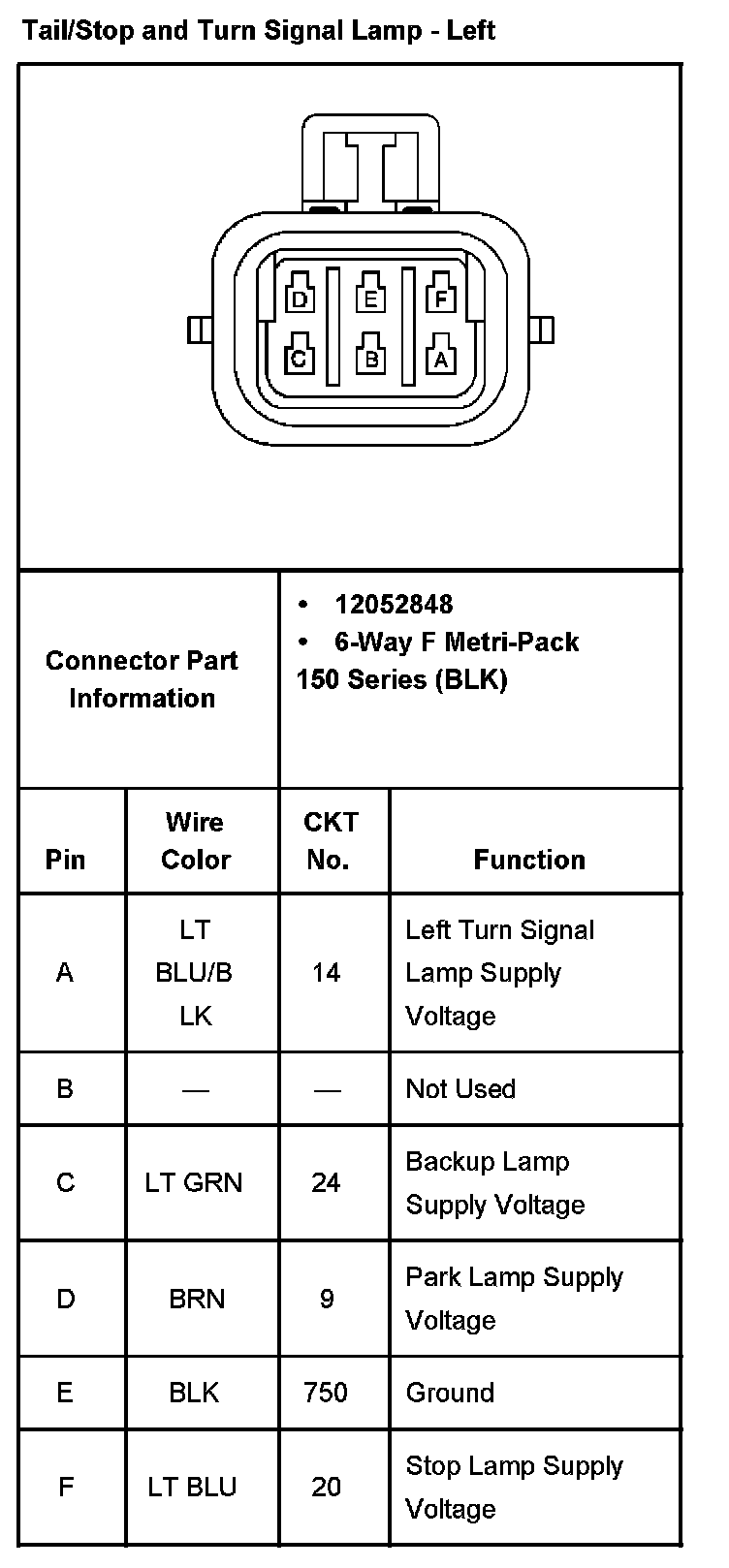

Tail/Stop And Turn Signal Lamp - Left:

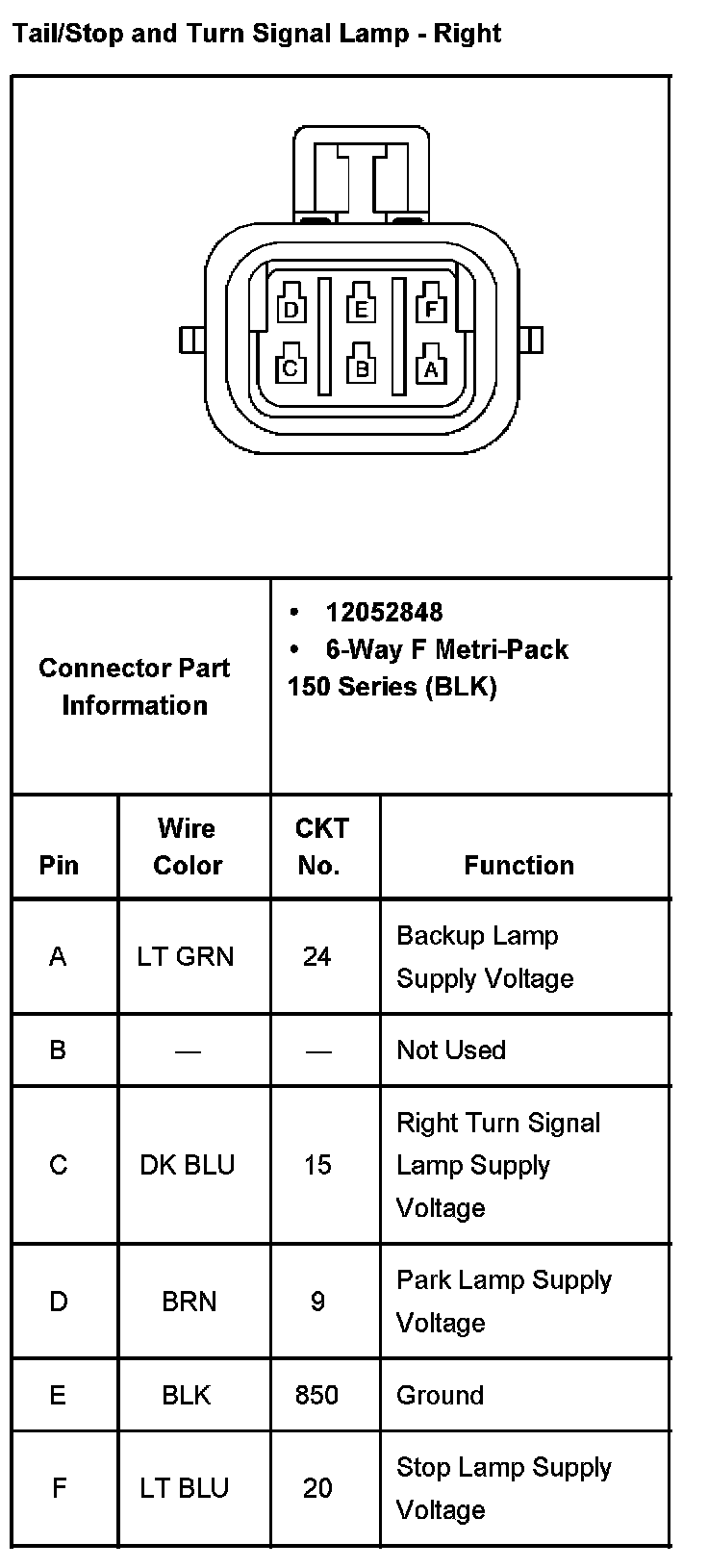

Tail/Stop And Turn Signal Lamp - Right:
