System Specifications

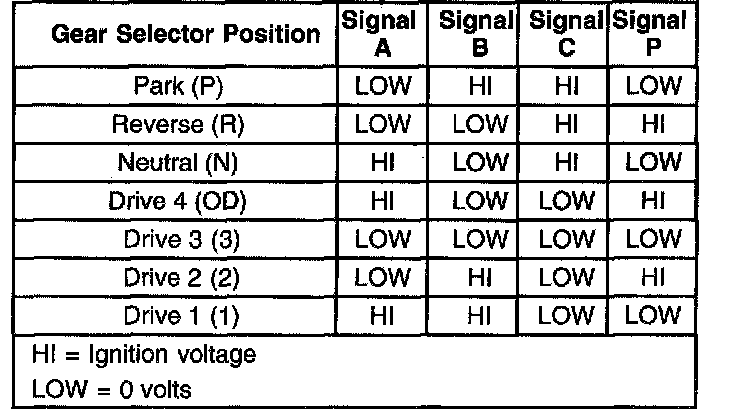

Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic:



Transmission Range Switch Logic:

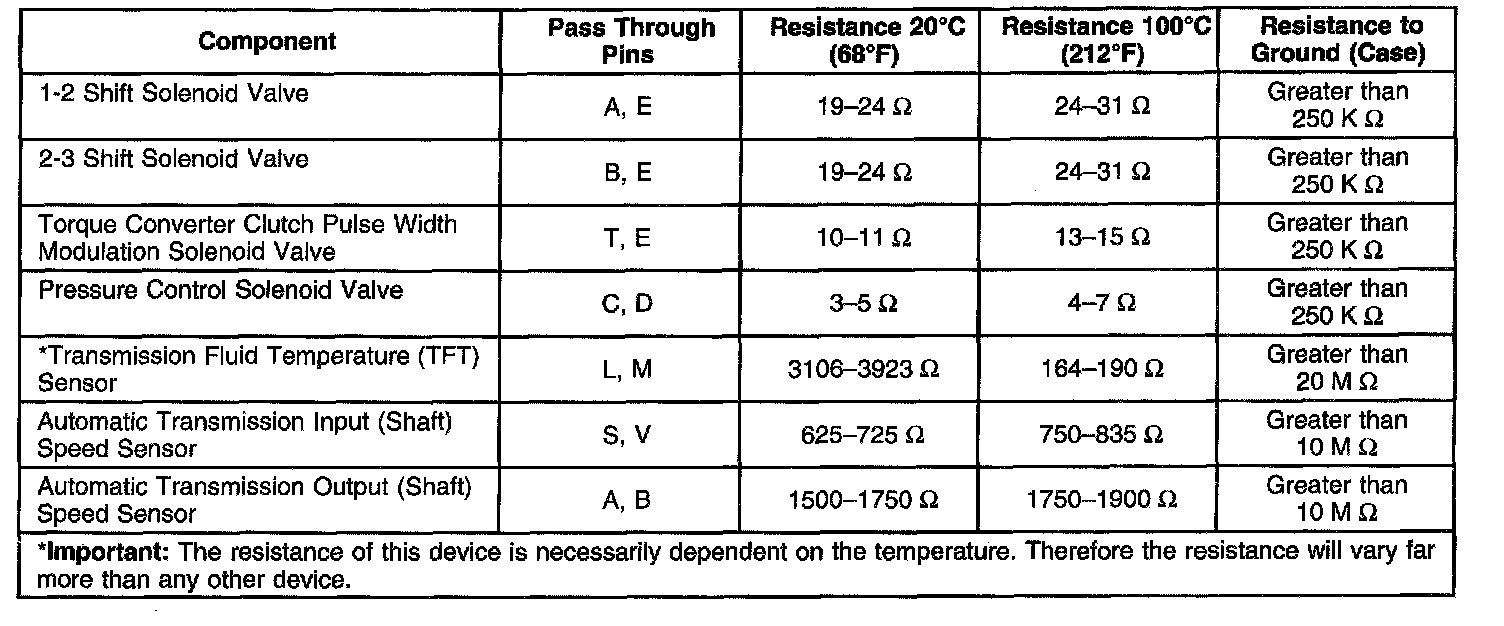

Component Resistance:
