B2618

DTC B2618

CIRCUIT DESCRIPTION
The body control module (BCM) controls the I/P courtesy lamps through the courtesy lamps supply voltage circuit. The BCM grounds the courtesy lamps low control circuit which completes the I/P courtesy lamps ground circuit, and the lights illuminate.

CONDITIONS FOR RUNNING THE DTC
The BCM must command the courtesy lamps feature ON.

CONDITIONS FOR SETTING THE DTC
- The BCM detects a high when the output should be low in the courtesy lamps supply voltage circuit.
- The condition above must be present for more than 0.3 seconds.

ACTION TAKEN WHEN THE DTC SETS
The BCM stores DTC B2618 in memory.

CONDITIONS FOR CLEARING THE DTC
- A current DTC B2618 will clear if the short to battery in the courtesy lamps supply voltage circuit is no longer detected by the BCM.
- A history DTC B2618 will clear after 100 consecutive ignition cycles if the condition for the malfunction is no longer present and no other BCM faults are detected.

DIAGNOSTIC AIDS
- If the DTC B2618 is a history DTC, the fault may be intermittent.
- The following conditions may cause an intermittent malfunction to occur:
- An intermittent short to battery in the courtesy lamps supply voltage circuit.
- Either I/P courtesy lamp is intermittently shorted to battery internally.
- The BCM is intermittently shorted to battery internally.

TEST

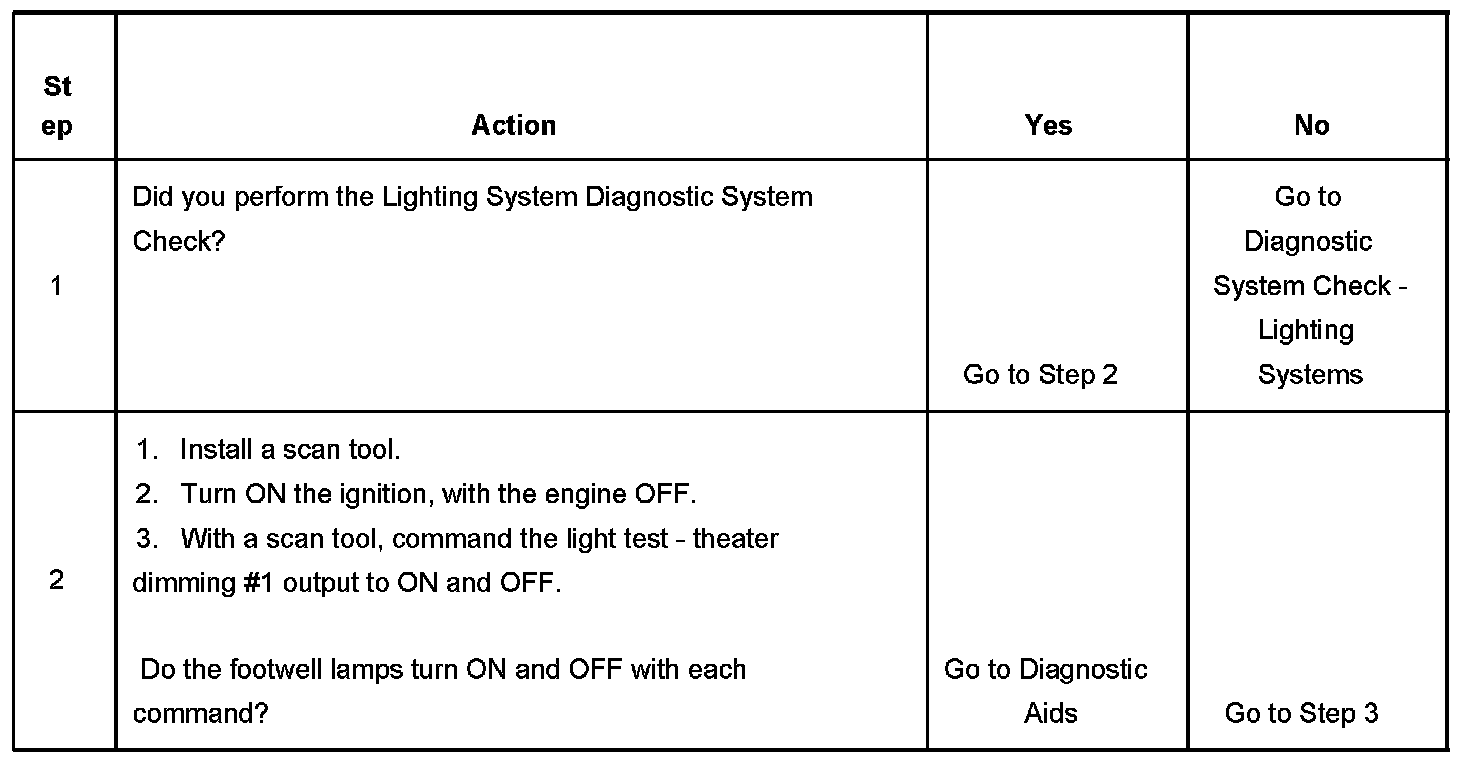

Steps 1-2:

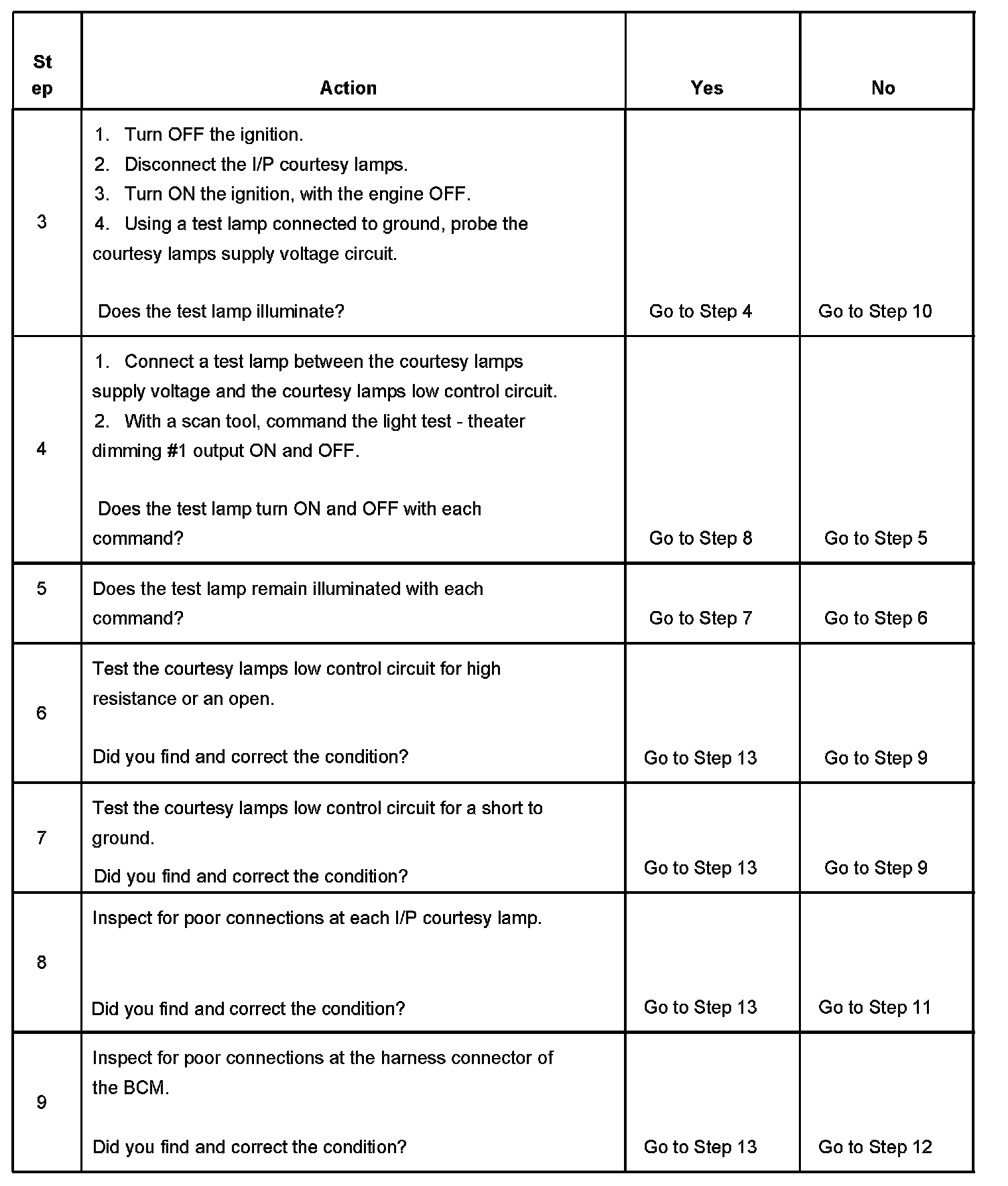

Steps 3-9:

Steps 10-13:
