Inline Connector C106

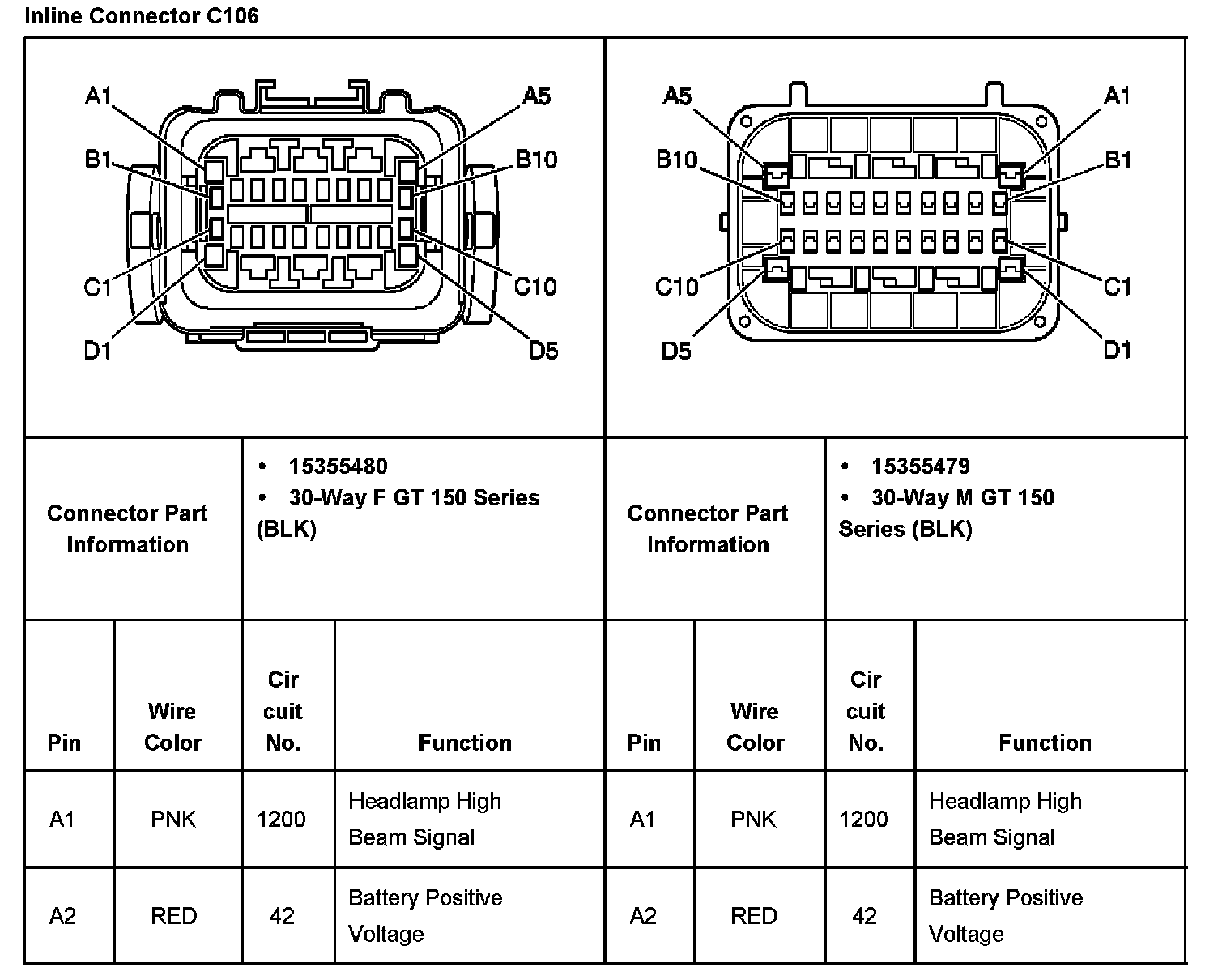

Inline Connector C106

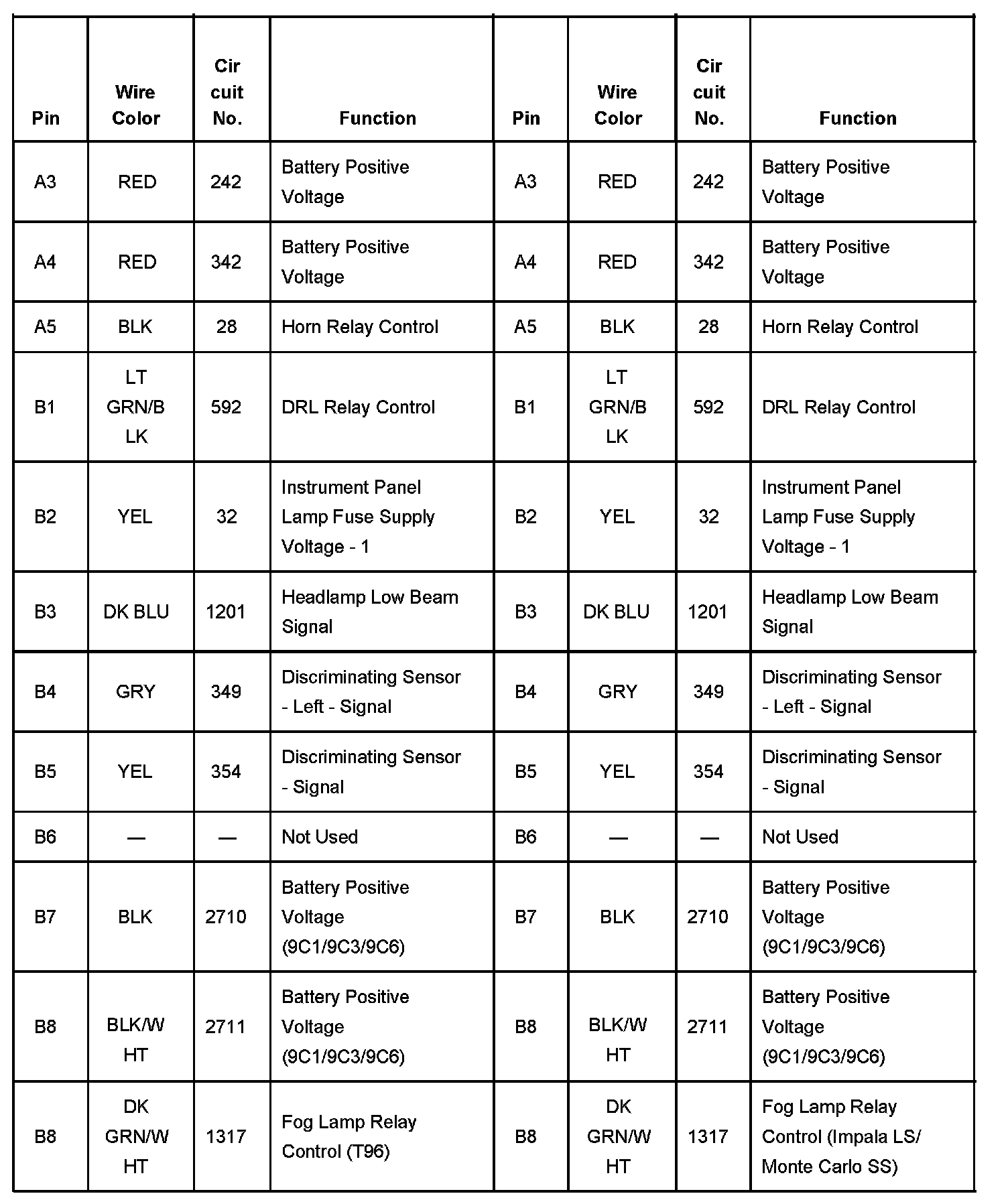

Inline Connector C106 Part 1:

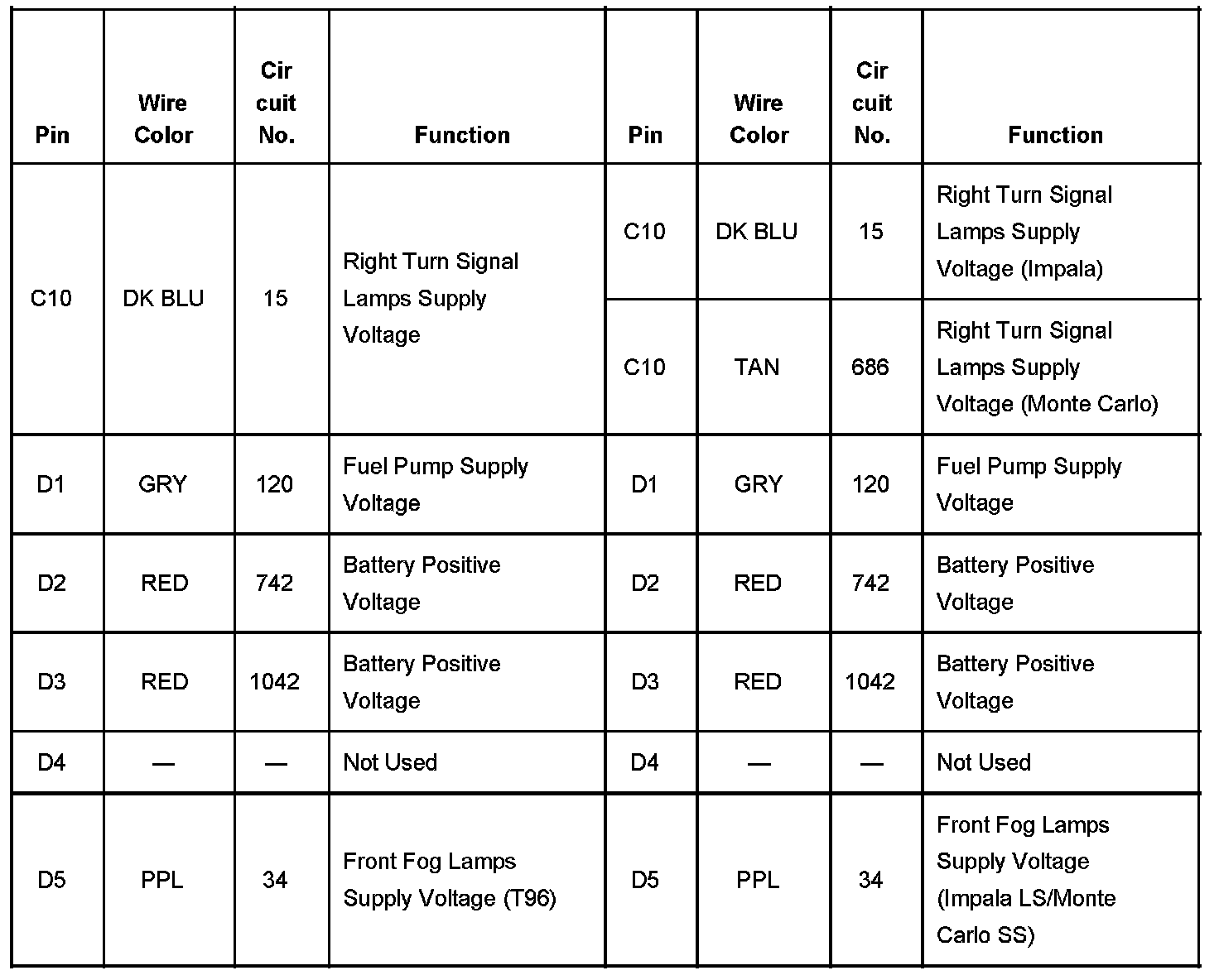

Inline Connector C106 Part 2:
Inline Connector C106 Part 3:
Inline Connector C106 Part 4:
