Inline Connector C113

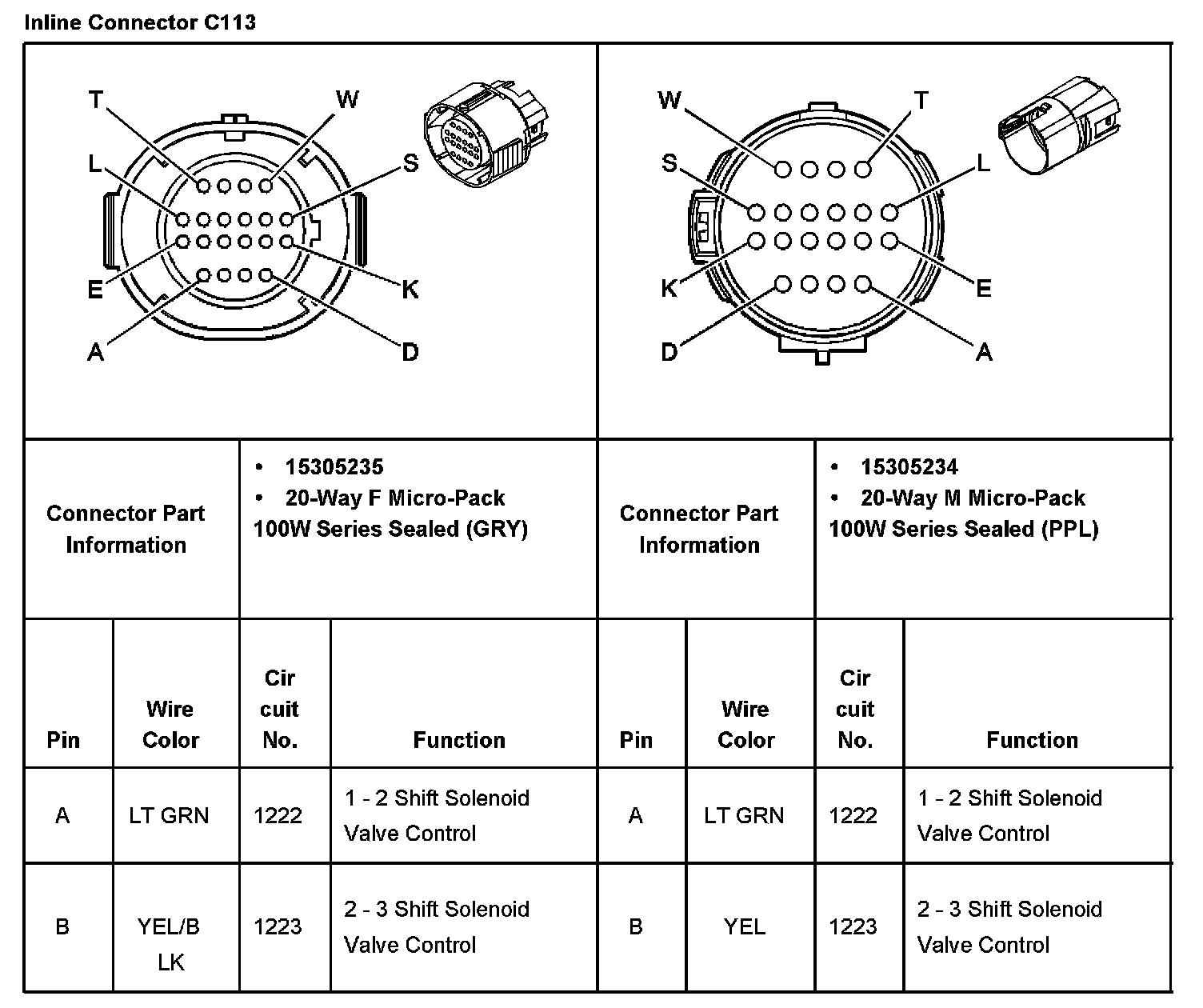

Inline Connector C113 Part 1:

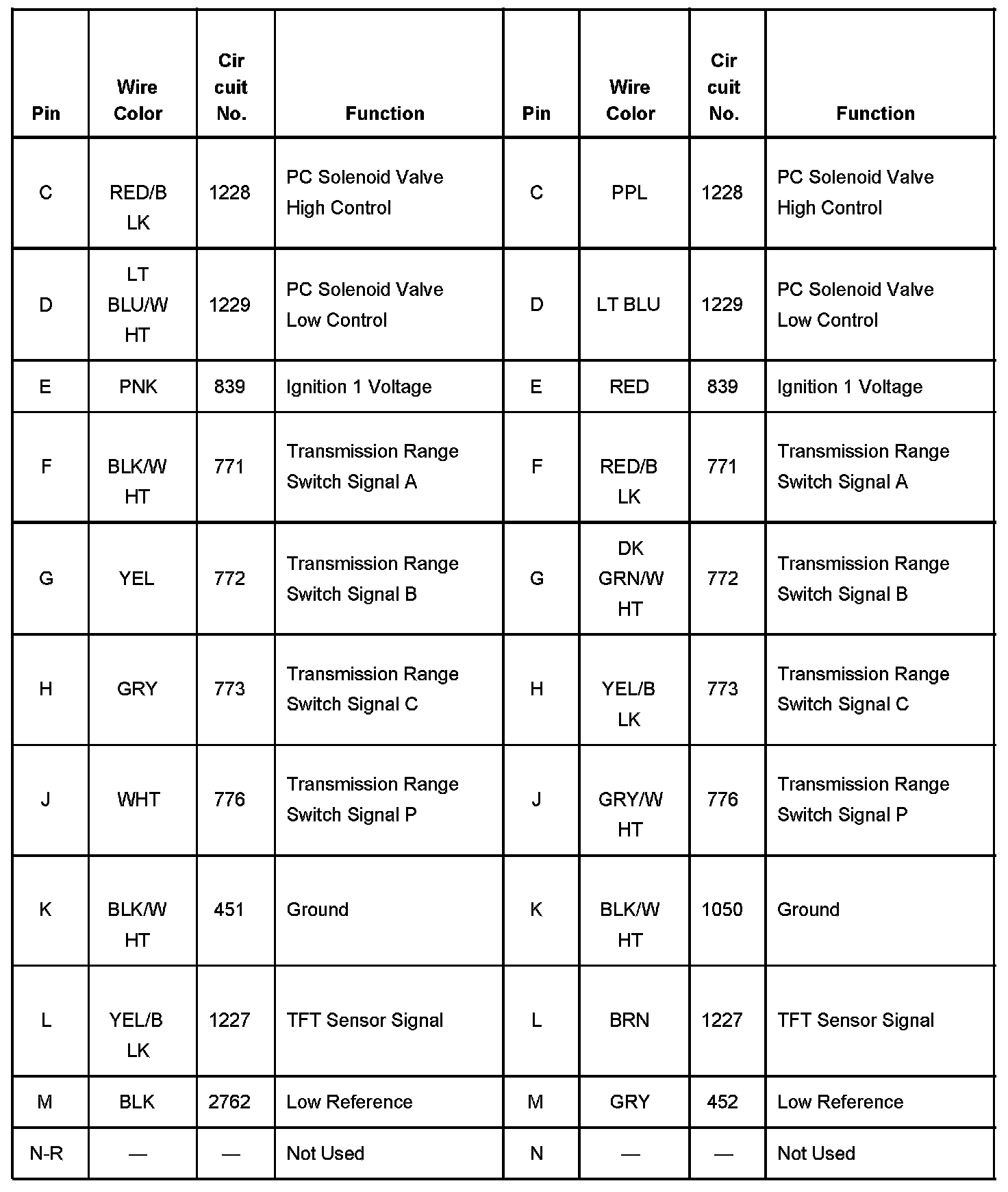

Inline Connector C113 Part 2:

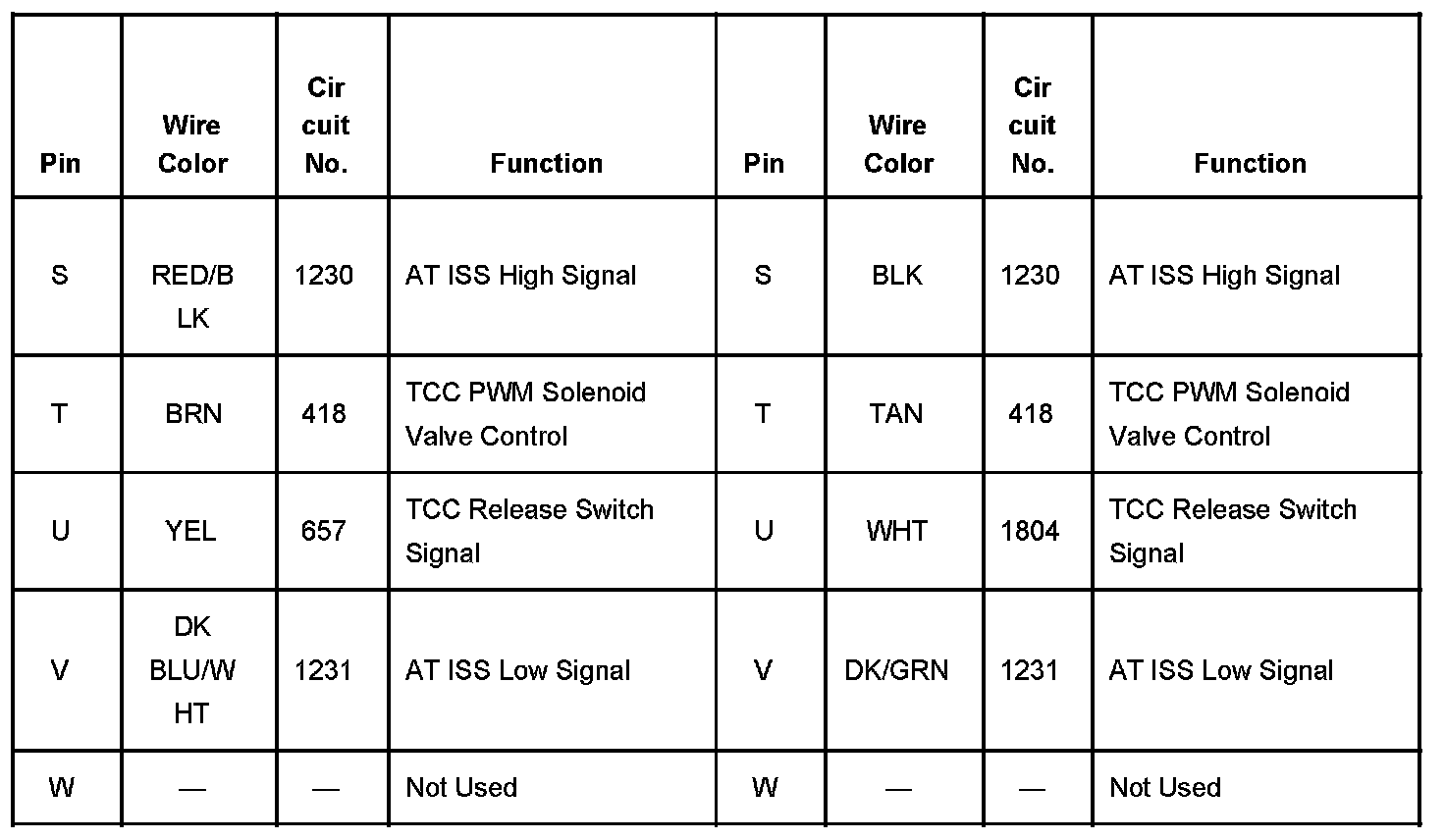

Inline Connector C113 Part 3:
