Home >> Chevrolet >> 2003 >> Monte Carlo V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> C201-C299 >> Inline Connector C218

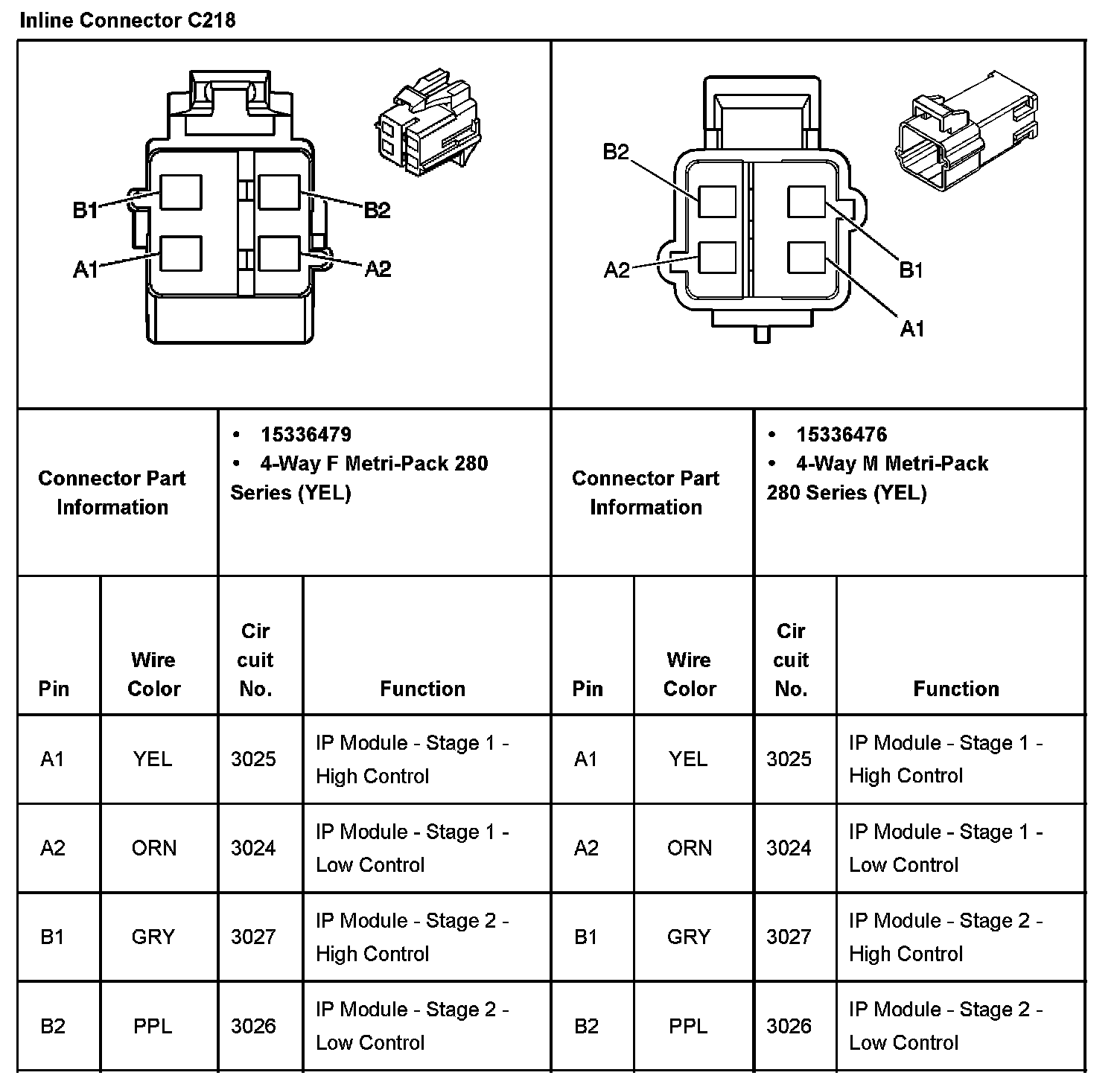

Inline Connector C218

Inline Connector C218:
