Home >> Chevrolet >> 2003 >> Monte Carlo V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> C201-C299 >> Inline Connector C255A

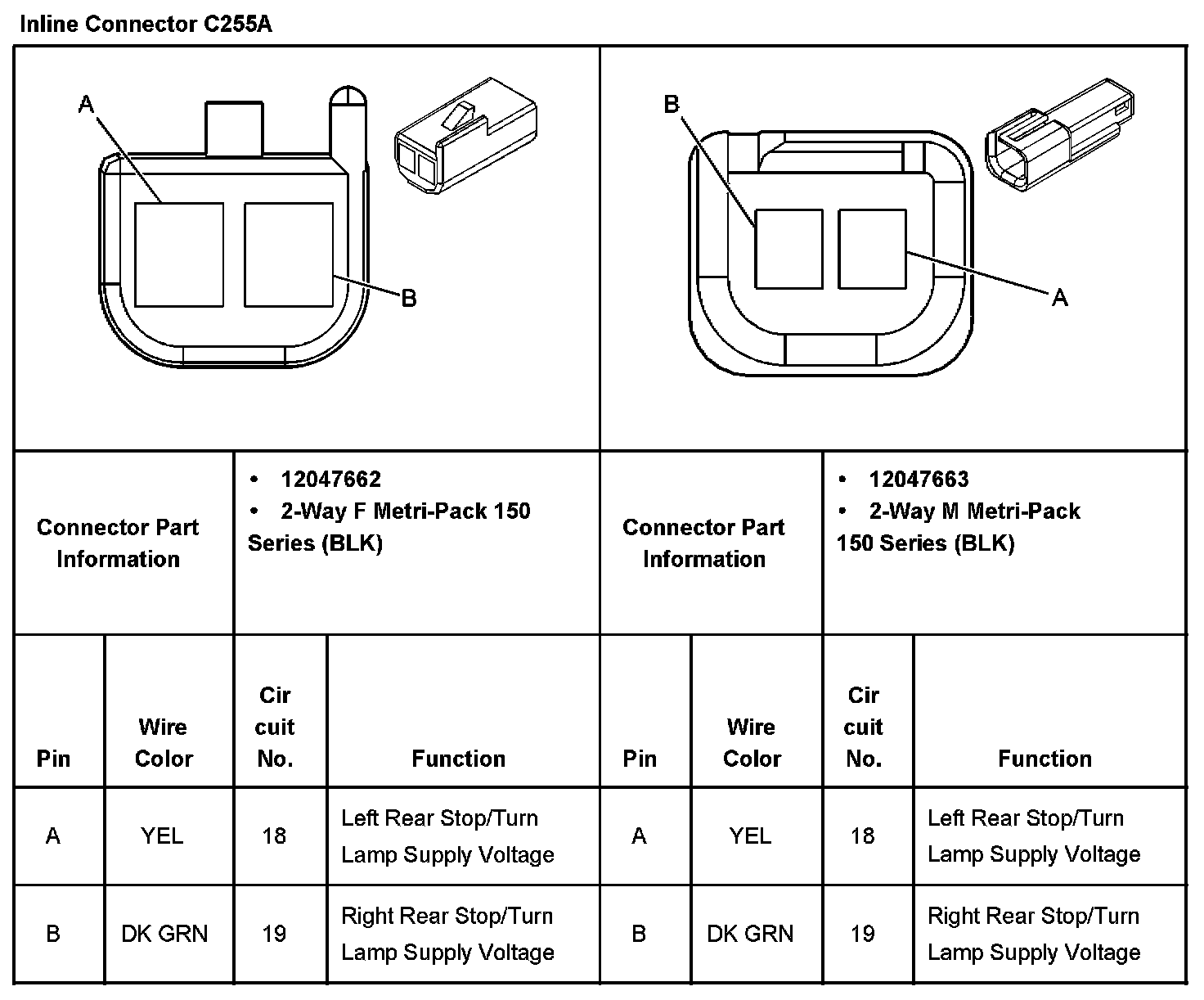

Inline Connector C255A

Inline Connector C255A:
