Inline Connector C301
Inline Connector C301

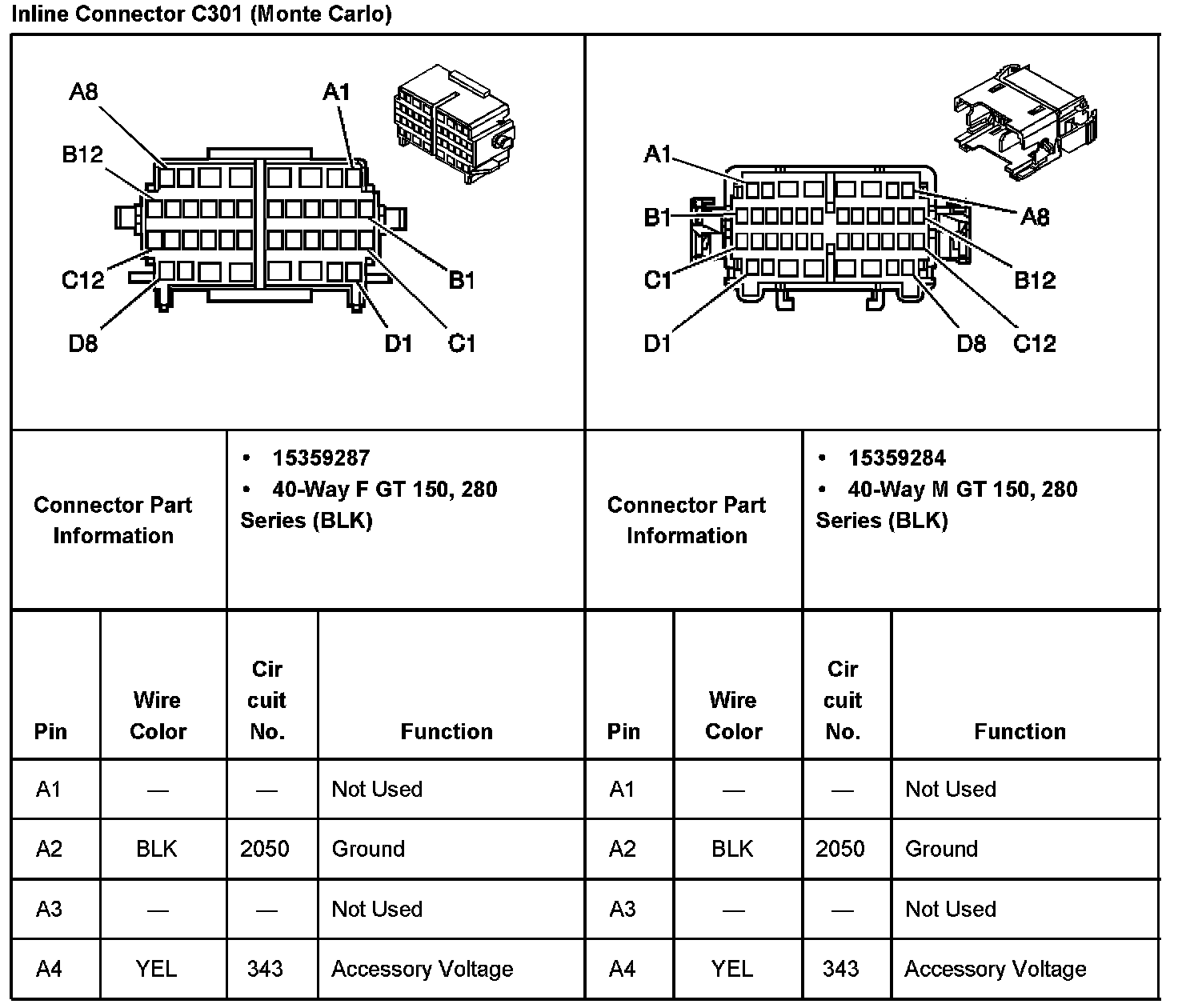

Inline Connector C301 Part 1:

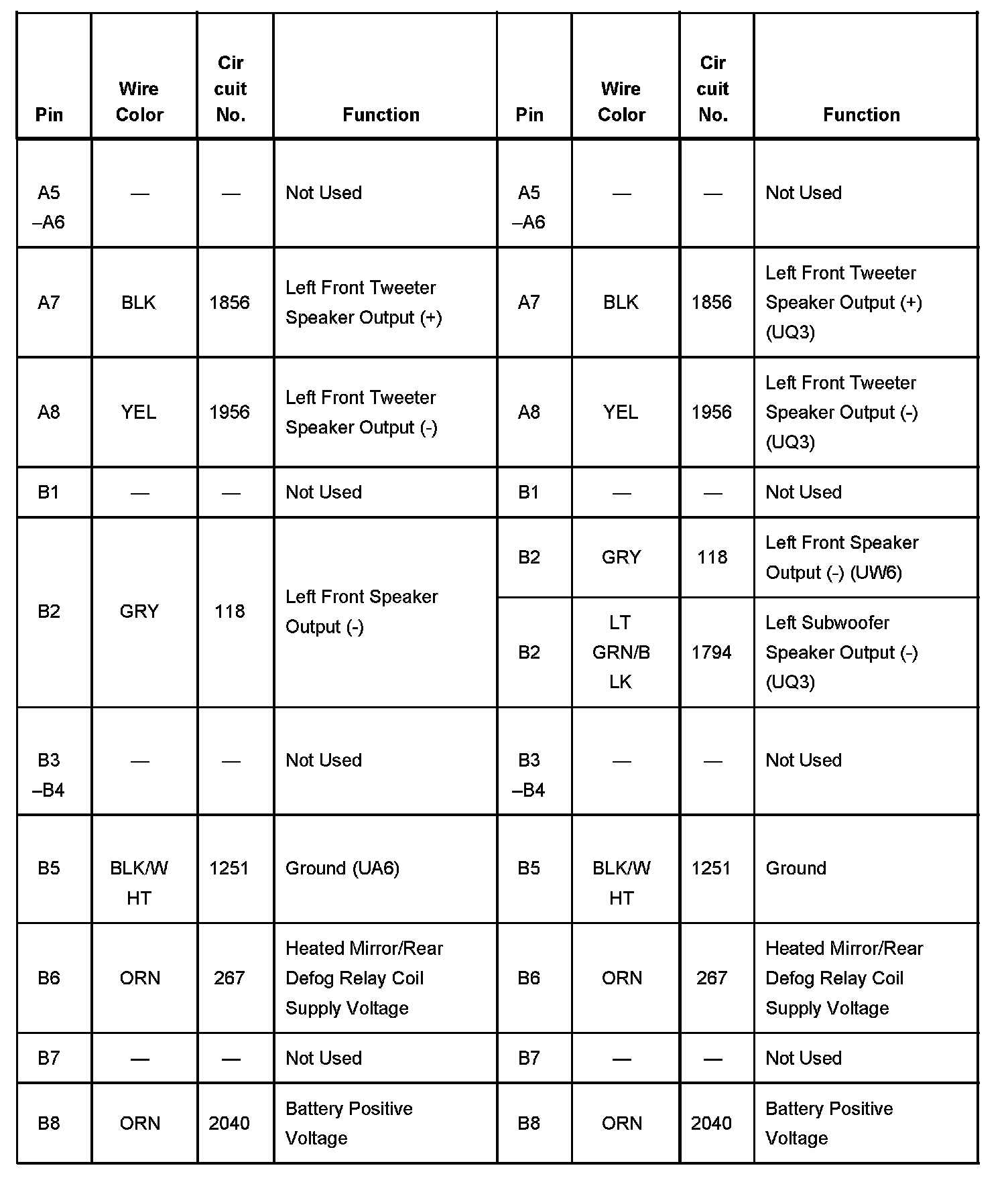

Inline Connector C301 Part 2:

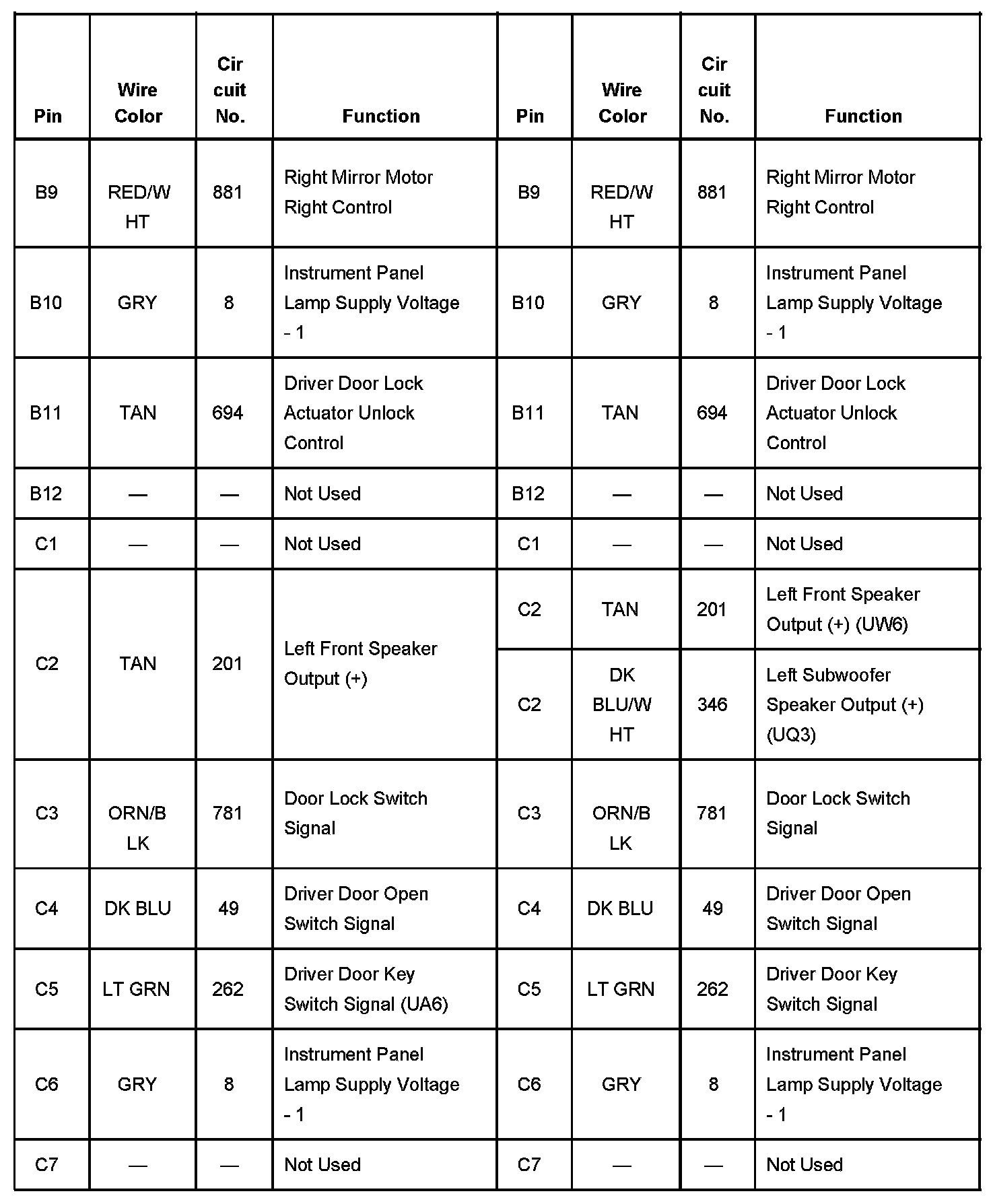

Inline Connector C301 Part 3:

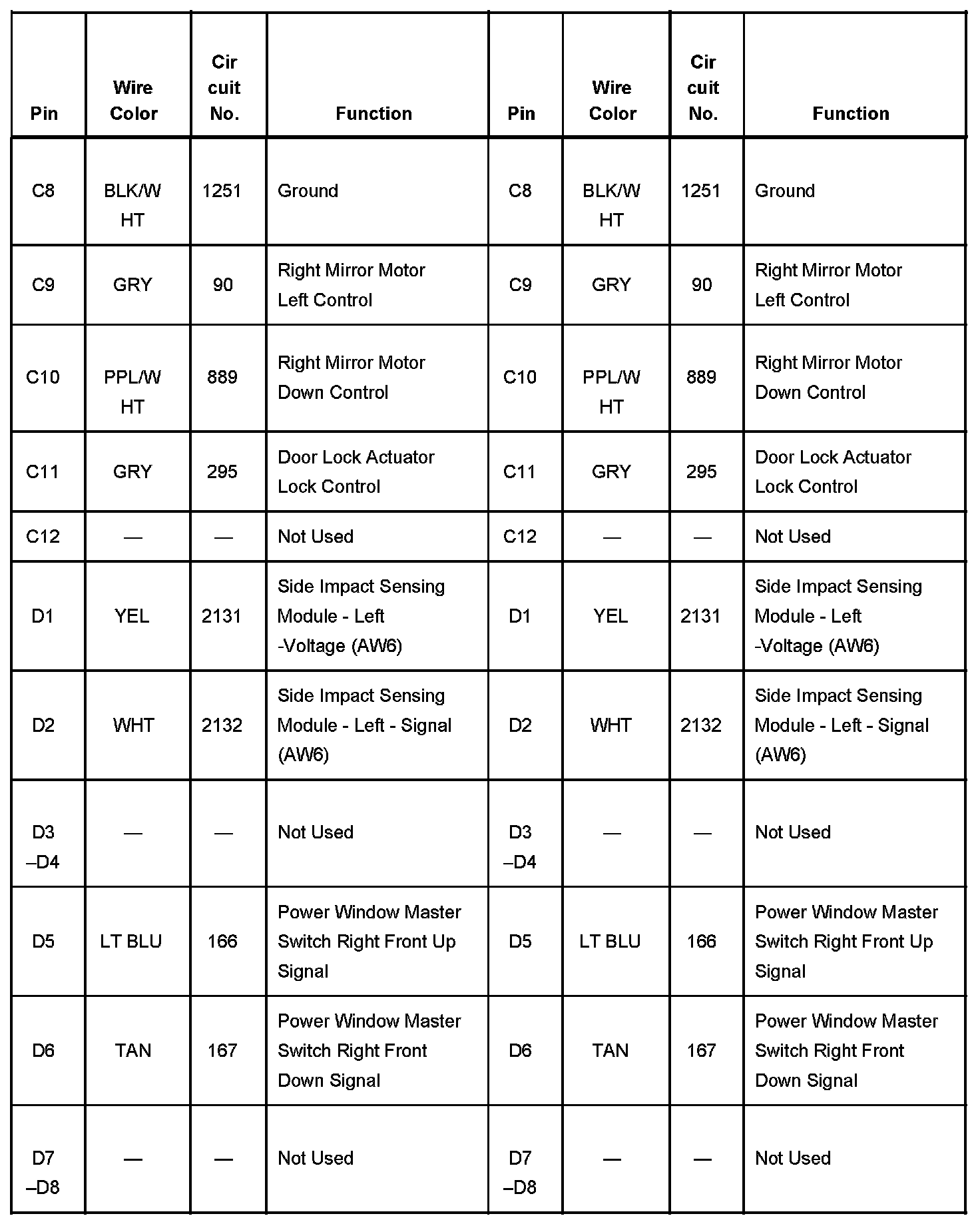

Inline Connector C301 Part 4:
