Home >> Chevrolet >> 2003 >> Monte Carlo V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> C301-C392 >> Inline Connector C306

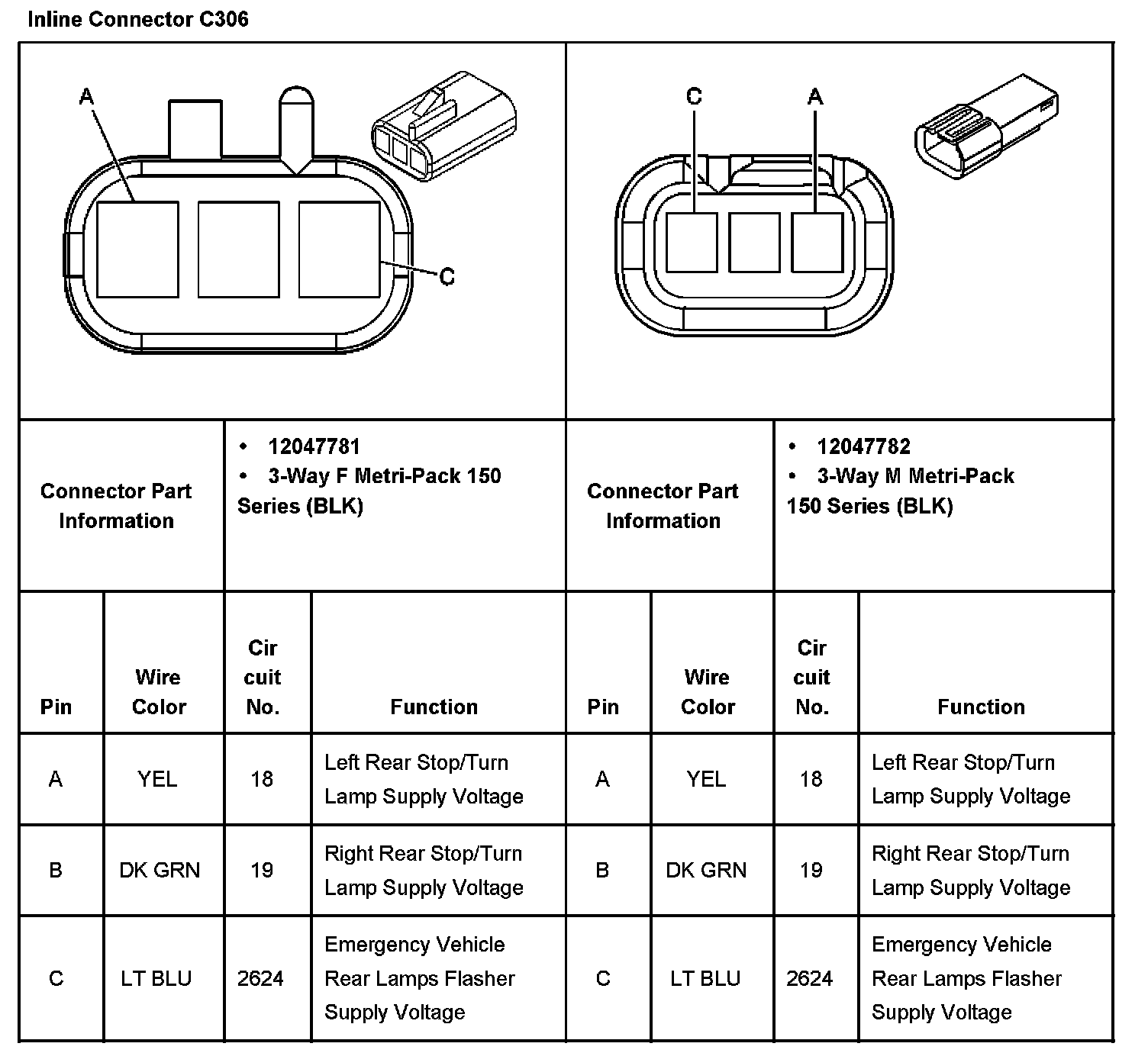

Inline Connector C306

Inline Connector C306:
