Home
>>
Chevrolet
>>
2003
>>
Monte Carlo V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Driver/Vehicle Information Display
>>
Driver Information Center (DIC), C2 (With RPO Code CF5)
Driver Information Center (DIC), C2 (With RPO Code CF5)

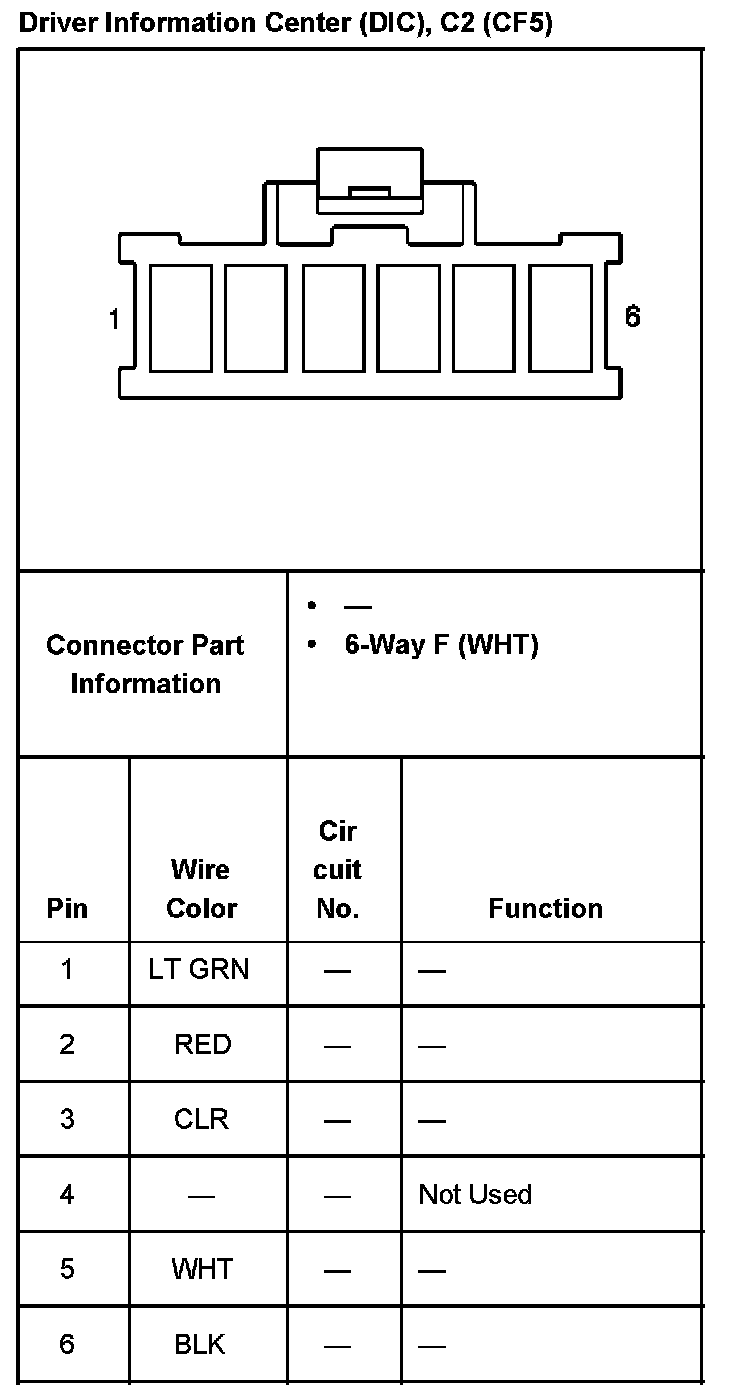

Driver Information Center (DIC), C2 (With RPO Code CF5):
