Home >> Chevrolet >> 2003 >> Monte Carlo V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Trunk Lamp

Trunk Lamp

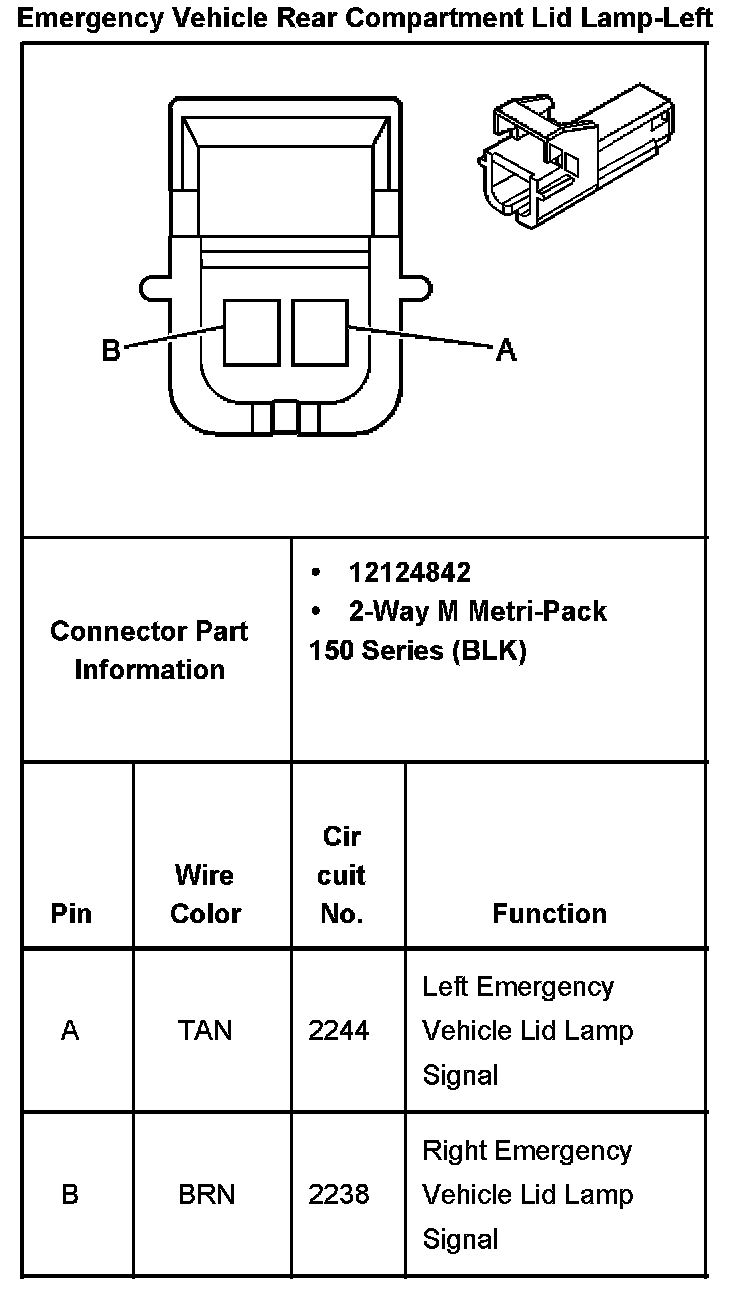

Emergency Vehicle Rear Compartment Lid Lamp-Left:

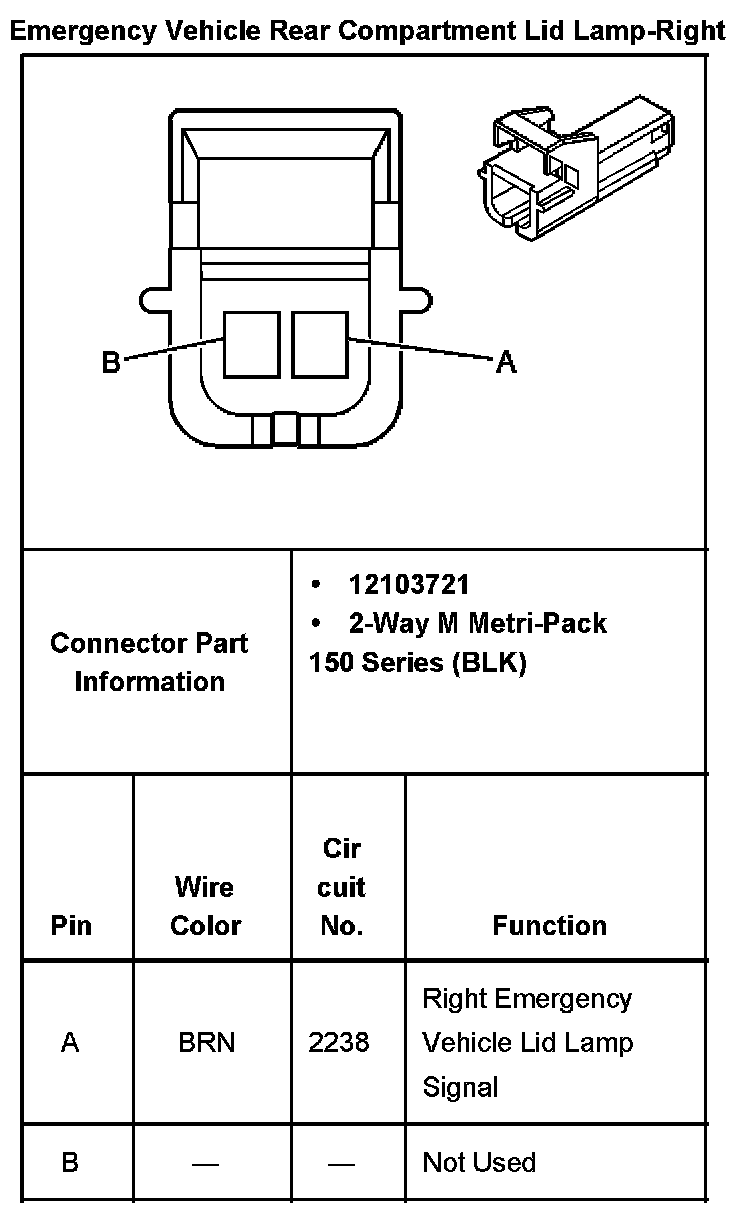

Emergency Vehicle Rear Compartment Lid Lamp-Right:
