Home >> Chevrolet >> 2003 >> Monte Carlo V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Locks >> System Diagram

System Diagram

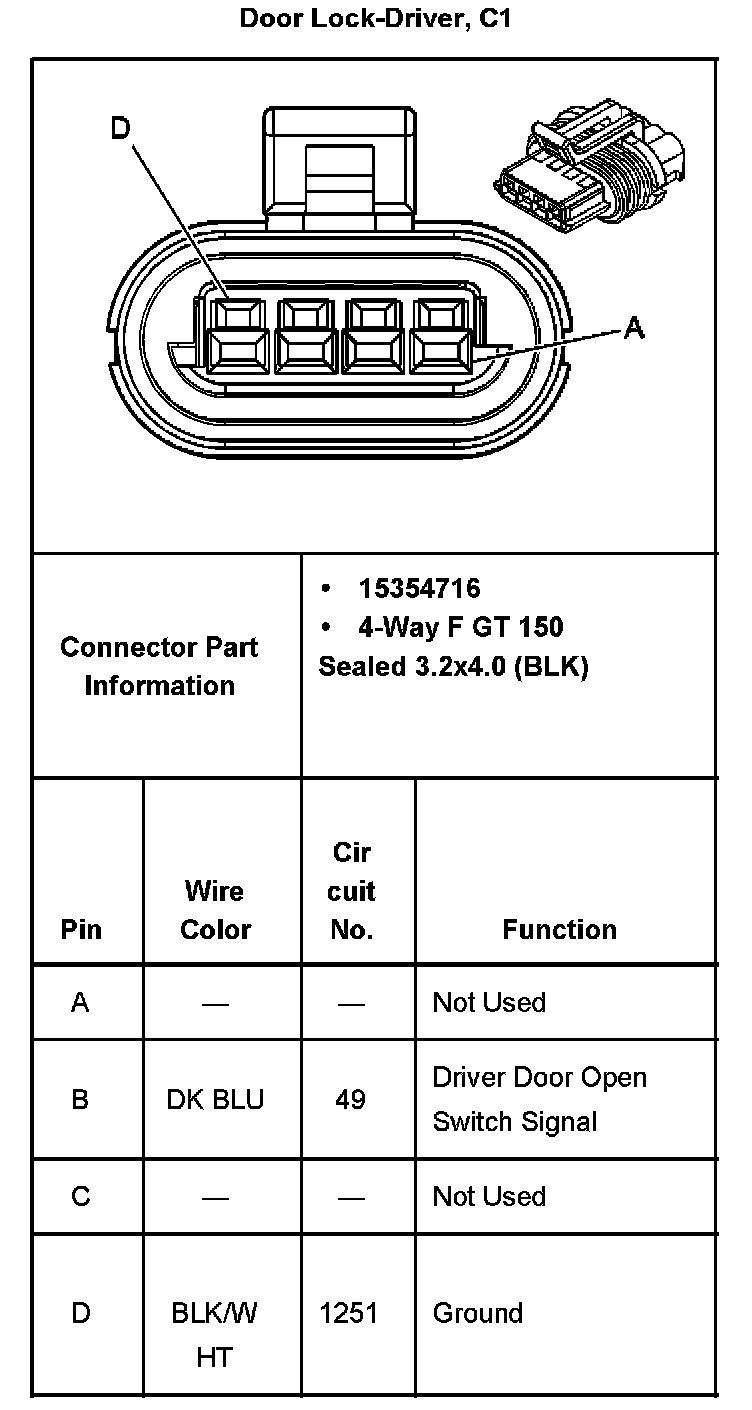

Door Lock-Driver, C1:




Door Lock-Driver, C2:




Door Lock-Front Passenger, C1:




Door Lock-Front Passenger, C2:




Door Lock-LR, C1:

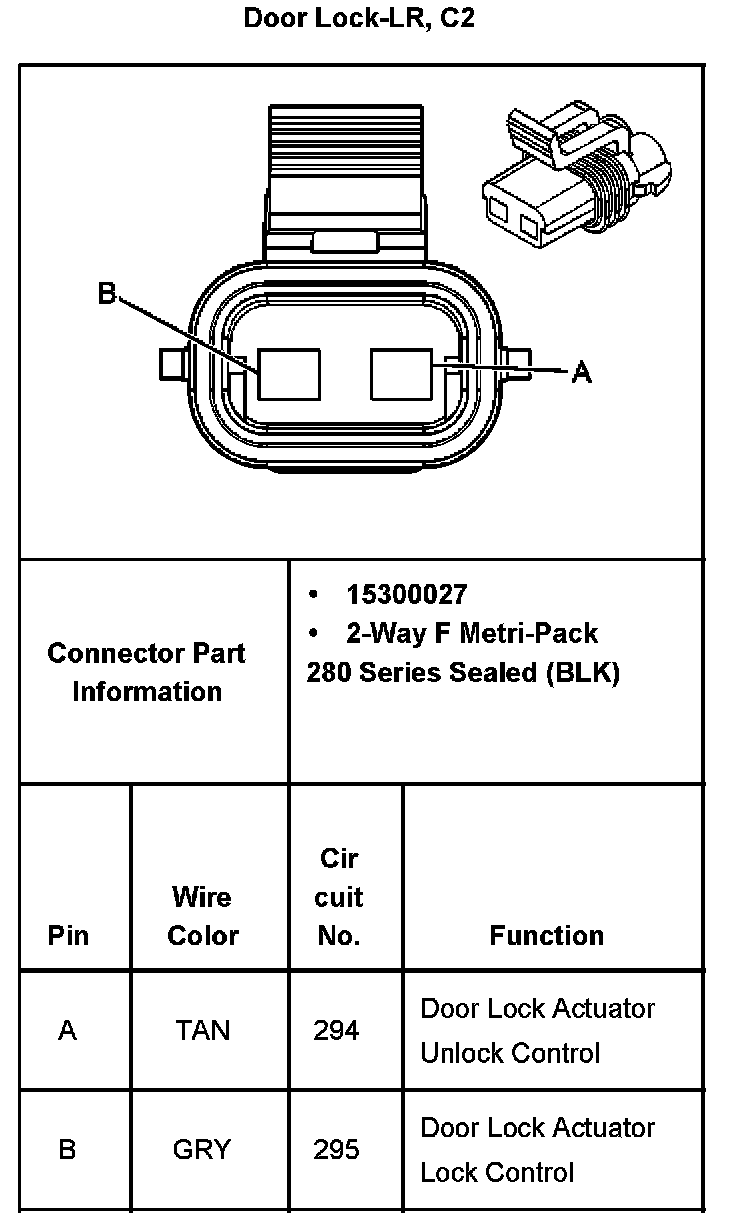

Door Lock-LR, C2:




Door Lock-RR, C1:




Door Lock-RR, C2:
