Master Connector List
Master Connector List

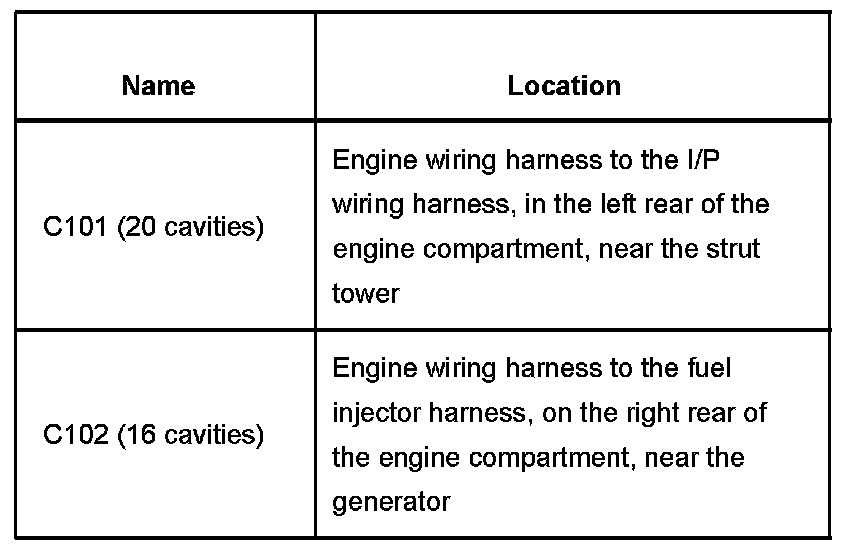

C101 - C102:

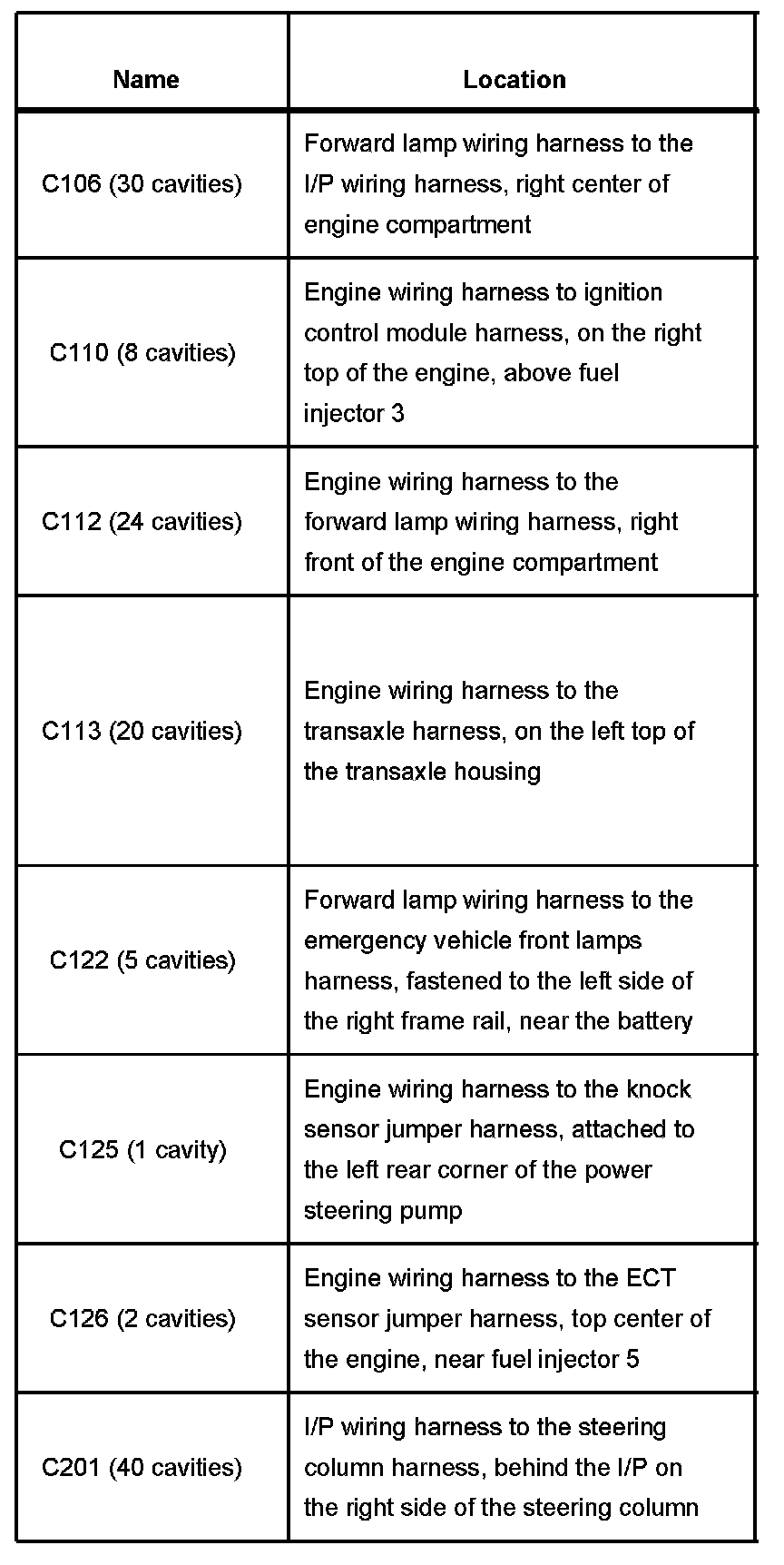

C106 - C201:

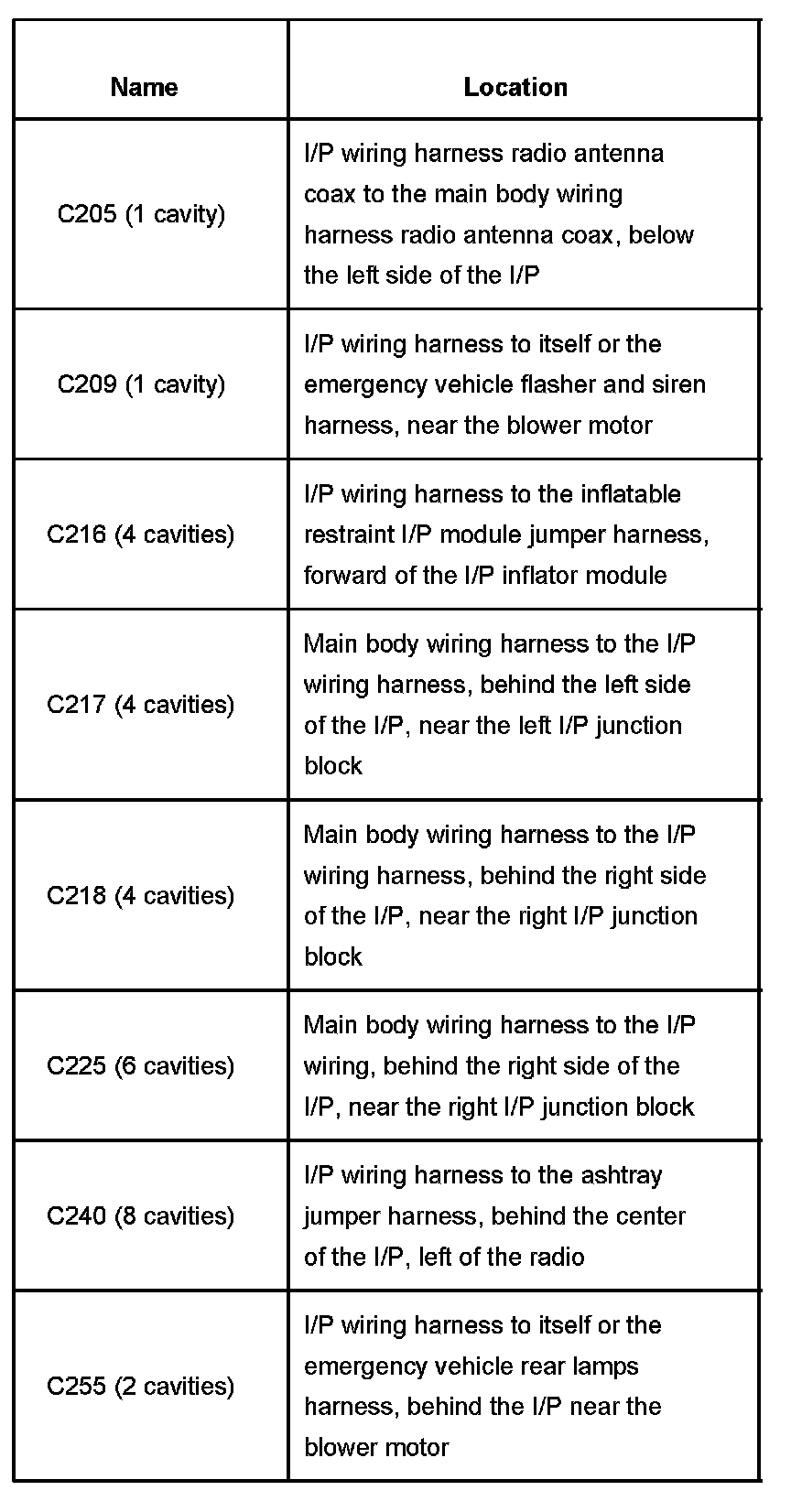

C205 - C255:
C297 - C312:

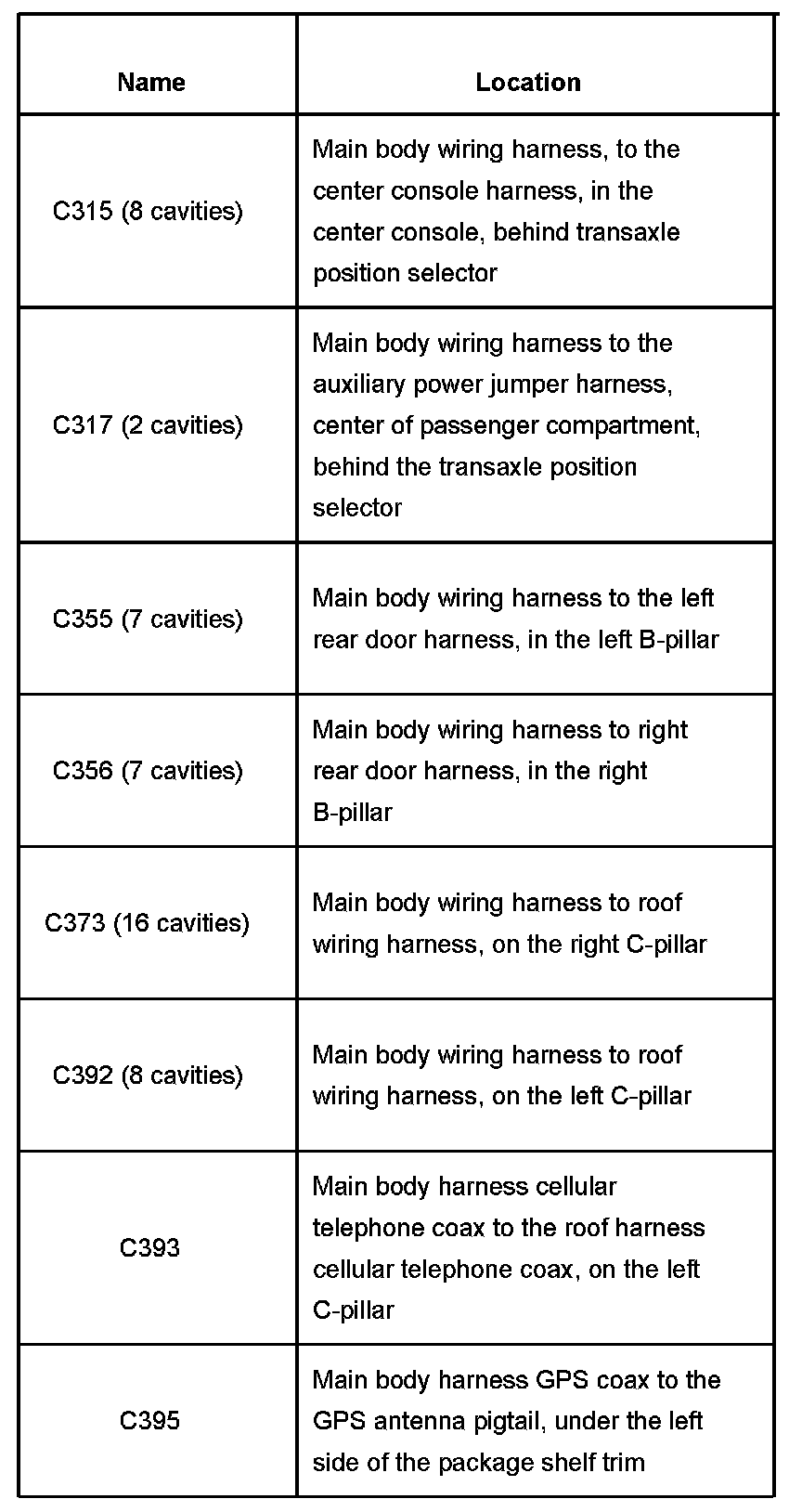

C315 - C395:

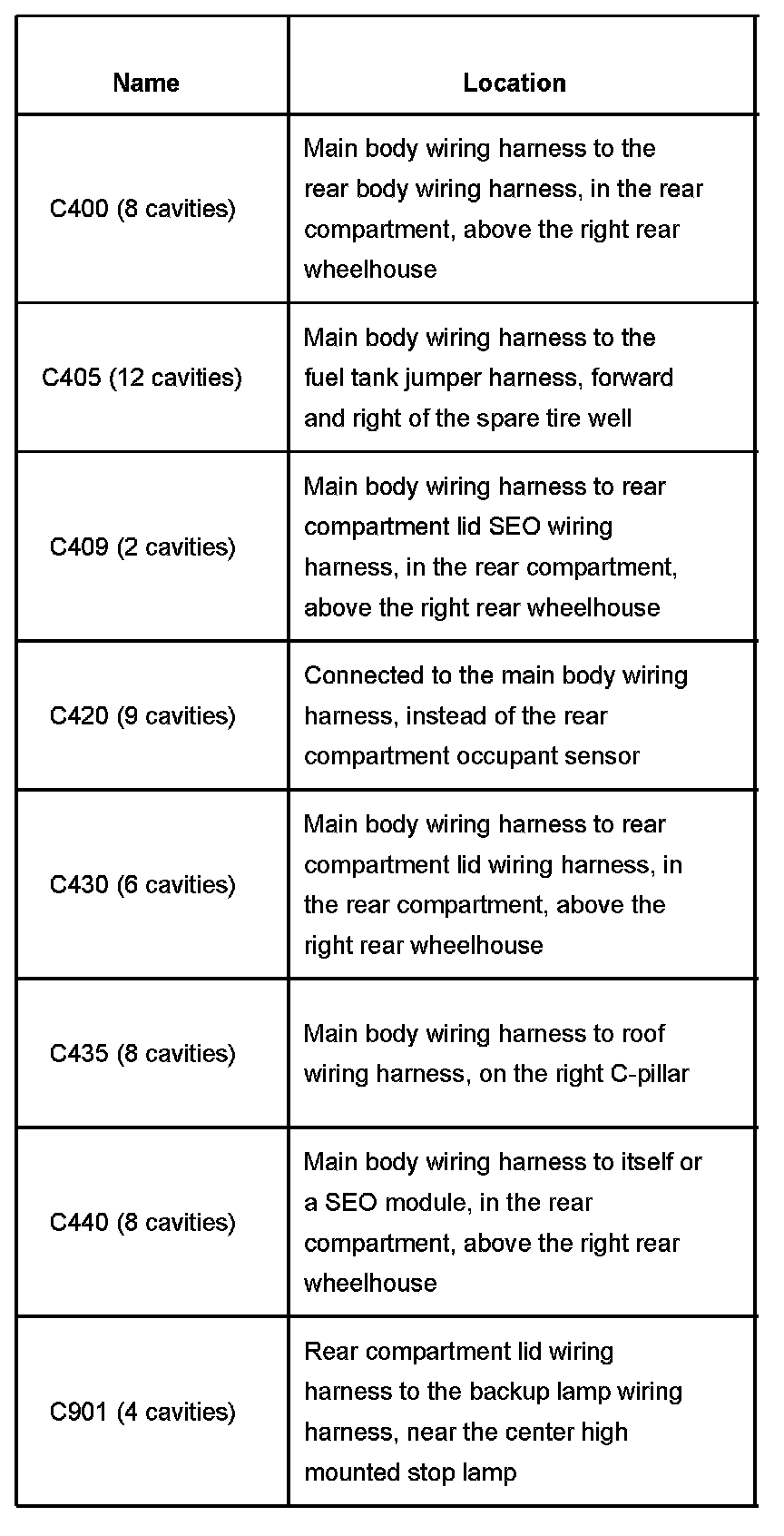

C400 - C901:
